Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

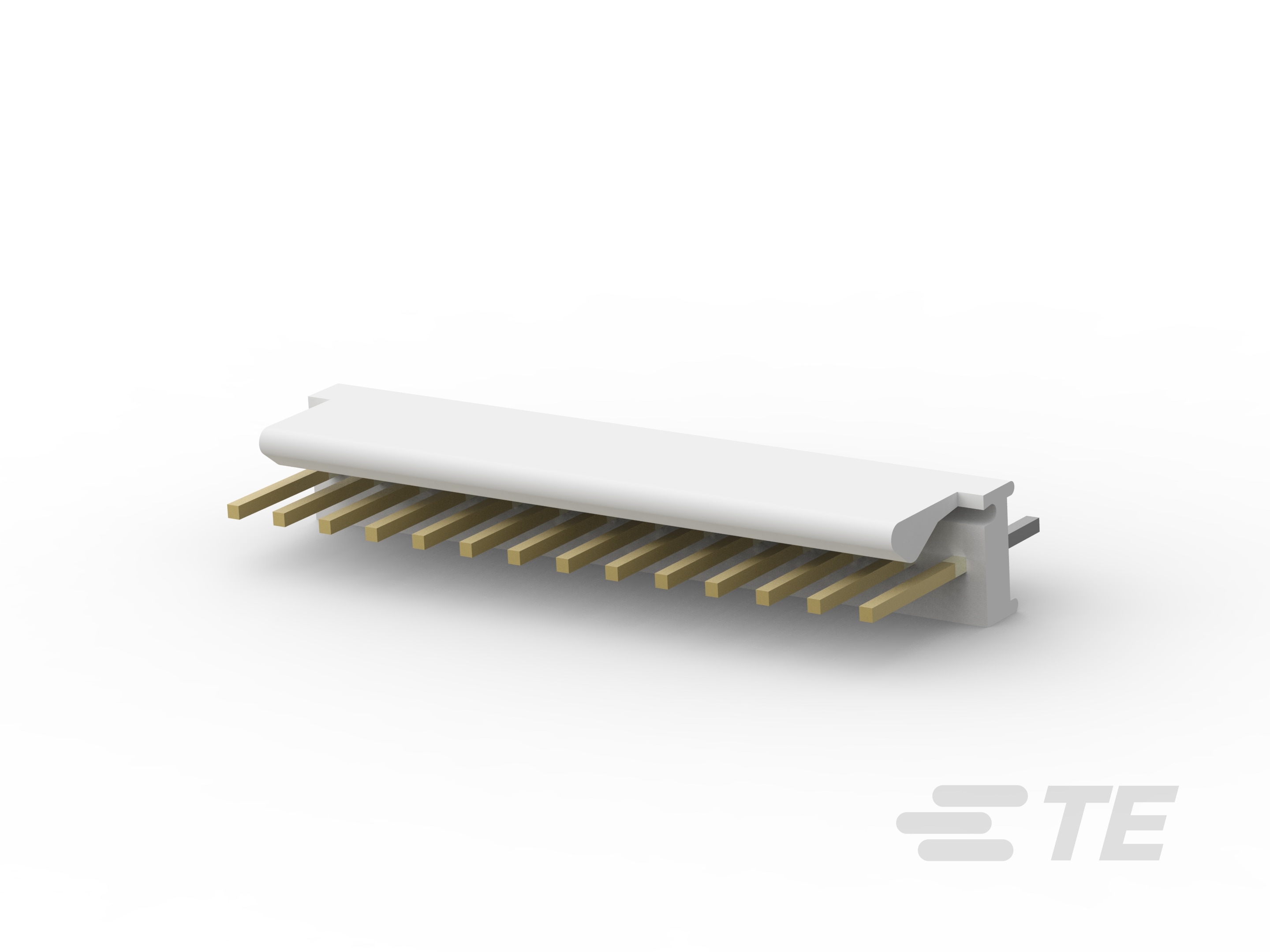

• Housing Material : Polyester - GF

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Contact Mating Area Plating Material Finish : Bright

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Mating Area Length : 7.49 mm [ .295 in ]

• Contact Layout : Inline

• Contact Shape & Form : Square

• PCB Contact Termination Area Plating Material Thickness : 3.81 – 8.89 µm [ 150 – 350 µin ]

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Mating Area Plating Material Thickness : .38 µm [ 15 µin ]

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold

• Contact Type : Pin

• Contact Current Rating (Max) (A): 5

• Square Termination Post & Tail Dimension : .64 mm [ .025 in ]

• Termination Post & Tail Length : 3.56 mm [ .14 in ]

• Termination Method to PCB : Through Hole - Solder

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mating Retention Type : Friction Lock

• Panel Mount Feature : Without

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment : With

• Compatible With Approved Standards Products : UL E28476, CSA LR7189

• Compatible With Agency/Standards Products : UL, CSA

• UL Flammability Rating : UL 94V-0

• Packaging Quantity : 1

• Packaging Method : Package

• Connector Length : 38.1 mm [ 1.5 in ]

• Connector Height : 7.87 mm [ .31 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Operating Voltage (VAC): 250

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Partially Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Mount Orientation : Vertical

• Number of Positions : 14

• Number of Rows : 1

• Primary Product Color : Natural

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Signal
