Please Note: Use the Product Drawing for all design activity.

• Shape Description : Circular/Oval

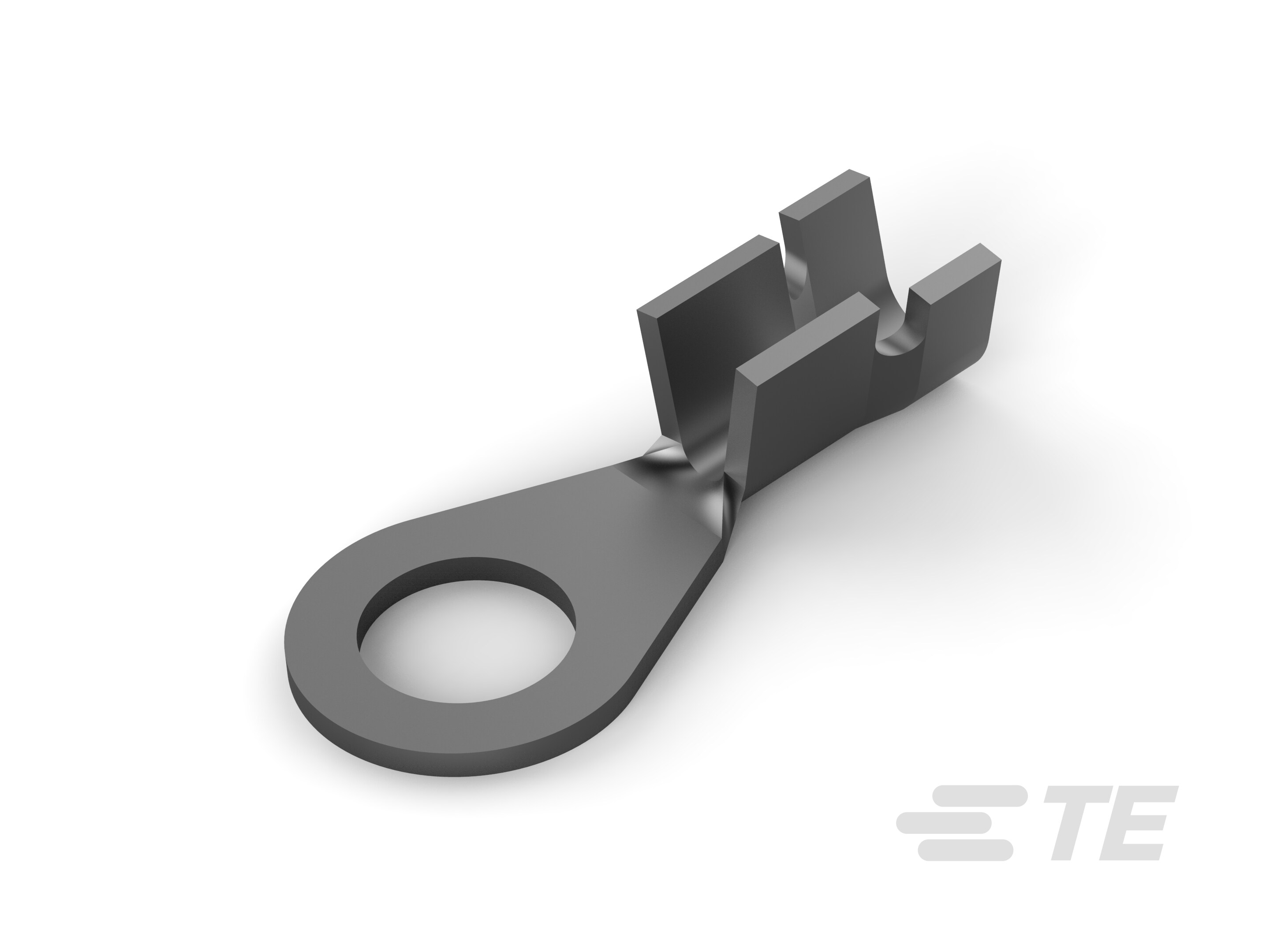

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : M5

• Sealable : No

• Compatible With Discrete Wire Type : Stranded

• Wire Insulation Support Retention Type : Insulation Support

• Number of Holes : 1

• Product Weight (g): .832

• Contact Base Material : Brass

• Barrel Type : Open

• Terminal Orientation : Straight

• Terminal Plating Material : Tin

• Contact Underplating Material : Nickel

• Wire Insulation Support : With

• Compatible Insulation Diameter (Min) (in): .1

• Wire Size (AWG): 18 – 13

• Wire Size (mm²): .8 – 2.5

• Wire Size (CMA): 1624 – 4106

• Stud Diameter : 5.2 mm [ .205 in ]

• Tongue Thickness : .76 mm [ .03 in ]

• Product Length : 19.91 mm [ .78 in ]

• Barrel Inside Diameter (mm): 1.52, 2.92

• Barrel Inside Diameter (in): .06, .115

• Compatible Insulation Diameter (Max) : 3.56 mm [ .14 in ]

• Compatible Insulation Diameter Range : 2.5 – 3.56 mm [ .1 – .14 in ]

• Insulation Option : Uninsulated

• Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]

• Compatible With Wire Base Material : Copper

• Government Qualified Terminal : No
