Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

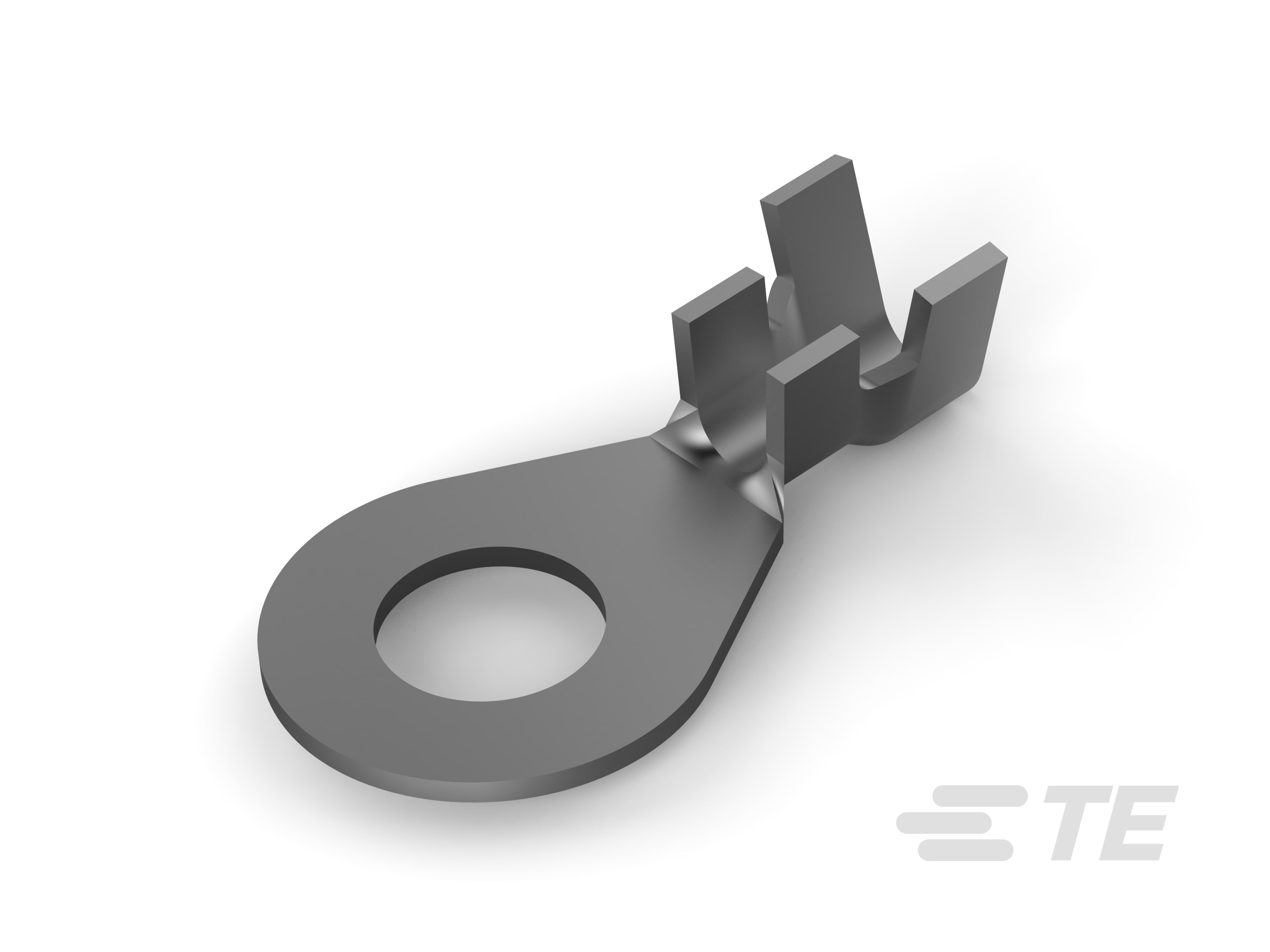

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Sealable : No

• Compatible With Discrete Wire Type : Stranded

• Wire Insulation Support Retention Type : Insulation Support

• Stud Size : M8, 5/16

• Shape Description : Circular/Oval

• Number of Holes : 1

• Product Weight (g): 3.137

• Contact Base Material : Brass

• Terminal Plating Material : Tin

• Barrel Type : Open

• Contact Underplating Material : None

• Terminal Orientation : Straight

• Wire Insulation Support : With

• Wire Size (AWG): 12 – 8

• Tongue Thickness : 1.02 mm [ .04 in ]

• Stud Diameter : 8.74 mm [ .344 in ]

• Barrel Inside Diameter (mm): 3.81, 4.57

• Barrel Inside Diameter (in): .15, .18

• Product Length : 31.75 mm [ 1.25 in ]

• Compatible Insulation Diameter (Max) : 5.59 mm [ .22 in ]

• Compatible Insulation Diameter Range : 3.81 – 5.59 mm [ .15 – .22 in ]

• Compatible Insulation Diameter (Min) (in): .15

• Wire Size (mm²): 3 – 8

• Wire Size (CMA): 6529 – 16507

• Operating Temperature Range : 110 °C [ 230 °F ]

• Insulation Option : Uninsulated

• Compatible With Wire Base Material : Copper

• Government Qualified Terminal : No
