• Terminal Features : Sheared

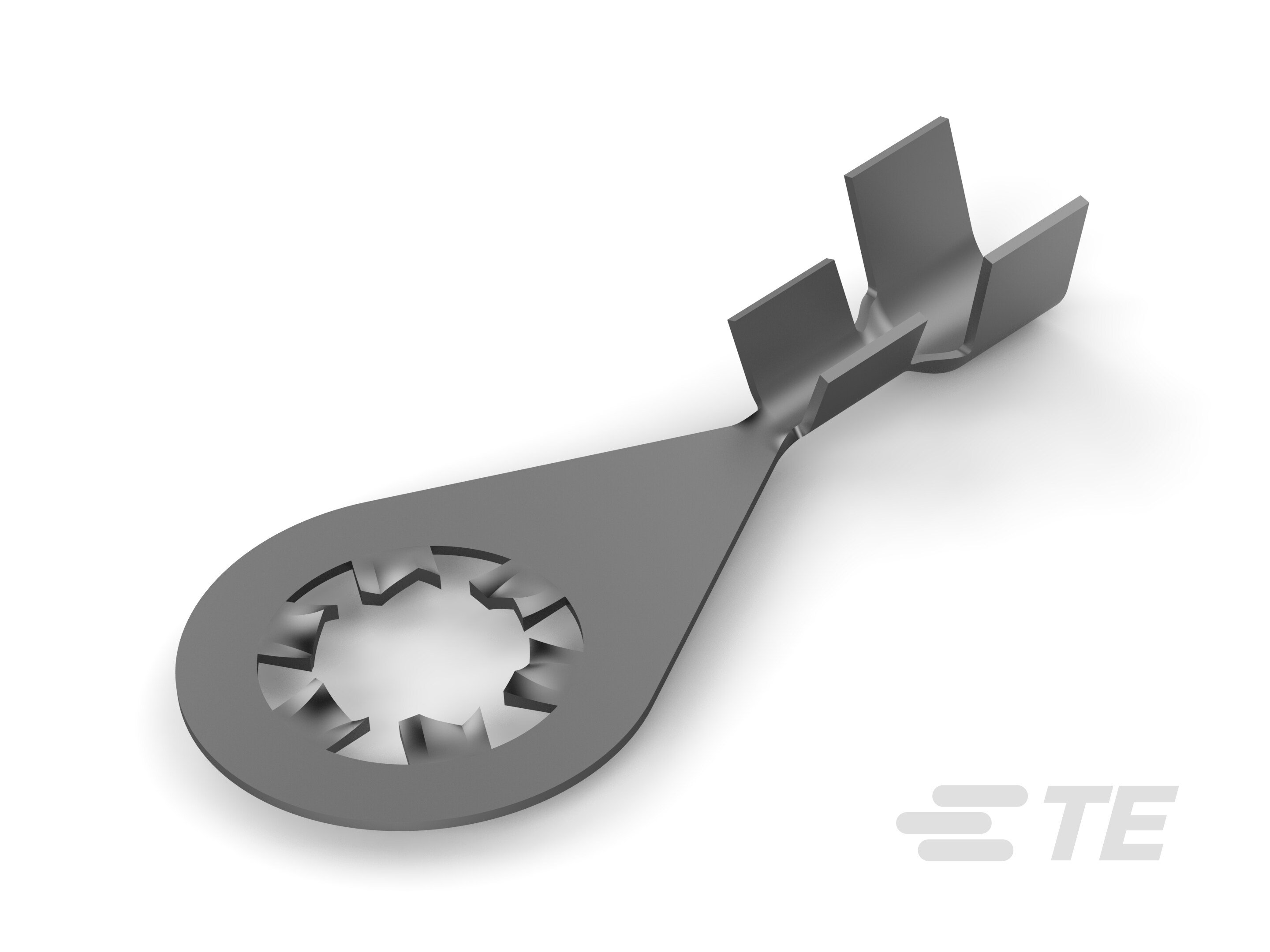

• Shape Description : RING-032

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : 10

• Sealable : No

• Compatible With Discrete Wire Type : Stranded

• Wire Insulation Support Retention Type : Insulation Support

• Government Qualified Terminal : No

• Wire Insulation Support : With

• Product Weight (g): 1.997

• Number of Holes : 1

• Barrel Type : Open

• Terminal Orientation : Straight

• Terminal Plating Material : Tin

• Wire Size (AWG): 17 – 13

• Wire Size (mm²): 1 – 2.5

• Wire Size (CMA): 2048 – 5178

• Stud Diameter : 5.3 mm [ .209 in ]

• Tongue Thickness : .6 mm [ .023 in ]

• Product Length : 26.2 mm [ 1.031 in ]

• Barrel Inside Diameter (mm): 1.7, 2.6

• Barrel Inside Diameter (in): .102, .066

• Compatible Insulation Diameter (Max) : 2.9 mm [ .114 in ]

• Compatible Insulation Diameter Range : 2.1 – 2.9 mm [ .083 – .114 in ]

• Insulation Option : Uninsulated

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Compatible With Wire Base Material : Copper

• Packaging Method : Strip/Reel
