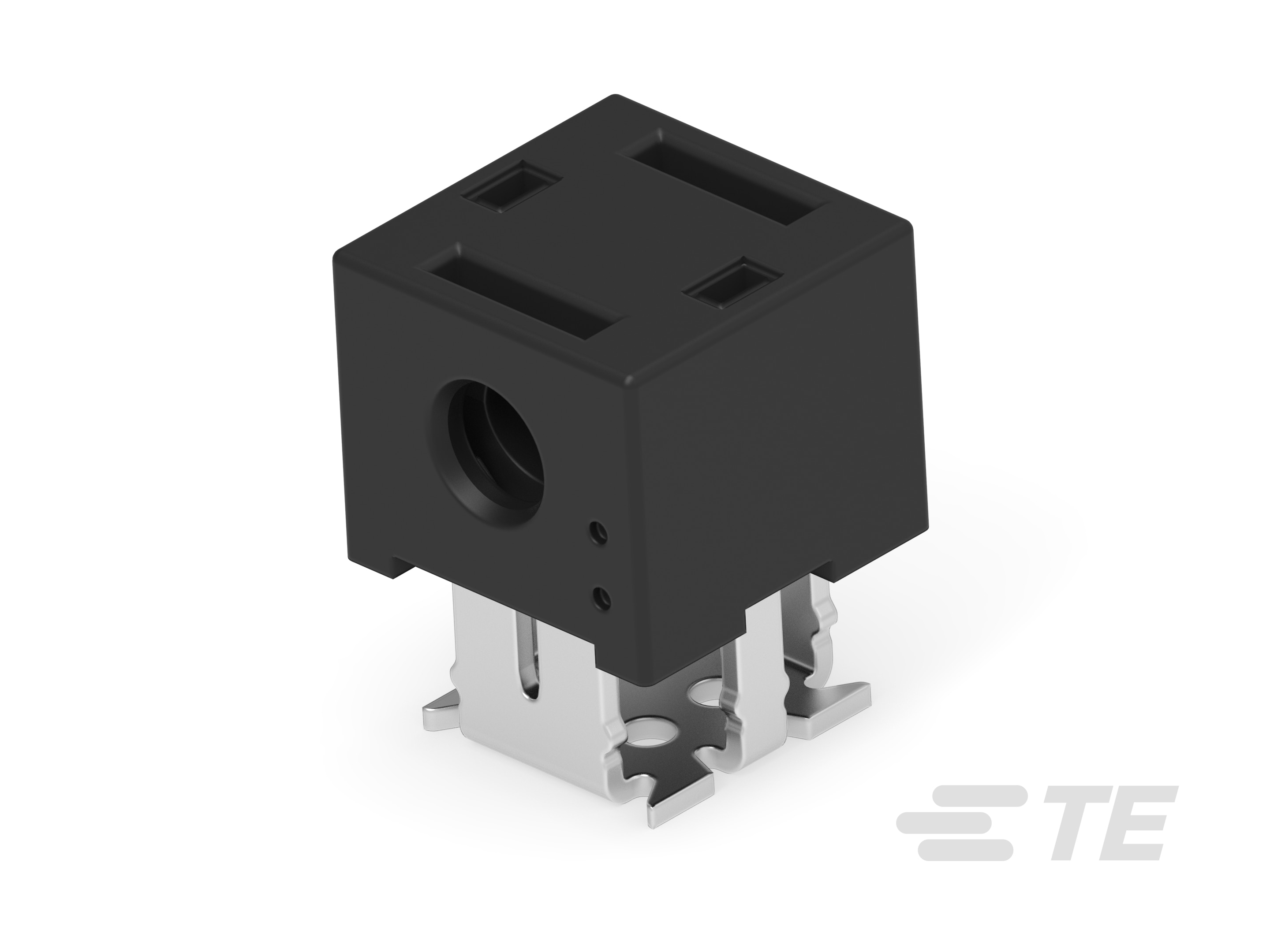

Board-In PCB Mount One-Piece IDC Connector, Right Angle, Wire-to-Board, 1 Position, Discrete Wire, Insulation Displacement Connectors Closed End
474337-E
Board-In PCB Mount One-Piece IDC Connector, Right Angle, Wire-to-Board, 1 Position, Discrete Wire, Insulation Displacement Connectors Closed End
-
- LUMAWISE
- Insulation Displacement Connectors Closed End
- TE Internal #: 474337-E
- TE Internal Description: IDCTERM 1 I2426 1,10 * 094 707 0007 J 2
-
PCB Connector Type : PCB Mount One-Piece IDC Connector
-
PCB Mount Orientation : Right Angle
-
Connector System : Wire-to-Board
-
Number of Positions : 1
-
Compatible With Wire & Cable Type : Discrete Wire
