5-160316-1

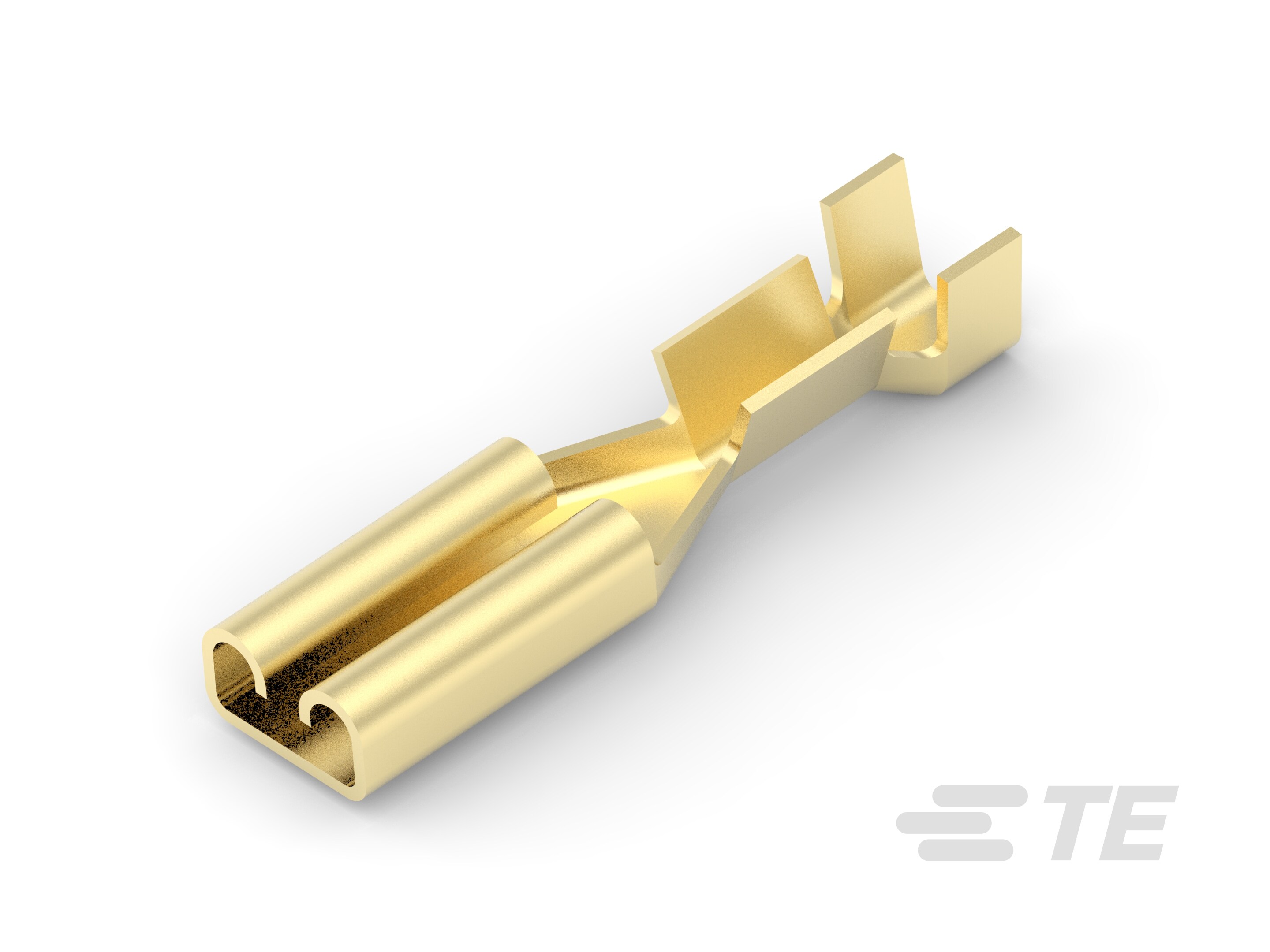

Quick Disconnect Receptacle, 22 – 20 AWG, .3 – .6 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Unplated Plating, Strip/Reel, FASTON 110
5-160316-1
Quick Disconnect Receptacle, 22 – 20 AWG, .3 – .6 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Unplated Plating, Strip/Reel, FASTON 110
-
- FASTON
- FASTON 110
- TE Internal #: 5-160316-1
- TE Internal Description: 110 FASTON REC 22-20 AWG BR
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 22 – 20
-
Wire Size (mm²): .3 – .6
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Mating Tab Thickness : .51 mm [ .02 in ]
Documents
Product Drawings
- .110 SRS FASTON RECEPTACLE ENG_CD_160316_G3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5-160316-1_AB.pdf 3D
- Customer View Model ENG_CVM_CVM_5-160316-1_AB.2d_dxf.zip English
- ENG_CVM_CVM_5-160316-1_AB.3d_igs.zip English
- ENG_CVM_CVM_5-160316-1_AB.3d_stp.zip English
Product Specifications
- FASTON Receptacle Contacts, 110 Series ENG_SS_114-106281_A.pdf English
- Application Specification ENG_SS_114-20109_B7.pdf English
- S_114-3118_A.tif English
- S_114-3118_A.pdf English
- Product Specification S_108-5178_C1.tif English
- ENG_SS_108-5178_C1.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E66717_19840509_E.pdf English
