Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

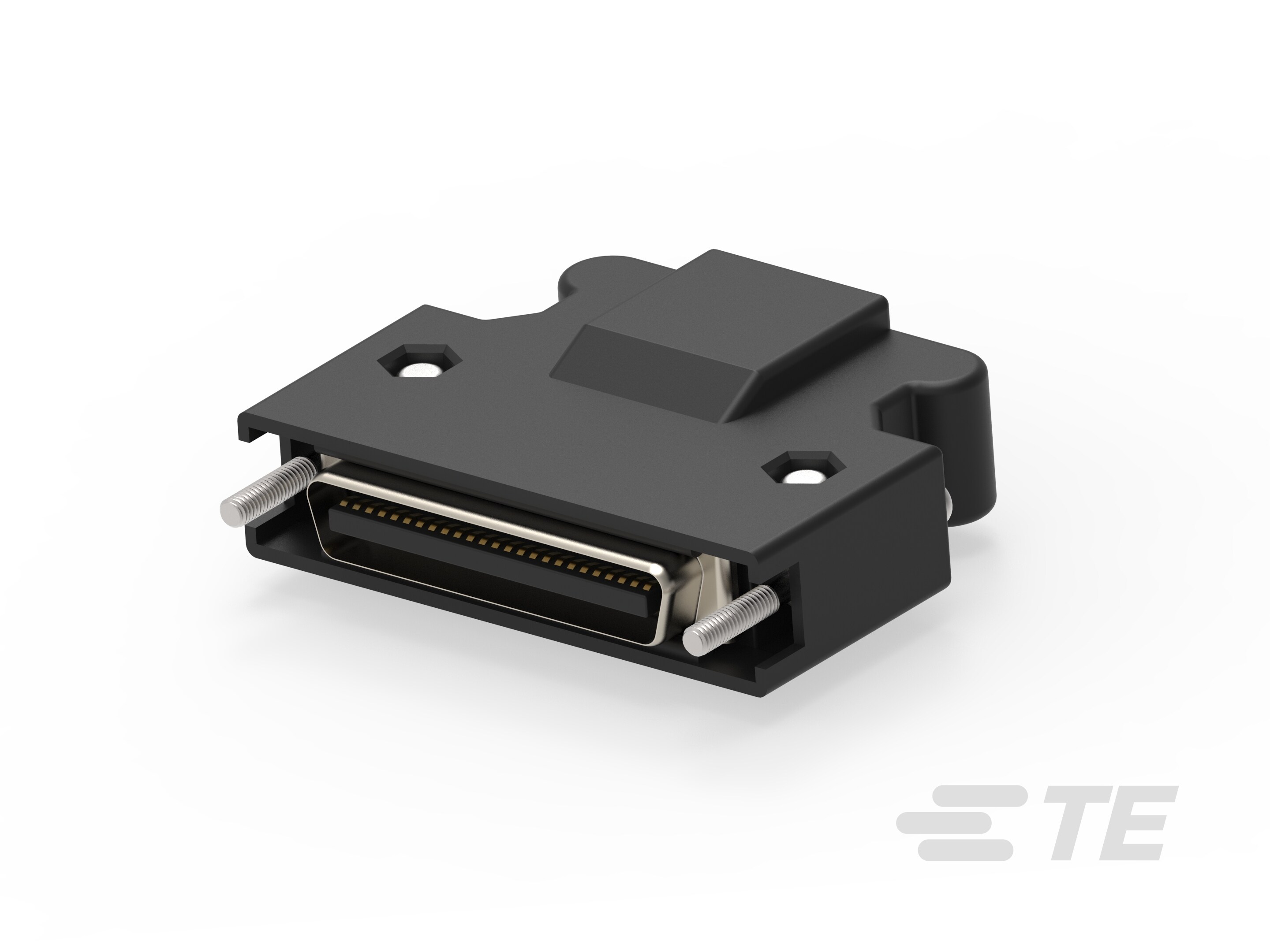

• Shell Material Configuration : All Plastic

• Connector & Housing Type : Plug

• Connector System : Cable-to-Board

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 50

• Insert Material : PBT

• Primary Product Color : Black

• Cable Exit Angle : 180°

• Contact Type : Pin

• Contact Mating Area Plating Material Thickness (µin): 30

• Contact Size : Size 24

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Plating Material : Gold (Au)

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): 1

• Contact Options : Installed

• Termination Method to Wire & Cable : Solder

• Mating Retention Type : Screw

• Mating Retention : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Shell Material : Steel

• Housing Material : Thermoplastic

• Centerline (Pitch) : 1.27 mm [ .05 in ]

• Wire Size (AWG): 30 – 24

• Wire Size (mm²): .05 – .2

• Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
