5-2834006-2

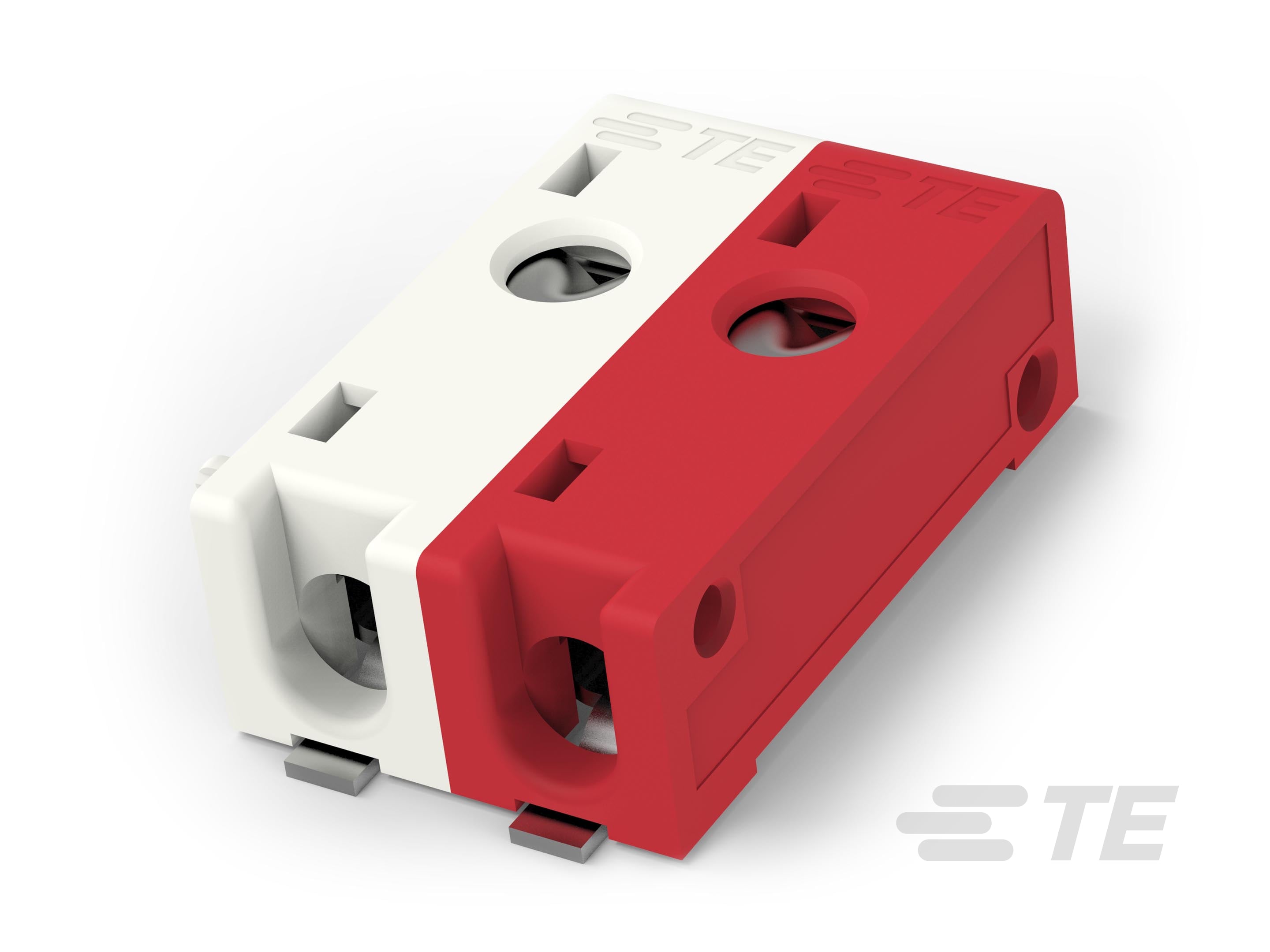

Wire-to-Board, 2 Position, 4 mm Centerline, Printed Circuit Board, 4.48 mm [.176 in] Height, Surface Mount, 18 – 22 AWG, Poke-In Connectors
5-2834006-2
Wire-to-Board, 2 Position, 4 mm Centerline, Printed Circuit Board, 4.48 mm [.176 in] Height, Surface Mount, 18 – 22 AWG, Poke-In Connectors
-
- Buchanan WireMate
- TE Internal #: 5-2834006-2
- TE Internal Description: 2P MRPK _WE/RD
-
Connector System : Wire-to-Board
-
Number of Positions : 2
-
Centerline (Pitch) (mm): 4
-
Connector & Contact Terminates To : Printed Circuit Board
-
Connector Height : 4.48 mm [ .176 in ]
