Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

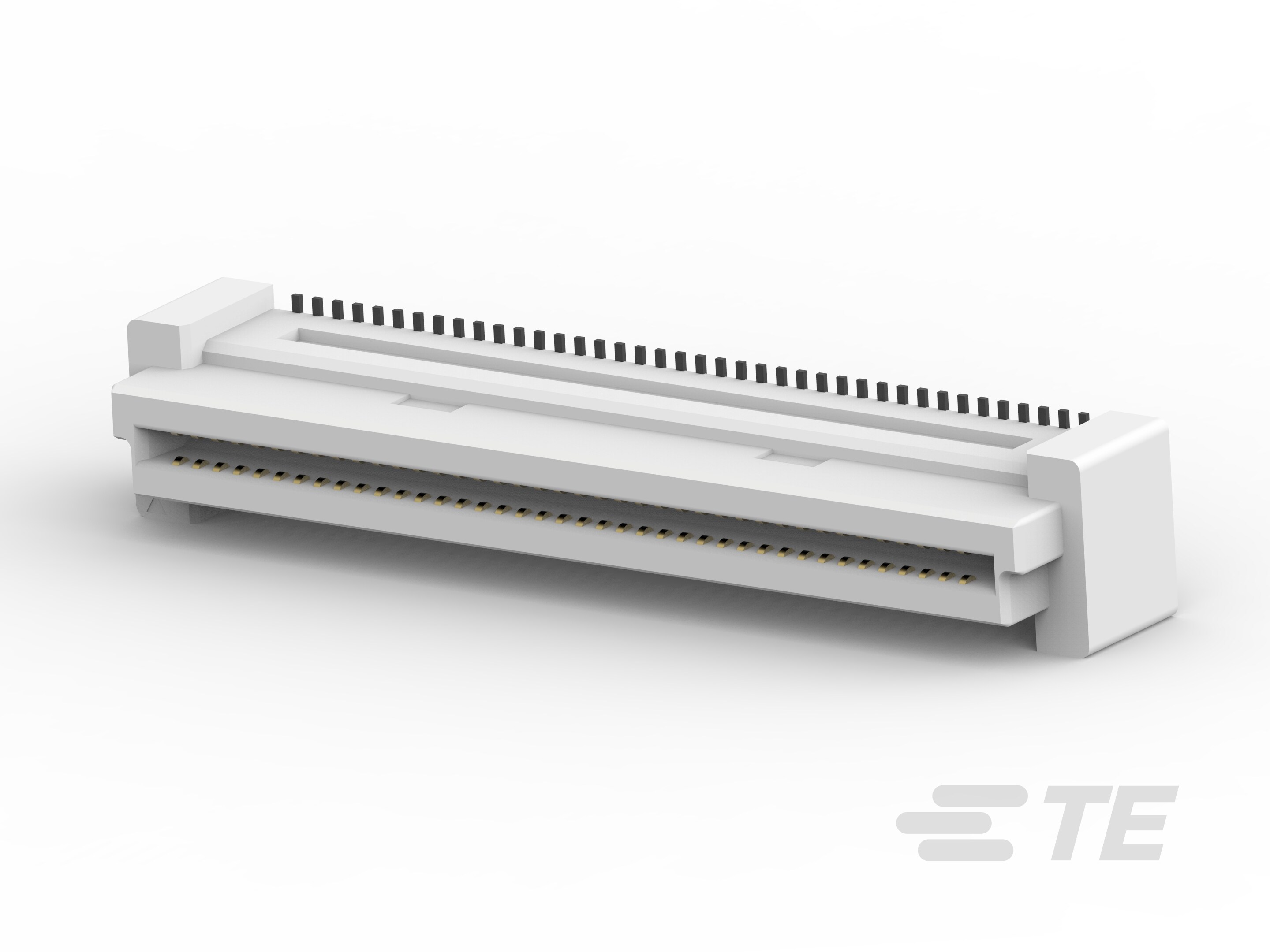

• Stackable : Yes

• Board-to-Board Configuration : Parallel

• PCB Mount Orientation : Vertical

• Number of Positions : 80

• Housing Material : Matte

• Mating Entry Location : Top

• Centerline (Pitch) : .8 mm [ .031 in ]

• PCB Contact Termination Area Plating Material : Tin

• Mating Tab Thickness : .2 mm [ .008 in ]

• Contact Base Material : Copper Alloy

• Contact Layout : Inline

• PCB Contact Termination Area Plating Material Thickness : 2 µm [ 78.74 µin ]

• Mating Tab Width : .4 mm [ .016 in ]

• Contact Mating Area Plating Material Thickness : .2 µm [ 8 µin ]

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Mating Area Plating Material : Gold

• Contact Type : Socket

• Contact Current Rating (Max) (A): .5

• Rectangular Termination Post & Tail Thickness : .2 mm [ .008 in ]

• Rectangular Termination Post & Tail Width : .3 mm [ .012 in ]

• Termination Method to PCB : Surface Mount

• PCB Mount Alignment Type : Positioning Bosses

• Mating Alignment Type : Polarization

• Mounting Alignment Feature Length : .5 mm [ .02 in ]

• PCB Mount Retention : Without

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Assembly Process Feature : Pick and Place Cover

• Circuit Application : Signal

• Assembly Process Feature Material : Steel

• Primary Product Color : Natural

• Housing Temperature Rating : High

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

• Packaging Quantity : 500

• Packaging Reel Diameter (in): .5

• Packaging Method : Tape & Reel

• Connector Height : 9 mm [ .354 in ]

• Stack Height (mm): 9, 10, 12, 11

• Stack Height (in): .433, .354, .472, .394

• Dielectric Withstanding Voltage (Max) (VAC): 500

• Insulation Resistance (MΩ): 2

• Operating Voltage (VAC): 100

• PCB Connector Assembly Type : PCB Mount Receptacle

• Connector System : Board-to-Board

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• UL Flammability Rating : UL 94V-0
