5-747913-2

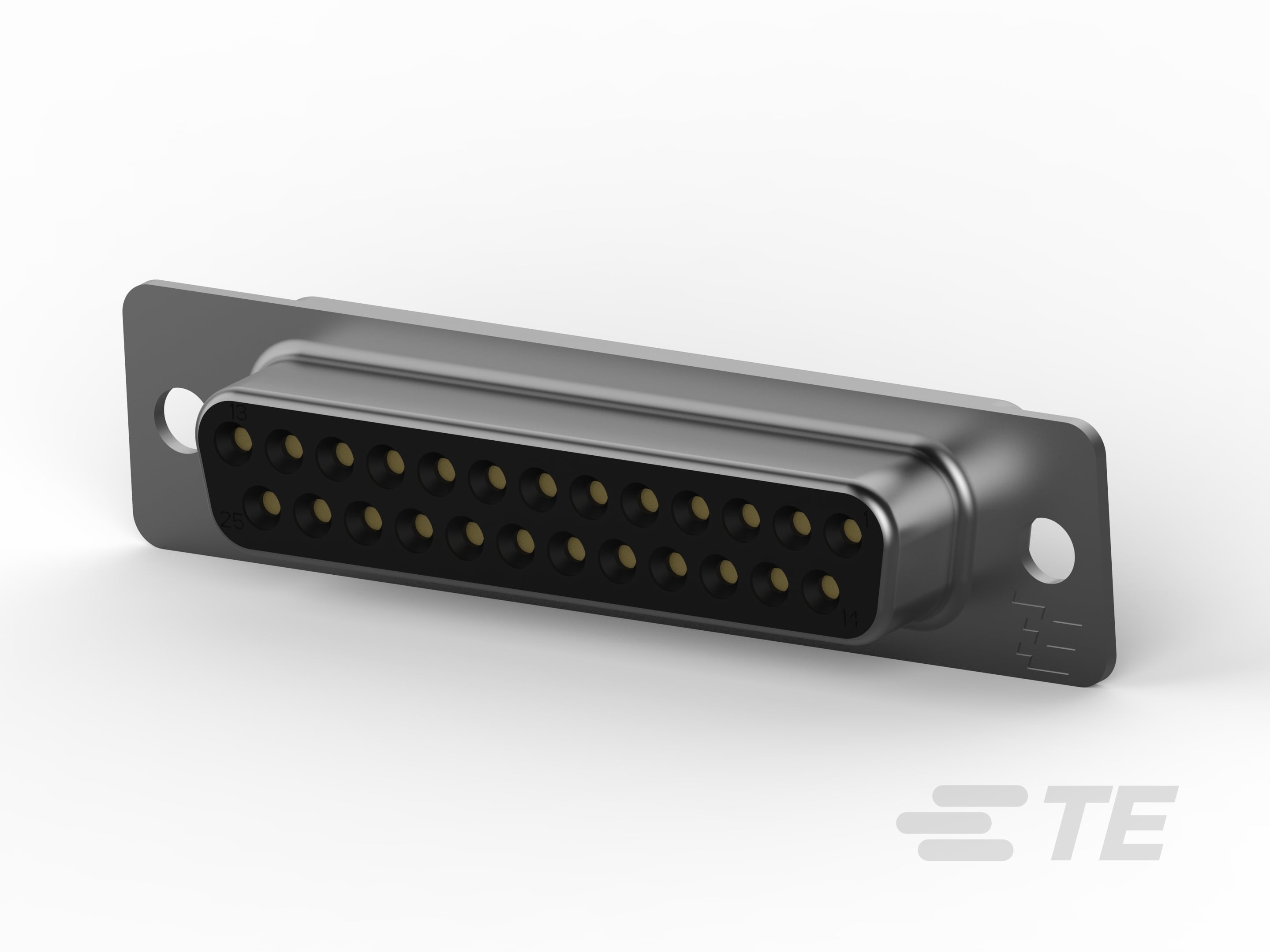

25 Position D-Shaped Connector, Receptacle, Cable-to-Board, Cable Mount (Free-Hanging), 3 Shell Size, 2.79 mm [.11 in] Centerline, Wire & Cable
5-747913-2
25 Position D-Shaped Connector, Receptacle, Cable-to-Board, Cable Mount (Free-Hanging), 3 Shell Size, 2.79 mm [.11 in] Centerline, Wire & Cable
-
- AMPLIMITE
- TE Internal #: 5-747913-2
- TE Internal Description: 25 Rcpt Solder Cup, Gold Flash
- Alias #: CM8352-000 AMP-5-0747913-2
-
Number of Positions : 25
-
Connector & Housing Type : Receptacle
-
Connector System : Cable-to-Board
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Connector Shell Size : 3
Documents
Product Drawings
- RECEPTACLE ASSEMBLY, SOLDER CUP, SIZE 3, 25 POSN, HD-20, AMPLIMITE ENG_CD_747913_AB.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5-747913-2_W.pdf 3D
- Customer View Model ENG_CVM_CVM_5-747913-2_W.2d_dxf.zip English
- ENG_CVM_CVM_5-747913-2_W.3d_igs.zip English
- ENG_CVM_CVM_5-747913-2_W.3d_stp.zip English
Datasheets & Catalog Pages
- AMPLIMITE Subminiature D Connectors - Cable Connectors ENG_CS_82068_AMPLIMITE_Cable_Connectors_0412.pdf English
- AMPLIMITE Cable Connectors and Shielding Hardware Kits QRG ENG_DS_1-1773963-5_AMPLIMITE_Cable_Conn_QRG_1018.pdf English
Product Specifications
- Product Specification ENG_SS_108-2038_C.pdf English
- S_108-2038_C.tif English
- JPN_SS_108-2038_C.pdf Japanese
- ENG_SS_108-40031_B.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-9193_D.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E81956_19911202_A.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6233_1088108_B.pdf English
