5-963716-2

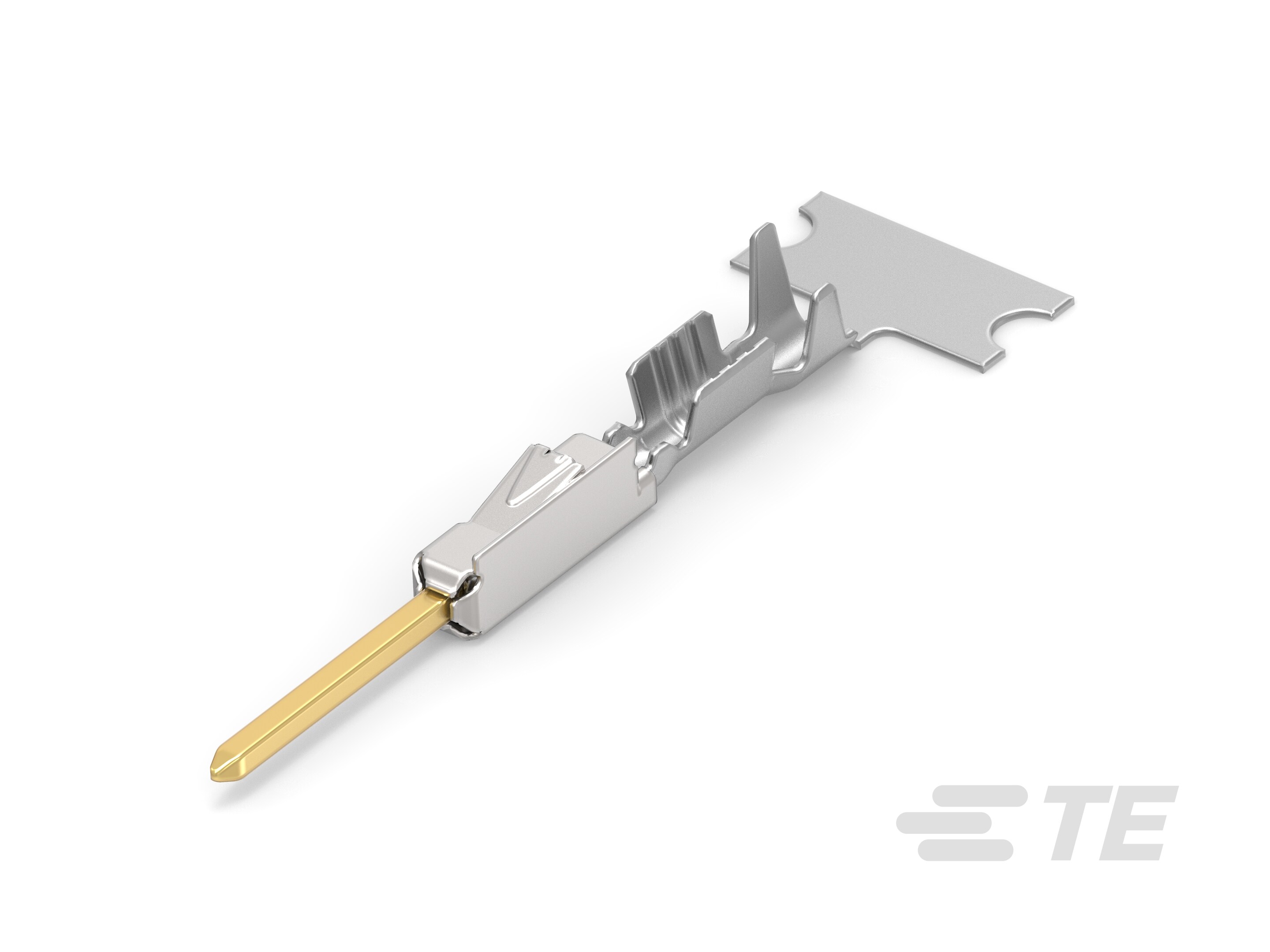

Tab Terminal, Gold (Au), .63 mm [.02 in] Tab Width, .63 mm [.02 in] Tab Thickness, 20 – 18 AWG, .5 – .75 mm² Wire, Terminates To Wire & Cable
5-963716-2
Tab Terminal, Gold (Au), .63 mm [.02 in] Tab Width, .63 mm [.02 in] Tab Thickness, 20 – 18 AWG, .5 – .75 mm² Wire, Terminates To Wire & Cable
-
- MQS
- TE Internal #: 5-963716-2
- TE Internal Description: MQS0,63 Au tab LL unseal. 0,5-0,75
- All MQS, RECEPTACLE AND TAB (98)
-
Terminal Type : Tab
-
Interface Plating : Gold (Au)
-
Mating Tab Width : .63 mm [ .02 in ]
-
Mating Tab Thickness : .63 mm [ .02 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
Documents
Product Drawings
- MQS Tabellenzeichnung Stiftkontakt TABLE PIN CONTACT ENG_CD_929453_C33.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5-963716-2_Z_c-5-963716-2-z-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_5-963716-2_Z_c-5-963716-2-z.2d_dxf.zip English
- ENG_CVM_CVM_5-963716-2_Z_c-5-963716-2-z.3d_igs.zip English
- ENG_CVM_CVM_5-963716-2_Z_c-5-963716-2-z.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-18021_V1.pdf English
- GER_SS_114-18022_N.pdf German
- ENG_SS_114-18022-20_L.pdf English
- Product Specification ENG_SS_108-10030_A.pdf English
- ENG_SS_108-18030_B.pdf English
