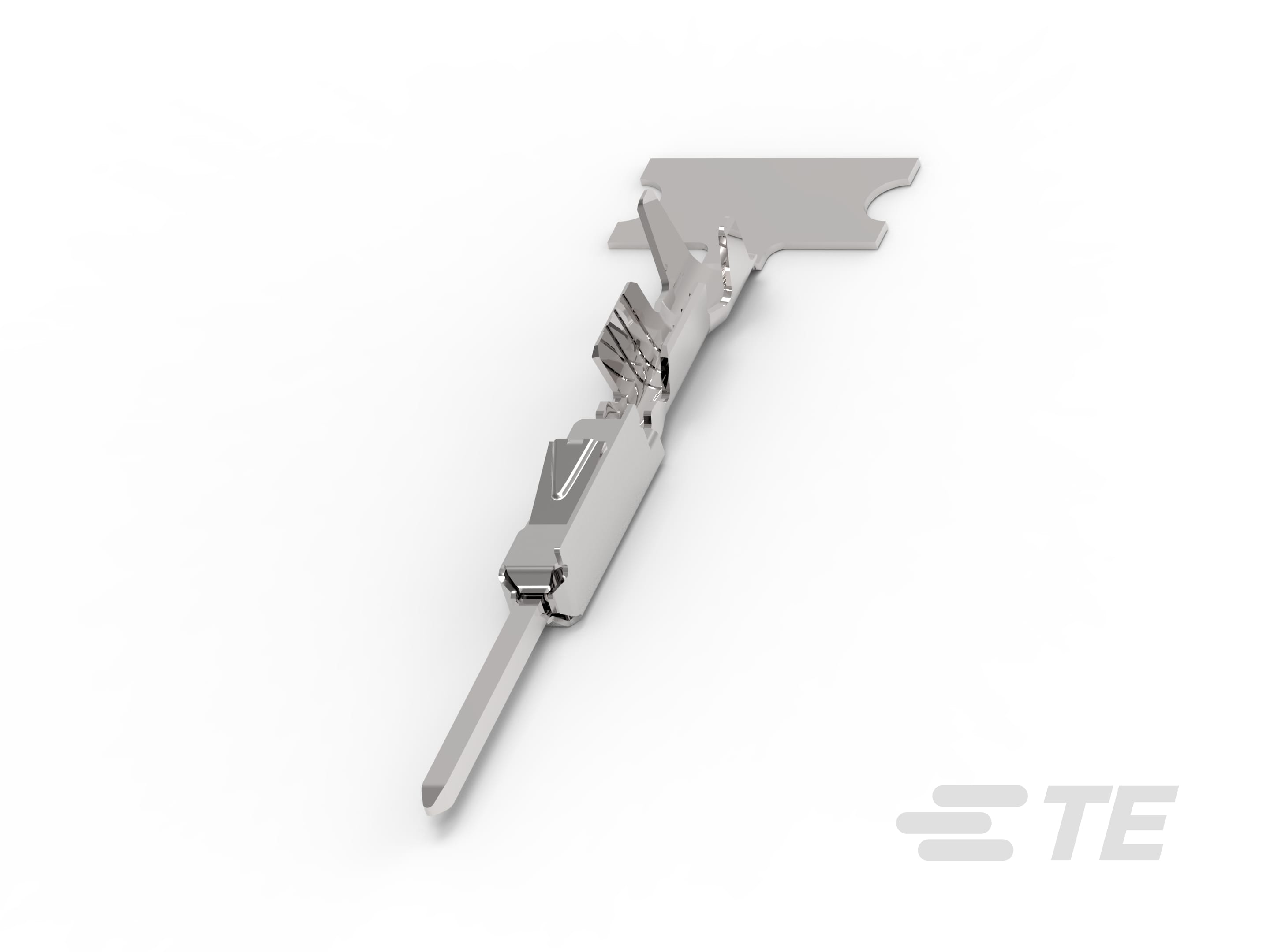

• Receptacle Style : 180°

• Primary Locking Feature : Locking Lance

• Sealable : No

• Terminal Seal Type : Unsealed

• Wire Contact Termination Area Plating Material : Silver

• Contact Fabrication : Stamped & Formed

• Contact Size : .63mm

• Crimp Type : F-Crimp

• Typical Current Rating (A): 7.5

• Terminal Type : Pin

• Mating Tab Width : .63 mm [ .025 in ]

• Interface Plating : Silver (Ag)

• Mating Tab Thickness : .63 mm [ .025 in ]

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire & Cable

• Compatible Insulation Diameter Range : 1.4 – 1.9 mm [ .055 – .074 in ]

• Wire Size (AWG): 20 – 18

• Wire Size (mm²): .5 – .75

• Wire Size Search (mm²): .5, .6, .75

• Wire Size Search (AWG): 18, 19, 20

• Tab Length : 21.5 mm [ .85 in ]

• Insulation Option : Uninsulated

• Operating Temperature (Max) : 140 °C [ 284 °F ]

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]

• Conforms to Automation Guideline : Yes, DIN 72036 Automation of Wiring Harness Production, Version June 2024, Yes, KOMAX Guideline for automatic component insertion for electrical connections, Version 5.0 (March 2018)

• Compatible With Wire Base Material : Copper

• Packaging Quantity : 10000

• Packaging Method : Reel
