Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Fluid Type : Lubricating Oil, Hydraulic Fluid, Water, Gasoline

• Primary Product Color : Brown

• Shrink Ratio : 2:1

• Primary Product Material : Irradiated Modified Polyolefin

• Flexibility : Flexible

• Recovered Wall Thickness (Tolerance) : .2 mm [ .008 in ]

• Product Length : 1220 mm [ 48.031 in ]

• Recovered Wall Thickness (Nominal) : .5 mm [ .02 in ]

• Recovered Inside Diameter (Max) : 1.6 mm [ .063 in ]

• Expanded Inside Diameter (Min) : 3.2 mm [ .126 in ]

• Tubing Size Range : 1.6 – 3.2 mm [ .062 – .125 in ]

• Shrink Temperature (Min) (°C): 95

• Tubing Flammability Type : Flame-Retardant

• Operating Temperature Range (°C): -55 – 135

• Recovery Temperature (°C): 121

• Operating Voltage (Max) (kV): .6

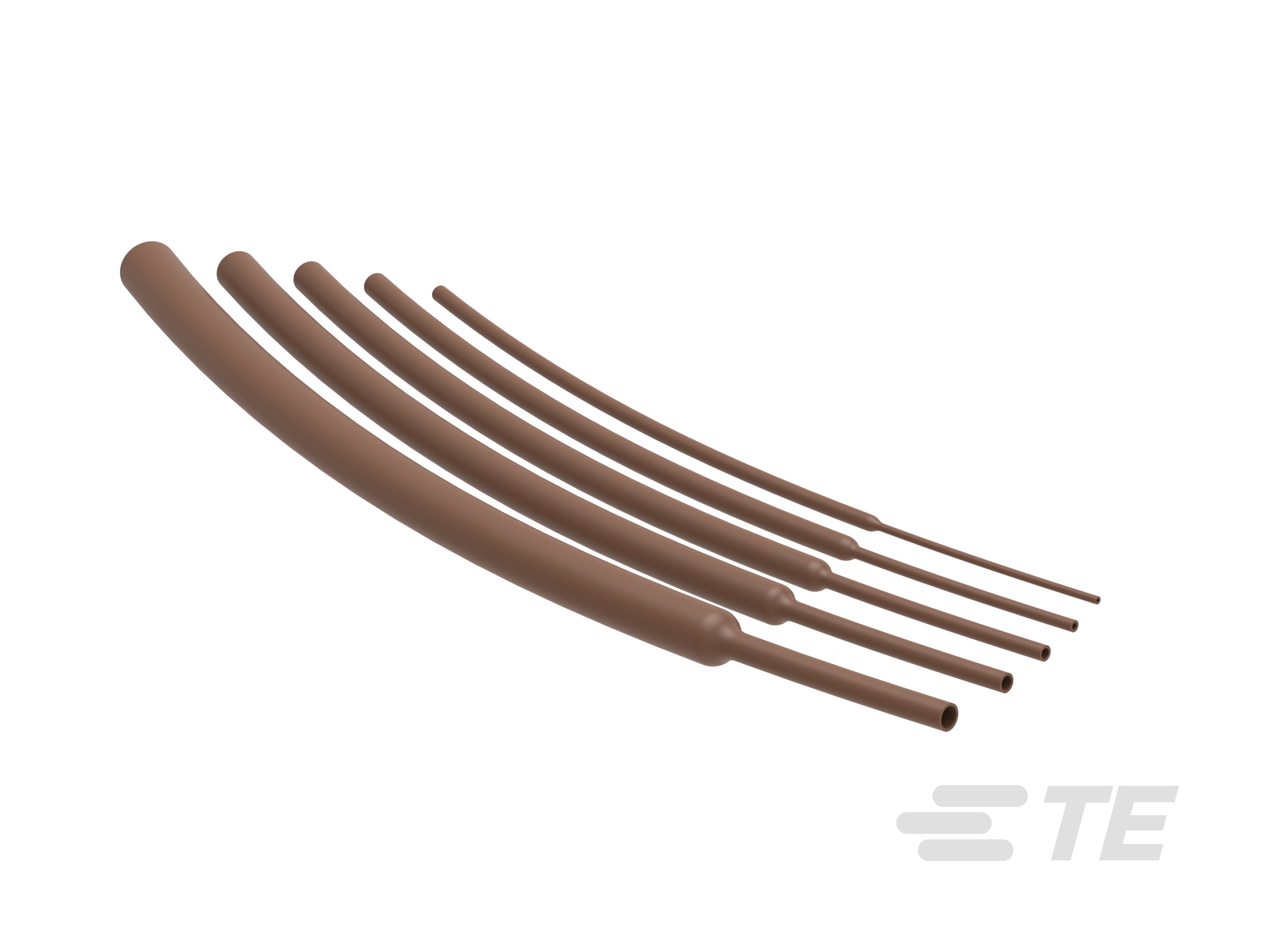

• Tubing Product Type : Heat Shrink Tubing

• Wall Type : Single Wall

• Packaging Method : Bag & Box

• Mechanical Resistance : Mechanical Damage, Strain Relief, Fluids, Abrasion

• Applicable Region : Global
