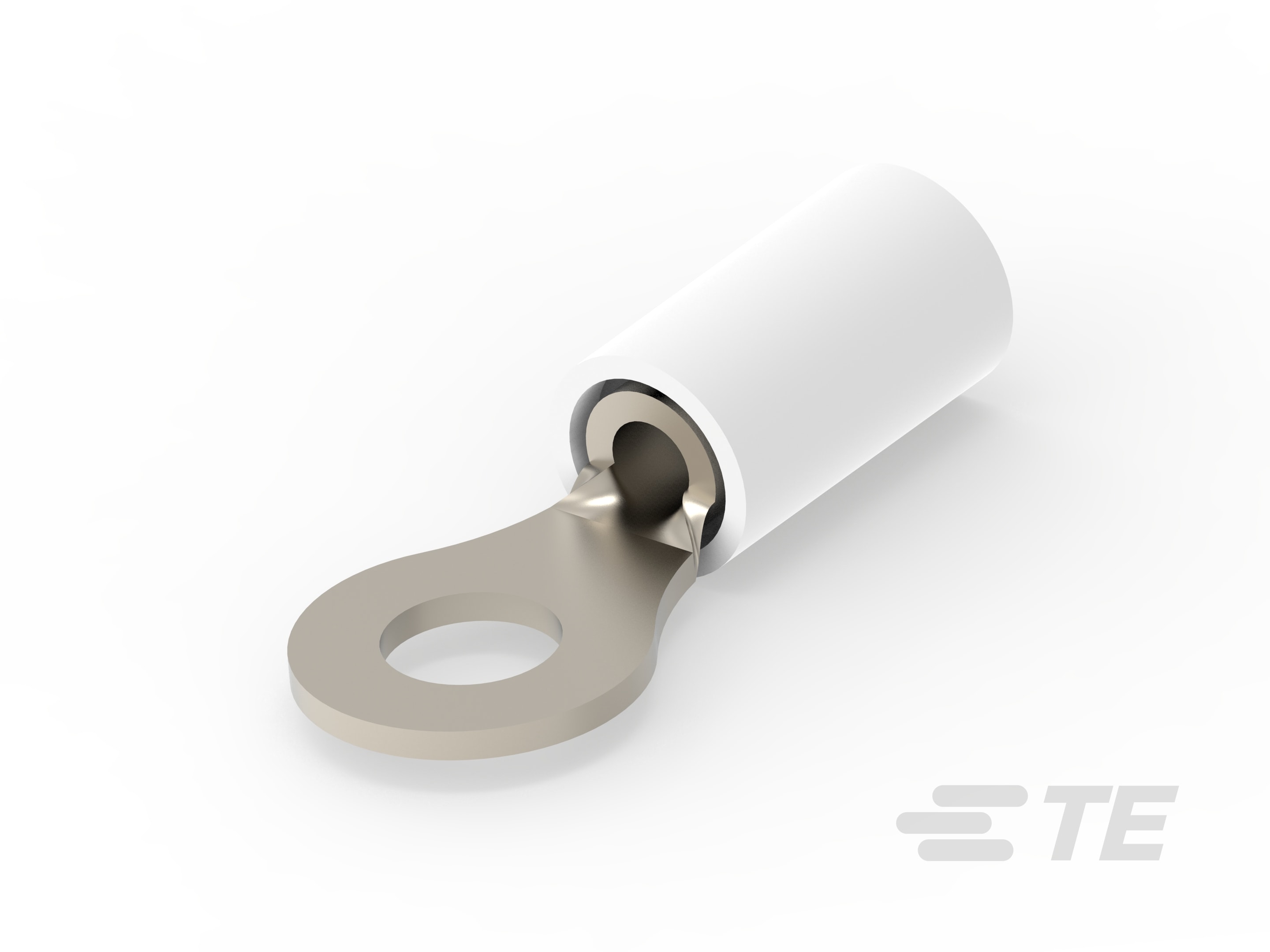

Closed Ring Tongue Terminal, 14 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, STRATO-THERM
50840
Closed Ring Tongue Terminal, 14 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, STRATO-THERM
-
- STRATO-THERM
- TE Internal #: 50840
- TE Internal Description: TERMINAL,PIDG PTFE R 14 8
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 14
-
Wire Size (mm²): 2 – 2.15
-
Wire Size (CMA): 4234
-
Stud Size : 8, M4
Documents
Product Drawings
- TERMINAL, RING TONGUE, PIDG, STRATO-THERM, WIRE SIZE: 14 AWG ENG_CD_50840_K.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_50840_G.pdf 3D
- Customer View Model ENG_CVM_CVM_50840_G.2d_dxf.zip English
- ENG_CVM_CVM_50840_G.3d_igs.zip English
- ENG_CVM_CVM_50840_G.3d_stp.zip English
Datasheets & Catalog Pages
- STRATO-THERM Terminals & Splices for High Temperature Applications ENG_CS_82011_0806_STRATO-THERM_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-2162_D.pdf English
