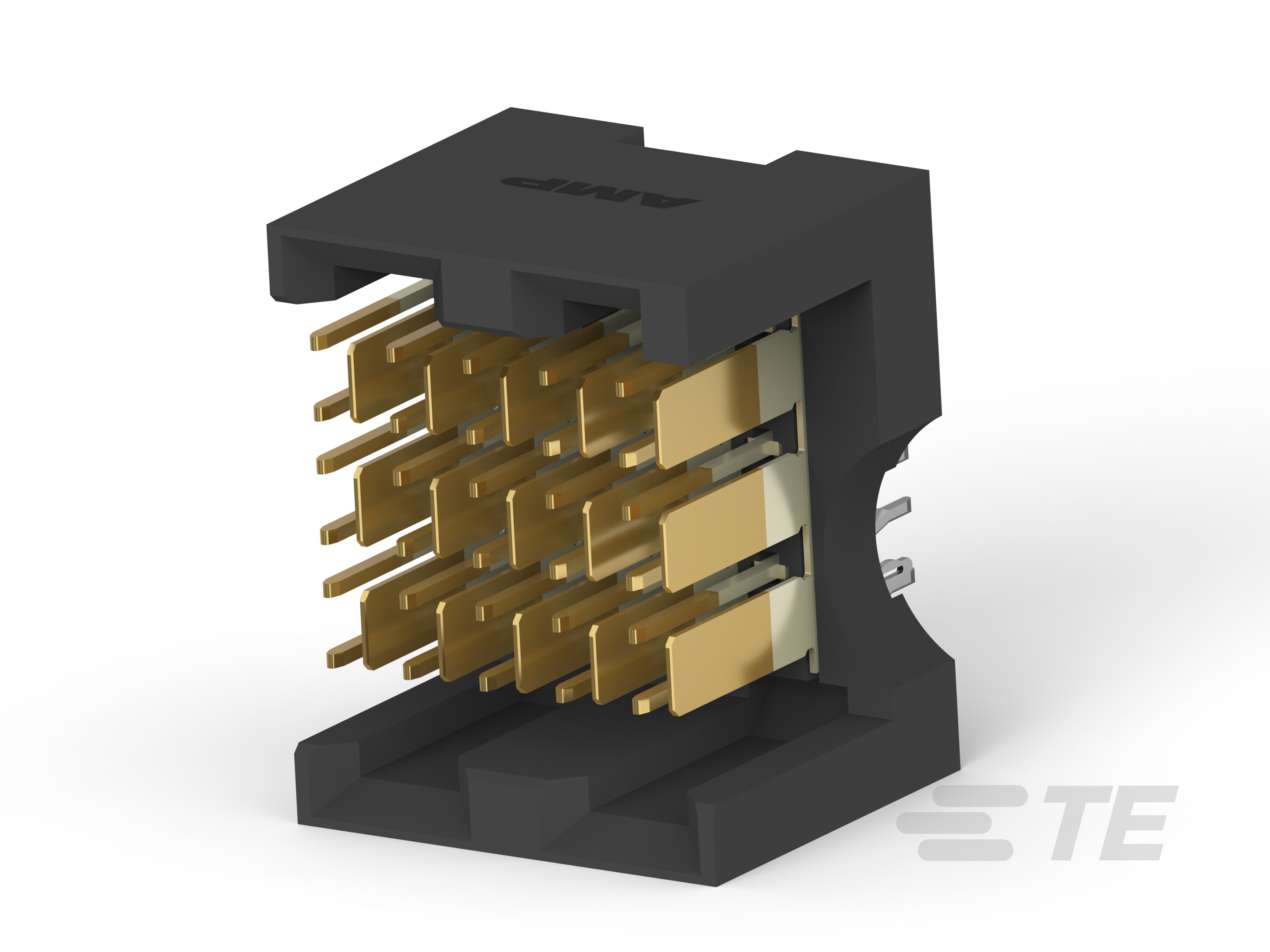

• Backplane Module Type : Left

• Connector System : Board-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Connector Type : PCB Mount Header

• Shroud Style : Partially Shrouded

• Stackable : No

• Backplane Architecture : Traditional Backplane

• Number of Positions : 60

• Number of Rows : 6

• Number of Columns : 5

• PCB Mount Orientation : Vertical

• Operating Voltage (VAC): 250

• Number of Differential Pairs per Column : 3

• Primary Product Color : Black

• Guide Pin Style : ESD/HDI

• Contact Type : Pin

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Length : 6.8 mm [ .268 in ]

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Shape & Form : Dual Beam

• Contact Mating Area Plating Material Thickness : .5 µm [ 19.68 µin ]

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Current Rating (Max) (A): 1.15

• Termination Post & Tail Length : 3.7 mm [ .146 in ]

• Termination Method to PCB : Through Hole - Press-Fit

• PCB Mount Retention Type : Action/Compliant Tail

• Mating Retention : Without

• PCB Mount Retention : With

• Guide Hardware : Without

• Mating Alignment : With

• Mating Alignment Type : Polarization

• Connector Mounting Type : Board Mount

• Housing Material : Polyester GF

• Number of Shrouded Sides : 2

• Centerline (Pitch) : 2.5 mm [ .098 in ]

• Connector Length (mm): 14.5

• Connector Length (in): .571, .945

• Connector Height : 11.95 mm [ .47 in ]

• PCB Hole Diameter : .05 mm [ .001 in ]

• Connector Width (mm): 24

• PCB Thickness (Recommended) (mm): 1.4

• Row-to-Row Spacing : 2 mm [ .078 in ]

• Circuit Application : Signal
