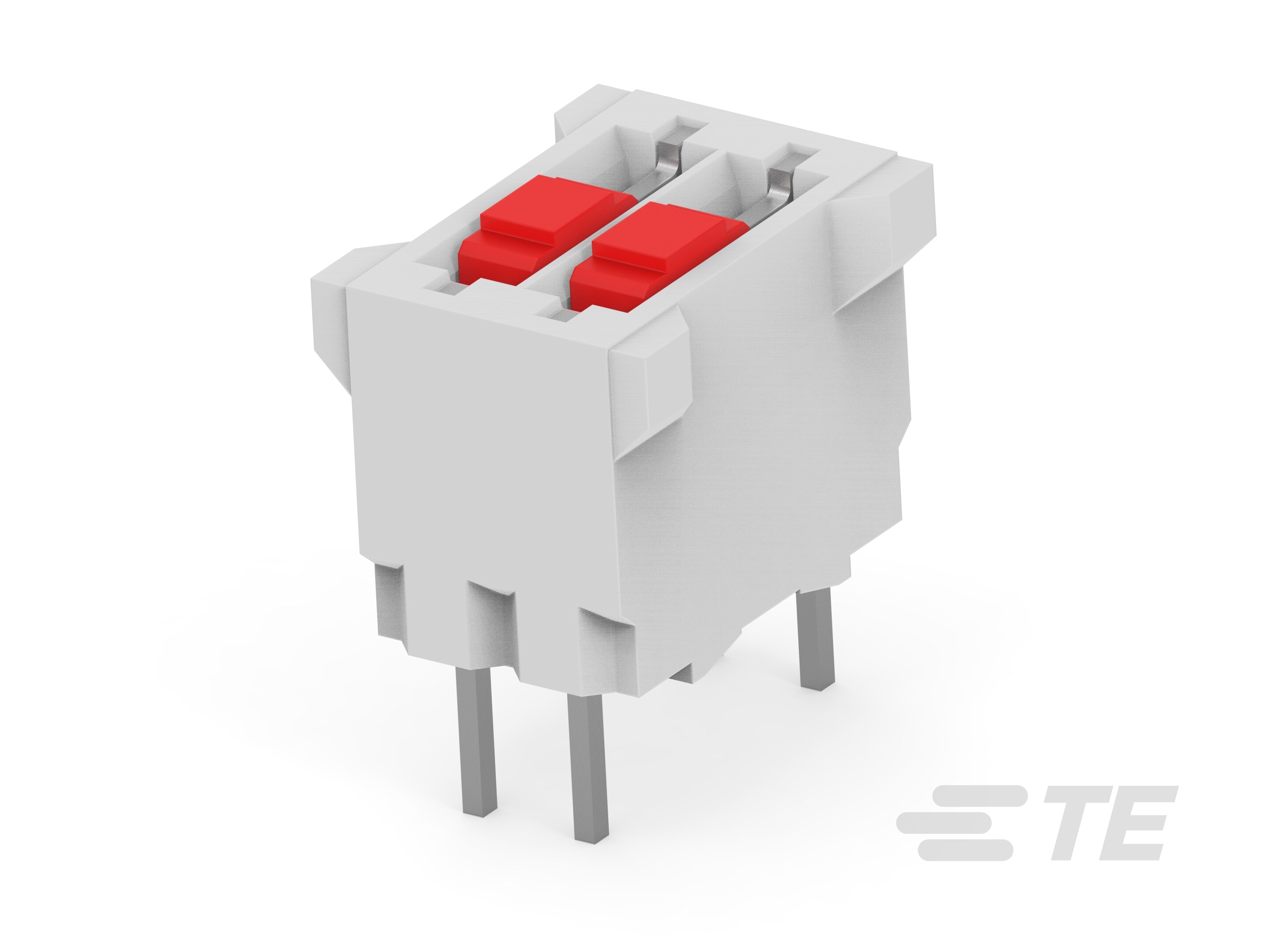

5161390-2
DIP Switch, Tin Contact Plating, Natural, Nylon - GF, 2 Switch, -25 – 70 °C, Slide Actuator, .01 A Contact Rating, Alcoswitch DIP
5161390-2
DIP Switch, Tin Contact Plating, Natural, Nylon - GF, 2 Switch, -25 – 70 °C, Slide Actuator, .01 A Contact Rating, Alcoswitch DIP
-
- Alcoswitch
- Alcoswitch DIP
- TE Internal #: 5161390-2
- TE Internal Description: 02P.DIP SWITCH ASSY
-
DIP & SIP Switch Type : DIP
-
Switch Contact Plating Material : Tin
-
Case Color : Natural
-
Case Material : Nylon - GF
-
Sealed Device : No
Documents
Product Drawings
- DIP SWITCH SOLDER LEGS 3,2mm LONG ENG_CD_5161390_E.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5161390-2_D.pdf 3D
- Customer View Model ENG_CVM_CVM_5161390-2_D.3d_igs.zip English
- ENG_CVM_CVM_5161390-2_D.3d_stp.zip English
- ENG_CVM_CVM_5161390-2_D.2d_dxf.zip English
Datasheets & Catalog Pages
- SWITCHES_CORE_PROGRAM_CATALOG ENG_CS_1308111-1_SWITCHES_CORE_PROGRAM_CATALOG_0308.pdf English
