52045-1

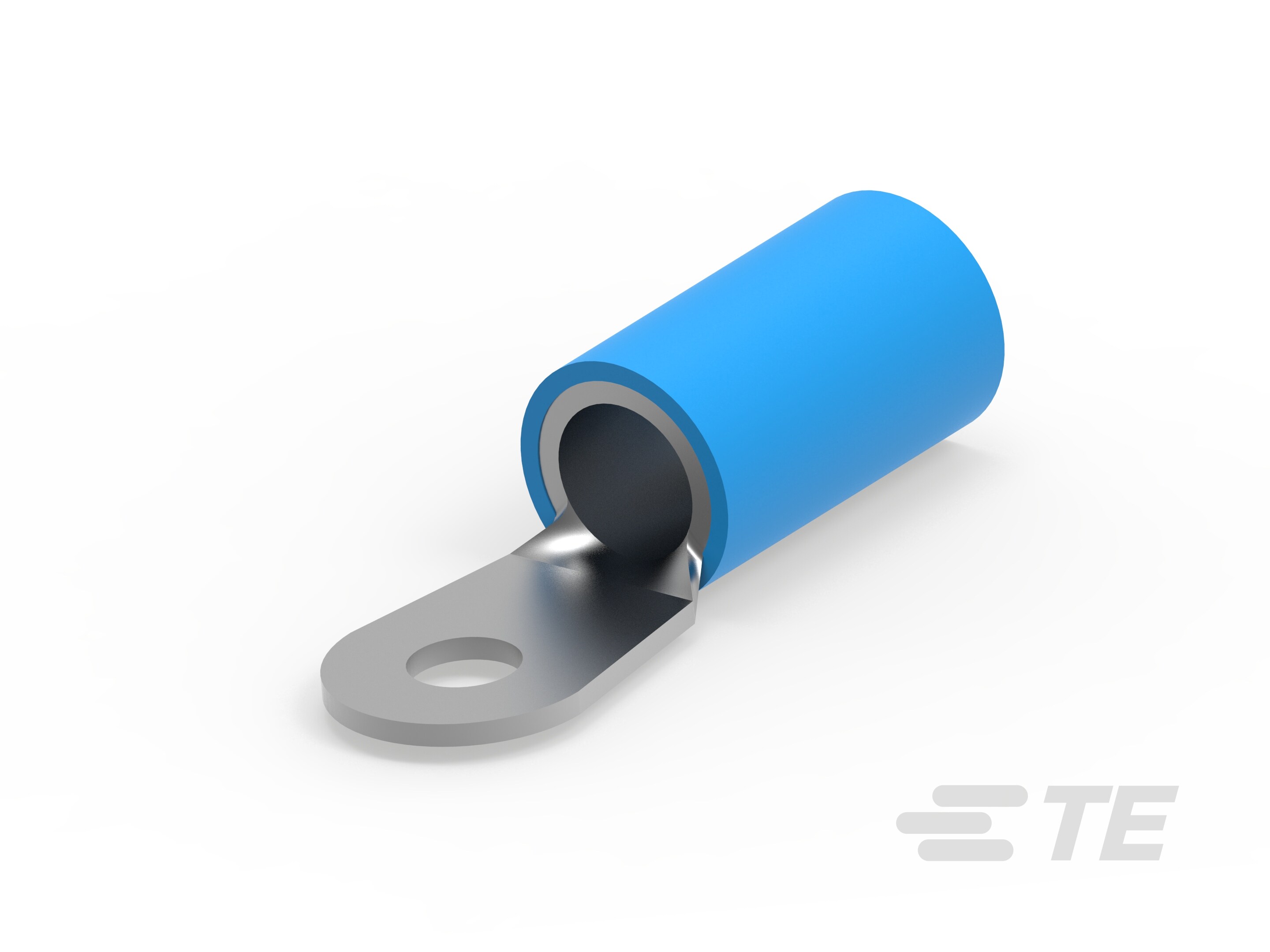

Closed Ring Tongue Terminal, 1/0 AWG, 5/16 / M8 Stud, 7.92 mm [.312 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
52045-1
Closed Ring Tongue Terminal, 1/0 AWG, 5/16 / M8 Stud, 7.92 mm [.312 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
-
- PLASTI-GRIP
- TE Internal #: 52045-1
- TE Internal Description: TERMINAL R PG 1/0 5/16
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 1/0
-
Wire Size (mm²): 41 – 60
-
Wire Size (CMA): 83700 – 119500
-
Stud Size : 5/16, M8
Documents
Product Drawings
- TERMINAL, RING TONGUE, PLASTI-GRIP, WIRE SIZE: 1/0 AWG ENG_CD_52045_H2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_52045-1_G.pdf 3D
- Customer View Model ENG_CVM_CVM_52045-1_G.2d_dxf.zip English
- ENG_CVM_CVM_52045-1_G.3d_igs.zip English
- ENG_CVM_CVM_52045-1_G.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2161_G.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049-29_F.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19730322_A_UL_E13288_19730322.pdf English
- ENG_AAD_UL_E13288_19791001_C.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6223_1693113_A.pdf English
