521087-1

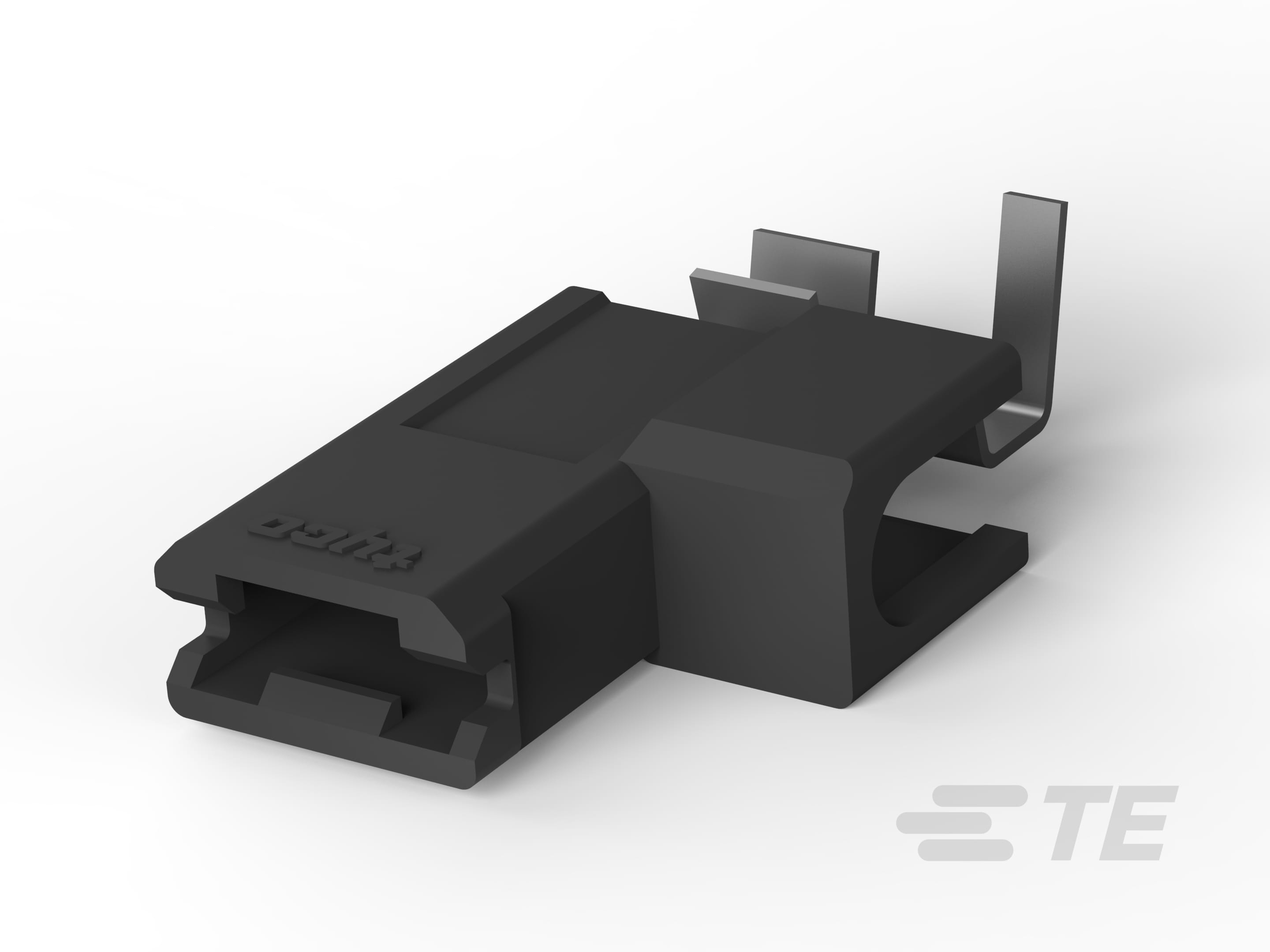

Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Steel, Nickel Plating, Strip/Reel, Ultra-Pod 250
521087-1
Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Steel, Nickel Plating, Strip/Reel, Ultra-Pod 250
-
- Ultra-Pod
- Ultra-Pod 250
- TE Internal #: 521087-1
- TE Internal Description: ULTRA-POD 250 ASSY REC 18-14 AWG NPST
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 18 – 14
-
Wire Size (mm²): .82 – 2.08
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
