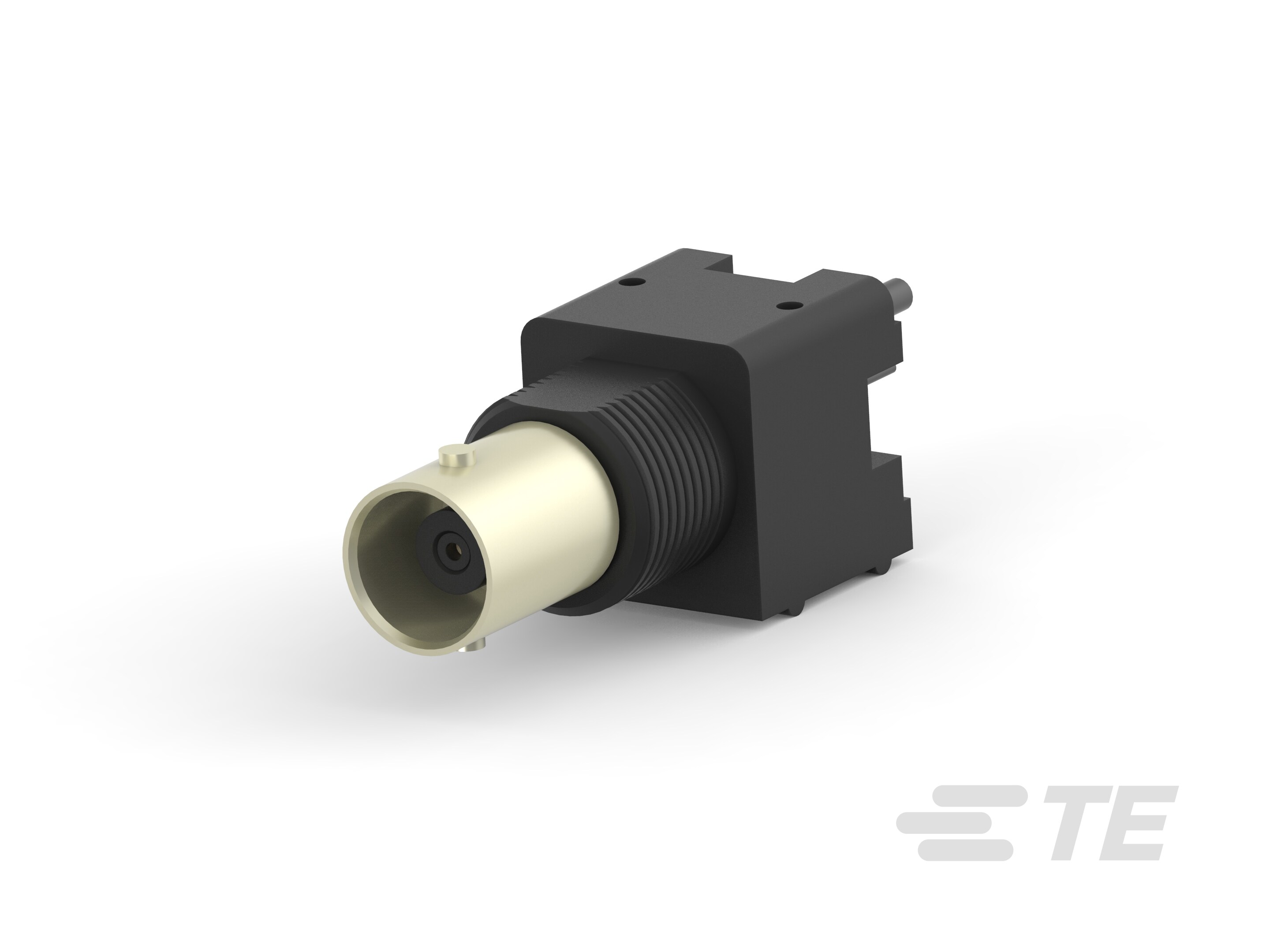

• Mounting Post Length : 3.48 mm [ .137 in ]

• Profile Height from PCB : 34.93 mm [ 1.375 in ]

• RF Connector Mated Outer Diameter (Approximate) : 14.53 mm [ .572 in ]

• PCB Mount Retention : With

• Panel Attachment Style : Rear Mount

• RF Connector Coupling Mechanism : Bayonet

• Connector Mounting Type : Panel Mount

• RF Contact Captivation Method : Mechanical

• Detent : With

• PCB Mount Orientation : Vertical

• Number of Positions : 1

• Number of Coaxial Contacts : 1

• Insulation Option : Uninsulated

• Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]

• RF Connector Center Contact Plating Thickness (µin): 889

• RF Connector Center Contact Underplating Material : Nickel

• RF Connector Center Contact Plating Material : Gold

• RF Connector Center Contact Material : Phosphor Bronze

• Grade : Commercial

• Dielectric Material : Polymethylpentene

• EU RoHS Compliance : Compliant with Exemptions

• EU ELV Compliance : Compliant with Exemptions

• Termination Post & Tail Length : 5.33 mm [ .21 in ]

• Termination Method to PCB : Through Hole - Solder

• Housing Color : Black

• RF Interface : BNC

• RF Connector Style : Jack

• Connector System : Cable-to-Board, Cable-to-Panel

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Impedance (Ω): 50

• Operating Frequency (GHz): 4

• Body Material : Polyester, PBT

• Body Material Finish : Passivated

• Body Plating Material : Nickel
