52730-1

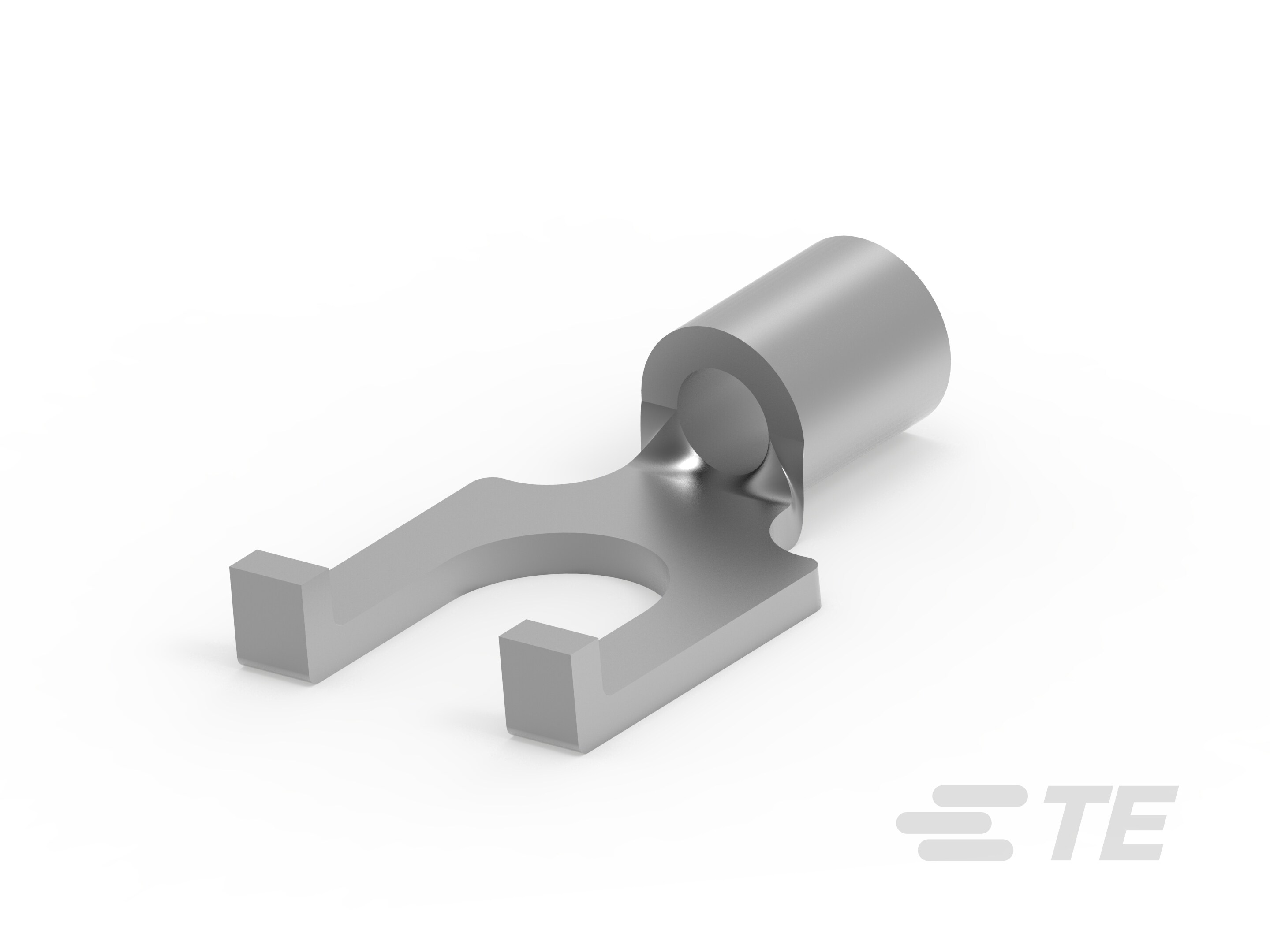

Spade Tongue Terminal, 22 – 16 AWG, #8 / M4 Stud Size, 4.17 mm [.164 in] Stud Diameter, Closed Barrel, Flanged, Tin, Uninsulated
52730-1
Spade Tongue Terminal, 22 – 16 AWG, #8 / M4 Stud Size, 4.17 mm [.164 in] Stud Diameter, Closed Barrel, Flanged, Tin, Uninsulated
-
- SOLISTRAND
- TE Internal #: 52730-1
- TE Internal Description: SOLIS SPDFLG 22-16COM22-18MIL8
-
Packaging Method : Tape Mounted
-
Operating Temperature Range : 170 °C [ 338 °F ]
-
Wire Size (AWG): 22 – 16
-
Tongue Thickness : .79 mm [ .031 in ]
-
Stud Diameter : 4.17 mm [ .164 in ]
Documents
Product Drawings
- terminal, flanged spade, solistrand ENG_CD_52730_D.pdf English
- terminal, flanged spade, solistrand English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_52730-1_G.pdf 3D
- Customer View Model ENG_CVM_CVM_52730-1_G.2d_dxf.zip English
- ENG_CVM_CVM_52730-1_G.3d_igs.zip English
- ENG_CVM_CVM_52730-1_G.3d_stp.zip English
Datasheets & Catalog Pages
- SOLISTRAND - QRG ENG_CS_1773464-2_0919.pdf English
