53555-1

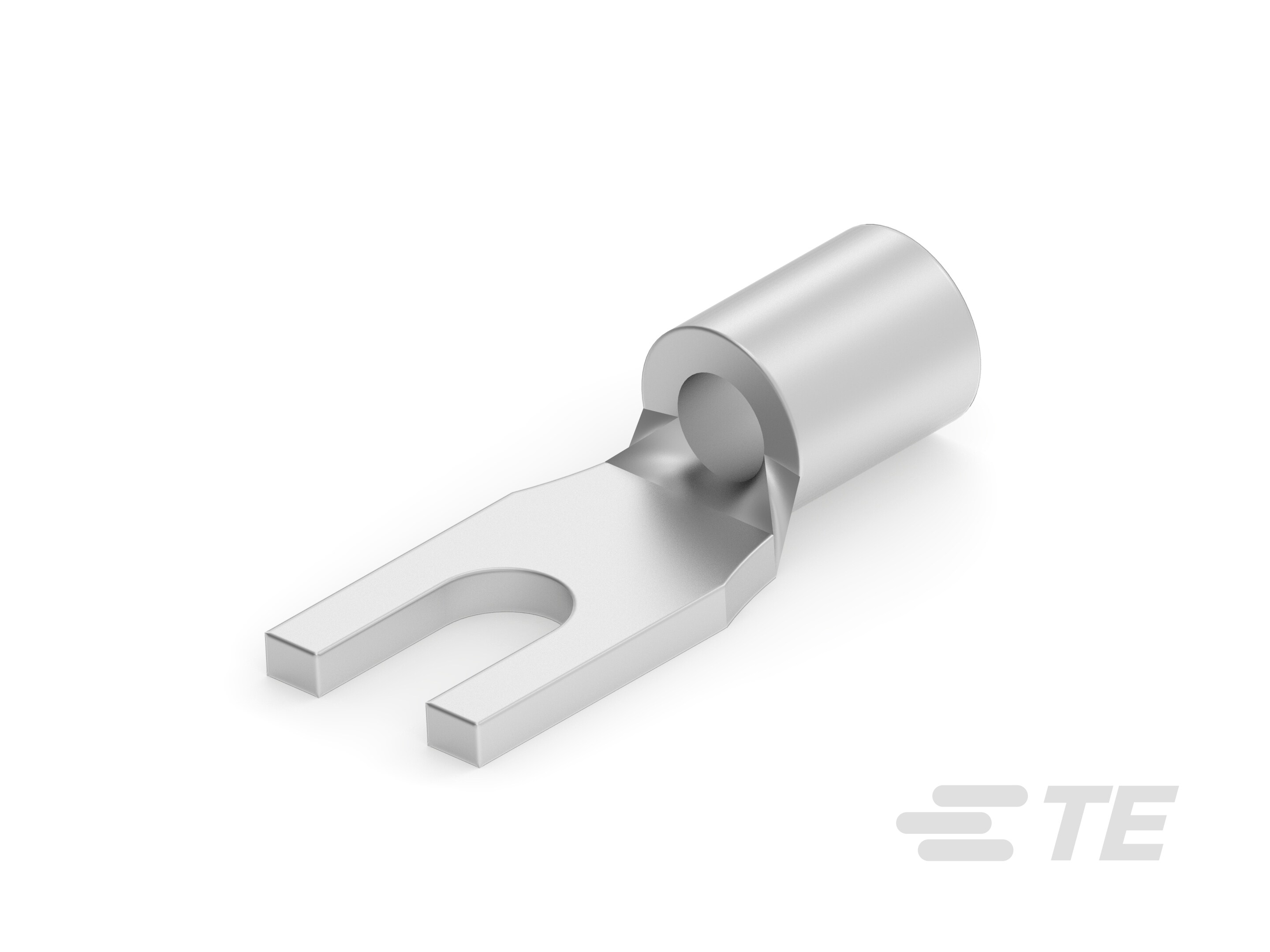

Spade Tongue Terminal, 22 AWG, #2 / M2 Stud, 2.36 mm [.093 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
53555-1
Spade Tongue Terminal, 22 AWG, #2 / M2 Stud, 2.36 mm [.093 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 53555-1
- TE Internal Description: SOLIS SPD 22-16COMM 22-18MIL 2
-
Spade Terminal Type : Spade Tongue Terminal
-
Wire Size (AWG): 22
-
Wire Size (mm²): .3 – 1.42
-
Wire Size (CMA): 509 – 3260
-
Stud Size : M2,
Documents
Product Drawings
- TERMINAL, SPADE TONGUE, SOLISTRAND 22-16 AWG ENG_CD_53555_B1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_53555-1_E_c-53555-1-e-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_53555-1_E_c-53555-1-e.2d_dxf.zip English
- ENG_CVM_CVM_53555-1_E_c-53555-1-e.3d_igs.zip English
- ENG_CVM_CVM_53555-1_E_c-53555-1-e.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049_N.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19791001_C.pdf English
