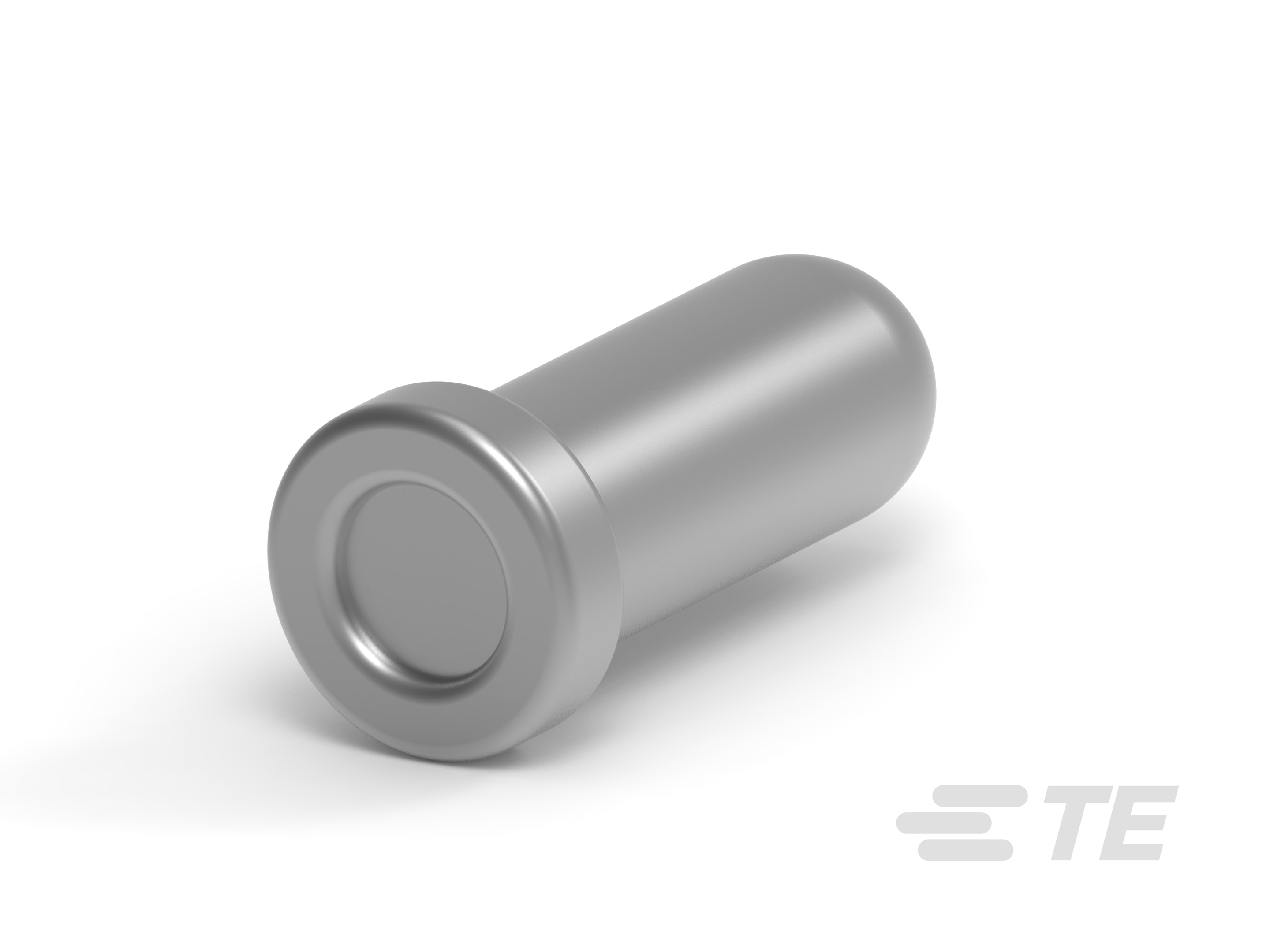

5380635-5
Socket Length 6.45 mm [.254 in], PCB Hole Diameter 2.26 mm [.089 in], Open Bottom, .162 – .653 mm² Wire Size, 25 – 19 AWG Wire Size, Pin Sockets
5380635-5
Socket Length 6.45 mm [.254 in], PCB Hole Diameter 2.26 mm [.089 in], Open Bottom, .162 – .653 mm² Wire Size, 25 – 19 AWG Wire Size, Pin Sockets
- TE Internal #: 5380635-5
- TE Internal Description: REUSABLE COMP RCPT TN SPR8CUP
- All Miniature Spring Sockets: Open Bottom, Beryllium Copper, 7.5A (9)
-
Packaging Method : Loose Piece, Bag
-
Operating Temperature Range : -65 – 126 °C [ -85 – 258 °F ]
-
Socket Length : 6.45 mm [ .254 in ]
-
Connector & Contact Terminates To : Printed Circuit Board
Documents
Product Drawings
- REUSABLE COMPONENT RECEPTACLE English
- REUSABLE COMPONENT RECEPTACLE ENG_CD_5380635_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5380635-5_O.pdf 3D
- Customer View Model ENG_CVM_CVM_5380635-5_O.2d_dxf.zip English
- ENG_CVM_CVM_5380635-5_O.3d_igs.zip English
- ENG_CVM_CVM_5380635-5_O.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-1055_O.pdf English
- S_114-1055_O.tif English
- Product Specification ENG_SS_108-1079_O.pdf English
- S_108-1079_O.tif English
- JPN_SS_108-1079_O.tif Japanese
- JPN_SS_108-1079_O.pdf Japanese
