Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Packaging Quantity : 100

• Packaging Method : Loose Piece

• Stripe Color : Yellow

• Insulation Sleeve Color : Natural

• Product Weight (g): .531

• Washer Radius (Max) : 13.49 mm [ .531 in ]

• Government Qualified Terminal : No

• Voltage Rating (V): 600

• Wire Insulation Support : With

• Number of Holes : 1

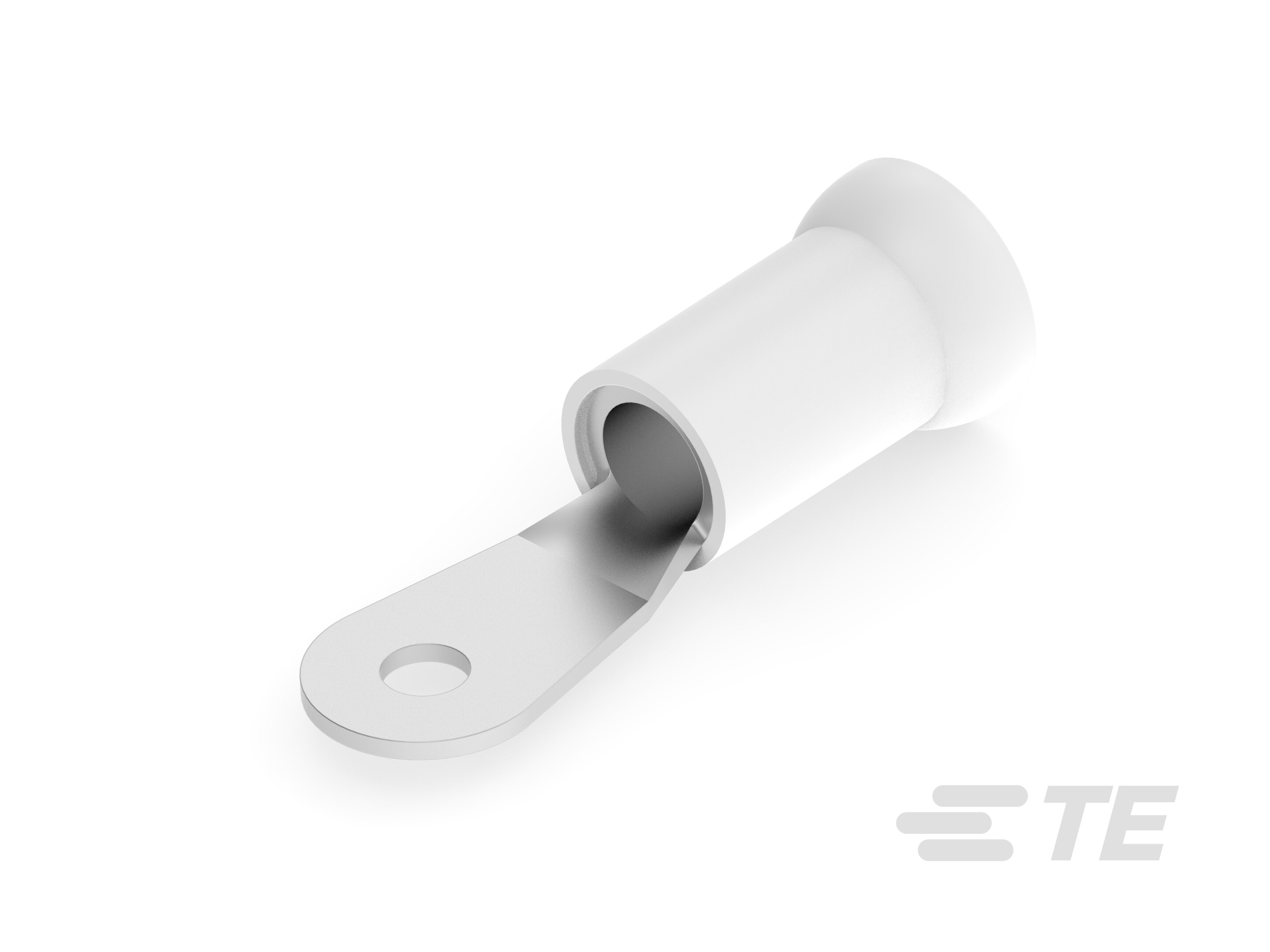

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : 3/8

• Sealable : No

• Wire Insulation Support Retention Type : Insulation Support

• Barrel Type : Closed

• Terminal Orientation : Straight

• Terminal Plating Material : Tin-Lead

• Wire Size (AWG): 4

• Wire Size (mm²): 16.77

• Wire Size (CMA): 33100 – 52600

• Stud Diameter : 9.91 mm [ .39 in ]

• Tongue Thickness : 1.22 mm [ .048 in ]

• Product Length : 51.16 mm [ 2.014 in ]

• Compatible Insulation Diameter (Max) : 13.08 mm [ .515 in ]

• Compatible Insulation Diameter Range : 13.08 mm [ .515 in ]

• Insulation Option : Partially Insulated

• Compatible With Wire Base Material : Copper

• Compatible With Wire Plating Material : Tin
