• Profile Height from PCB : 15.88 mm [ .625 in ]

• RF Connector Mated Outer Diameter (Approximate) : 14.53 mm [ .572 in ]

• PCB Mount Retention : Without

• RF Connector Coupling Mechanism : Bayonet

• Connector Mounting Type : Panel Mount

• RF Contact Captivation Method : Mechanical

• Detent : With

• PCB Mount Orientation : Vertical

• Number of Positions : 1

• Number of Coaxial Contacts : 1

• Insulation Option : Uninsulated

• Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]

• RF Connector Center Contact Plating Thickness (µin): 1080

• RF Connector Center Contact Underplating Material : Nickel, Copper

• RF Connector Center Contact Plating Material : Gold

• RF Connector Center Contact Material : Phosphor Bronze

• Grade : Commercial

• Dielectric Material : Polyester, PBT

• EU RoHS Compliance : Compliant with Exemptions

• EU ELV Compliance : Compliant with Exemptions

• Termination Post & Tail Length : 4.57 mm [ .18 in ]

• Termination Method to PCB : Through Hole - Solder

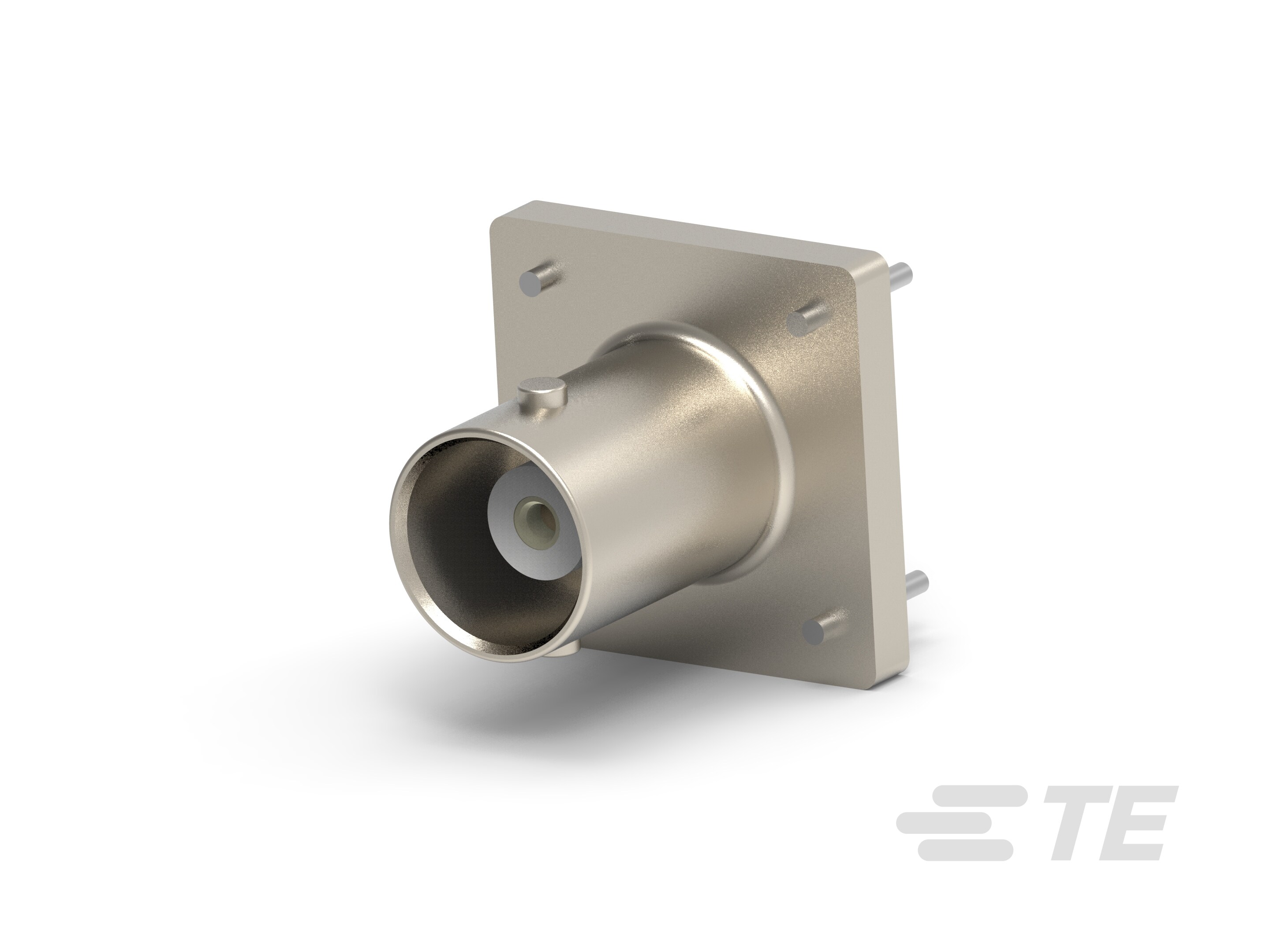

• RF Interface : BNC

• RF Connector Style : Jack

• Connector System : Cable-to-Board

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Impedance (Ω): 50

• Operating Frequency (GHz): 4

• Body Material : Zinc

• Body Plating Material : Nickel
