Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

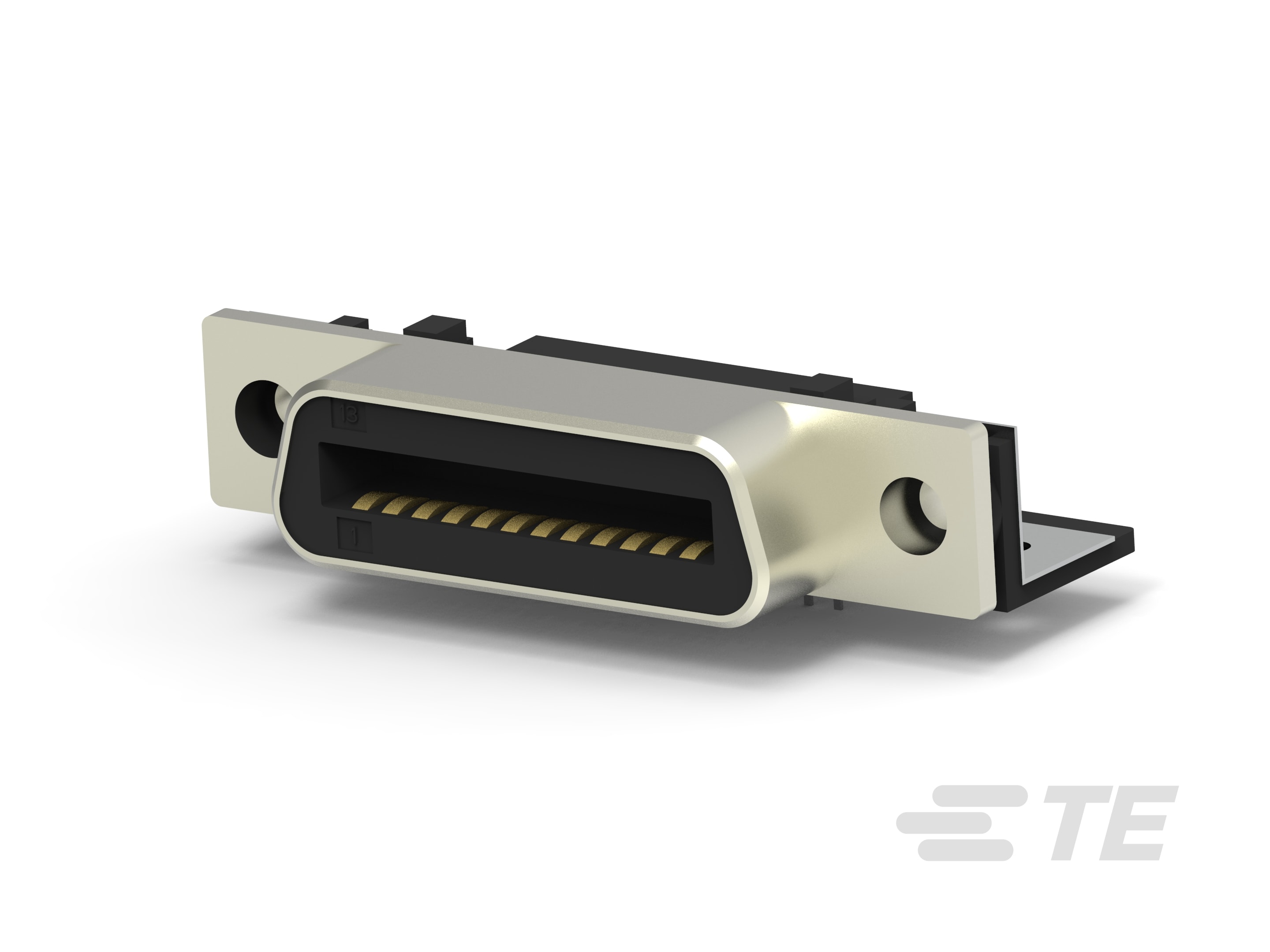

• Housing Material : Polyester GF

• Centerline (Pitch) : 2.16 mm [ .085 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Row-to-Row Spacing : 4.3 mm [ .169 in ]

• Primary Product Color : Black

• Shield Material : Die Cast Metal

• Shield Plating Material : Nickel over Copper

• Shield Plating Finish : Bright

• Connector Profile : Low

• Panel Attachment Style : Rear Mount

• PCB Mount Retention : With

• PCB Mount Retention Type : Boardlock

• Mating Retention : With

• Mating Retention Type : Screwlocks

• Connector Mounting Type : Panel Mount & Board Mount

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Mating Area Plating Material : Gold

• Contact Options : Installed

• Contact Mating Area Plating Material Thickness (µin): 30

• Contact Current Rating (Max) (A): 3.5

• Shielded : Yes

• Circuit Application : Signal

• Packaging Method : Tube

• Packaging Quantity : 10

• Termination Method to PCB : Through Hole - Solder

• Rectangular Termination Post & Tail Thickness : .25 mm [ .01 in ]

• Rectangular Termination Post & Tail Width : .5 mm [ .019 in ]

• Connector & Housing Type : Receptacle

• Connector System : Cable-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Positions : 24

• Number of Rows : 2

• PCB Mount Orientation : Right Angle

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]
