Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

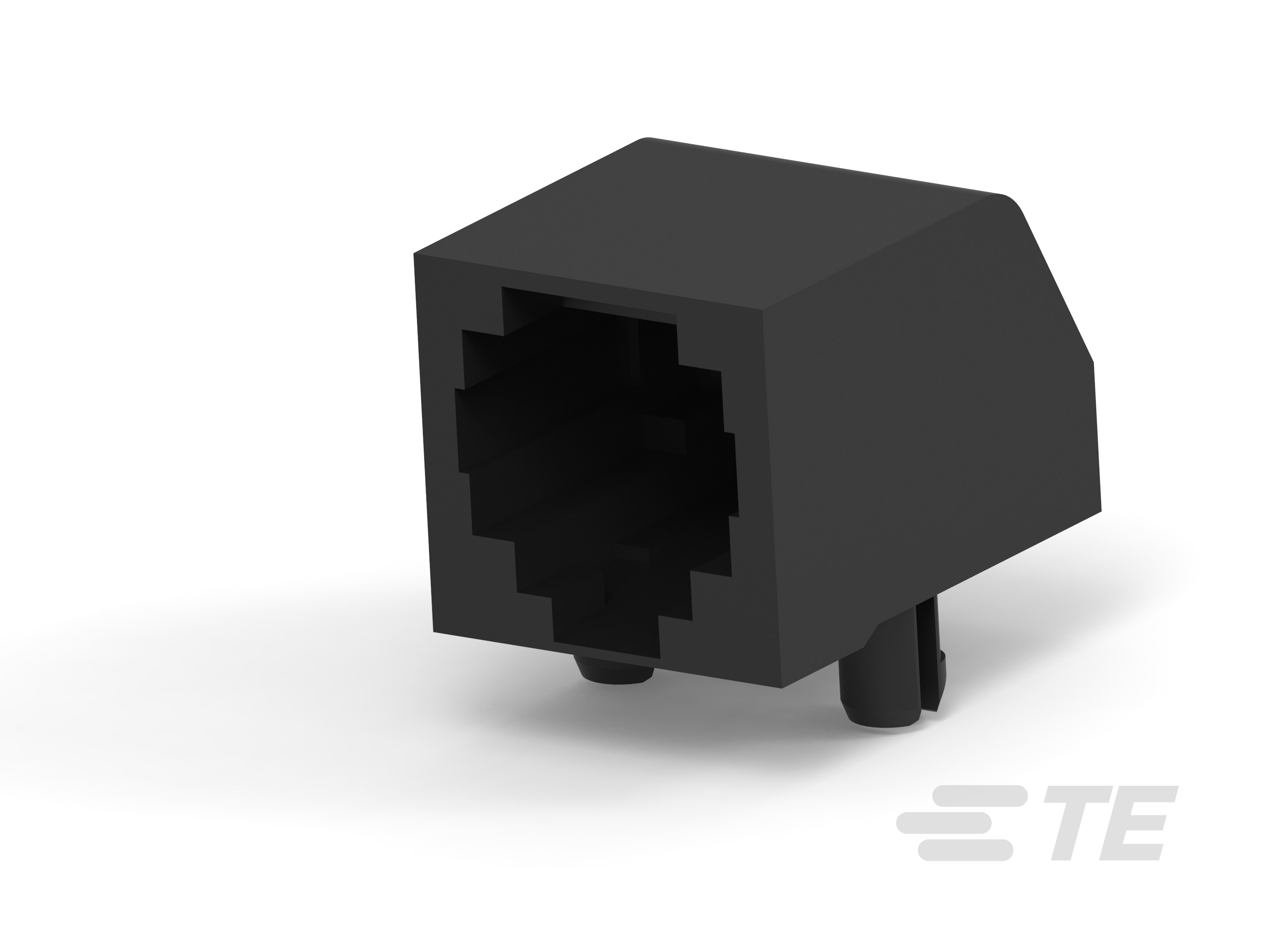

• Connector System : Cable-to-Board, Cable-to-Panel

• Connector & Contact Terminates To : Printed Circuit Board

• Modular Jacks & Plugs Products : RJ Type Jacks & Plugs

• Modular Connector Style : Jack

• PCB Mount Orientation : Right Angle

• Port Configuration : Single Port

• Port Matrix Configuration : 1 x 1

• Connector Contact Density : Standard

• Number of Positions : 6

• Number of Loaded Positions : 2

• Connector Profile : Low

• Modular Jack Latch Orientation : Standard - Latch Down

• Contact Underplating Material : Nickel

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Plating Material Thickness (µin): 50

• Contact Mating Area Plating Material : Gold (Au)

• PCB Contact Termination Area Plating Material : Tin

• Contact Current Rating (Max) (A): .2, 1.5

• Termination Method to PCB : Through Hole - Solder

• Panel Mount Feature : With

• Connector Mounting Type : Board Mount

• Centerline (Pitch) : 1.02 mm [ .04 in ]

• Mating Entry Location : Side

• Housing Color : Black

• Housing Material : PBT Polyester

• Connector Height : 12.7 mm [ .5 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• PCB Tail Length : 3.8 mm [ .15 in ]

• Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

• Circuit Application : Signal

• Shielded : No

• UL Flammability Rating : UL 94V-0

• Performance Category : Cat 3
