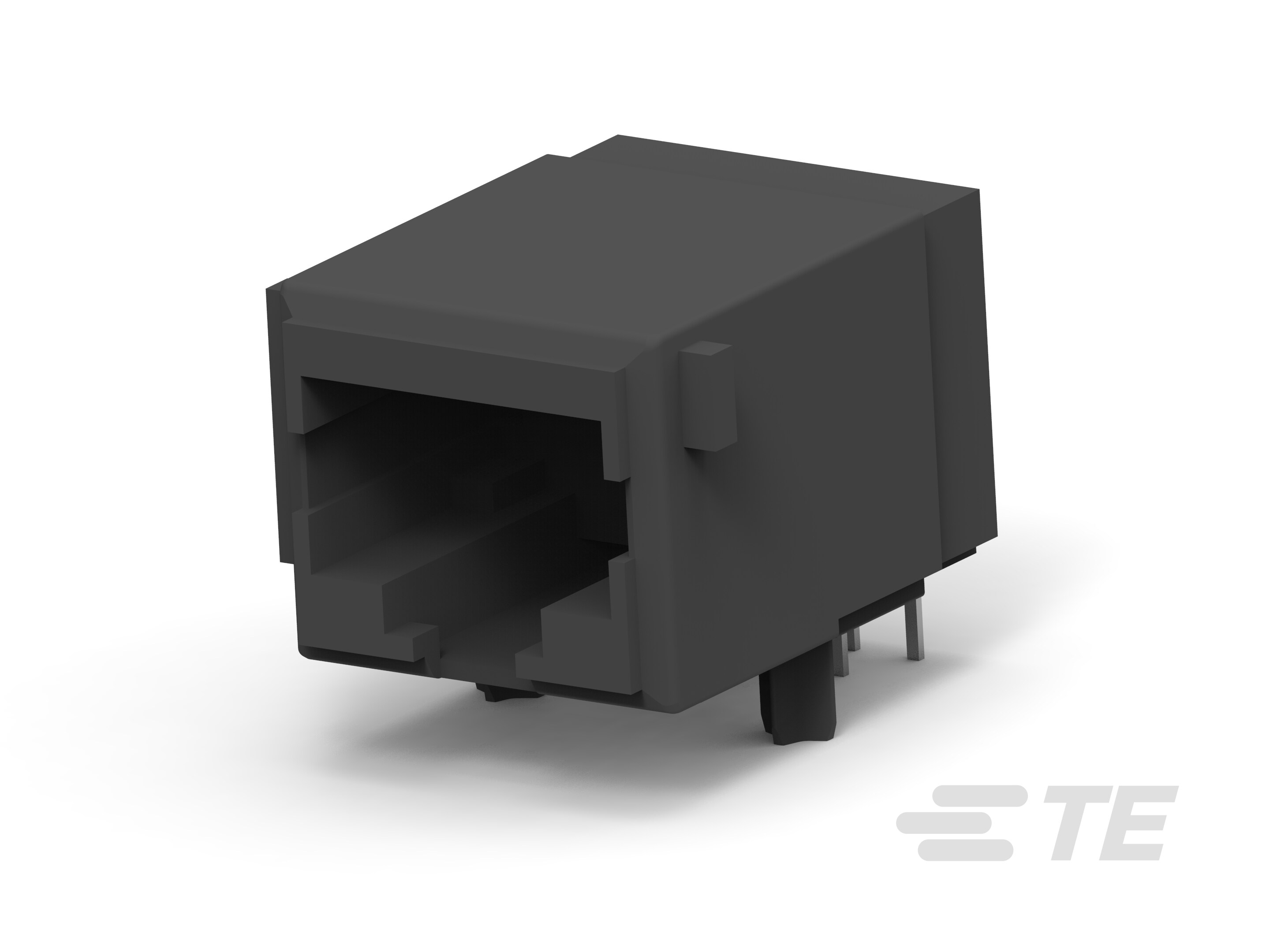

• Connector Product Type : Connector Assembly

• Modular Jack & Plug Interface Type : RJ45

• Modular Jacks & Plugs Products : RJ Type Jacks & Plugs

• Modular Connector Style : Jack

• Grounding Options : None

• Connector & Contact Terminates To : Printed Circuit Board

• Port Configuration : Single Port

• Port Matrix Configuration : 1 x 1

• Connector Contact Density : Standard

• Number of Positions : 8

• Number of Loaded Positions : 8

• PCB Mount Orientation : Right Angle

• Modular Jack Latch Orientation : Standard - Latch Down

• Connector Profile : Low

• PCB Contact Termination Area Plating Material : Tin

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): .2, 1.5

• Contact Mating Area Plating Material : Gold (Au)

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Plating Material Thickness : 1.27 µm [ 50 µin ]

• Termination Method to PCB : Through Hole - Solder

• Termination Post & Tail Length : 3.56 mm [ .14 in ]

• Panel Mount Feature Type : Panel Stops

• Panel Mount Feature : With

• Connector Mounting Type : Panel Mount

• Mating Entry Location : Side

• Centerline (Pitch) : 1.02 mm [ .04 in ]

• Housing Color : Black

• Housing Material : High Temperature Nylon

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Connector Height : 13.39 mm [ .527 in ]

• Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

• Indicator Type : No Indicator

• Shielded : No

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0

• Performance Category : Cat 5
