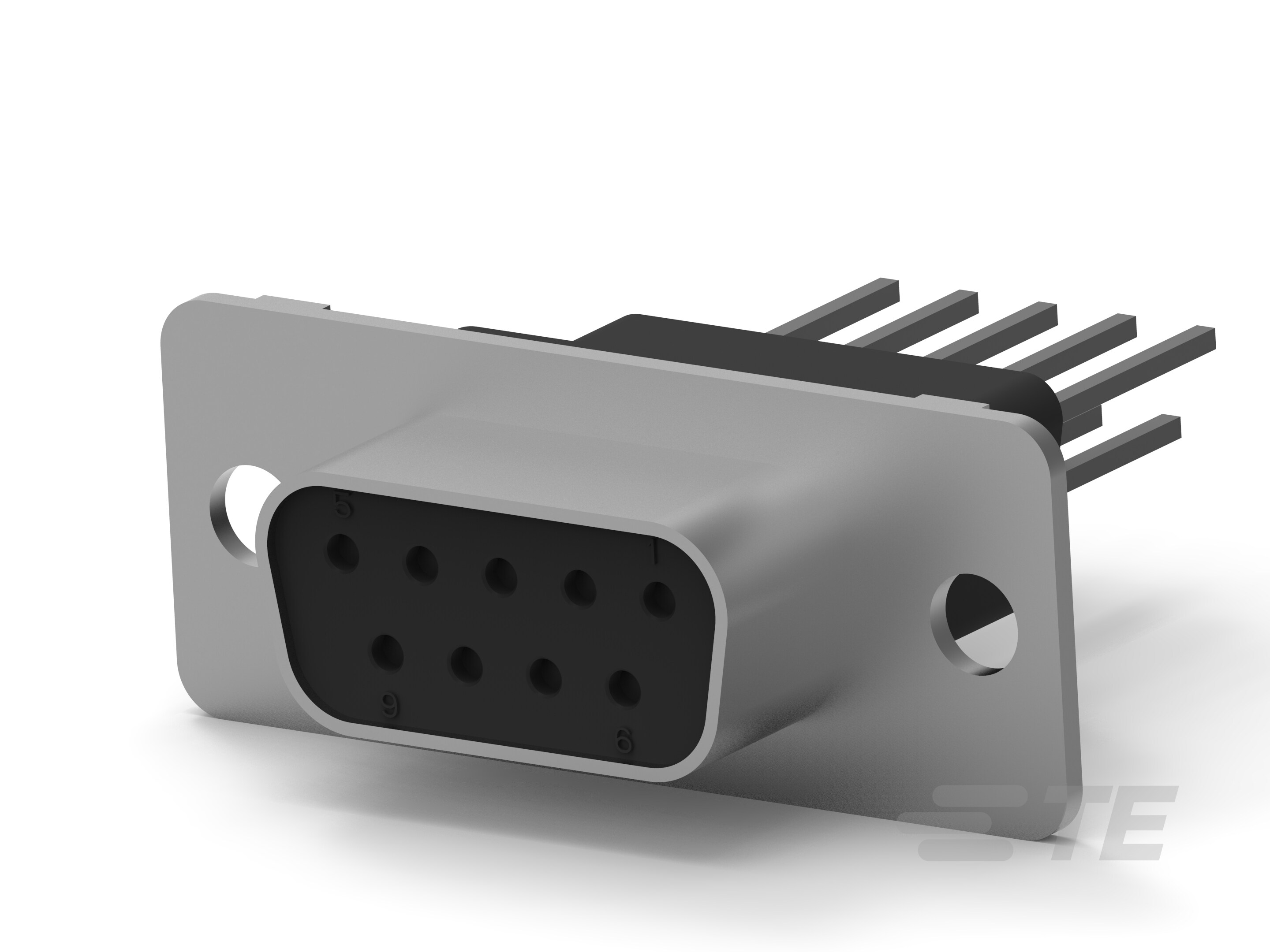

• Shell Material Configuration : Full Metal Shell

• Connector & Housing Type : Receptacle

• Connector System : Board-to-Board

• Connector Shell Size : 1

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Positions : 9

• Number of Rows : 2

• PCB Mount Orientation : Vertical

• Primary Product Color : Black

• Shell Plating Material : Tin

• Insert Material : Nylon GF, PBT GF

• Connector Profile : Standard

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Plating Material : Gold (Au)

• Contact Options : Installed

• Contact Mating Area Plating Material Thickness (µin): 30

• Contact Underplating Material : Nickel

• Contact Shape & Form : Square

• Contact Current Rating (Max) (A): 6

• Square Termination Post & Tail Dimension : .63 mm [ .025 in ]

• Termination Post & Tail Length : 10.85 mm [ .427 in ]

• Termination Method to PCB : Through Hole - Solder

• Mounting Hole Diameter (mm): 3.05

• PCB Mount Retention : With

• PCB Mount Retention Type : Mounting Hole

• Mating Retention : Without

• Connector Mounting Type : Board Mount

• Shell Material : Carbon Steel

• Housing Material : Nylon GF, PBT GF

• Centerline (Pitch) : 2.77 mm [ .109 in ]

• PCB Thickness (Recommended) : 1.57 – 2.36 mm [ .062 – .093 in ]

• Row-to-Row Spacing : 2.84 mm [ .112 in ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Shielded : No

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
