Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

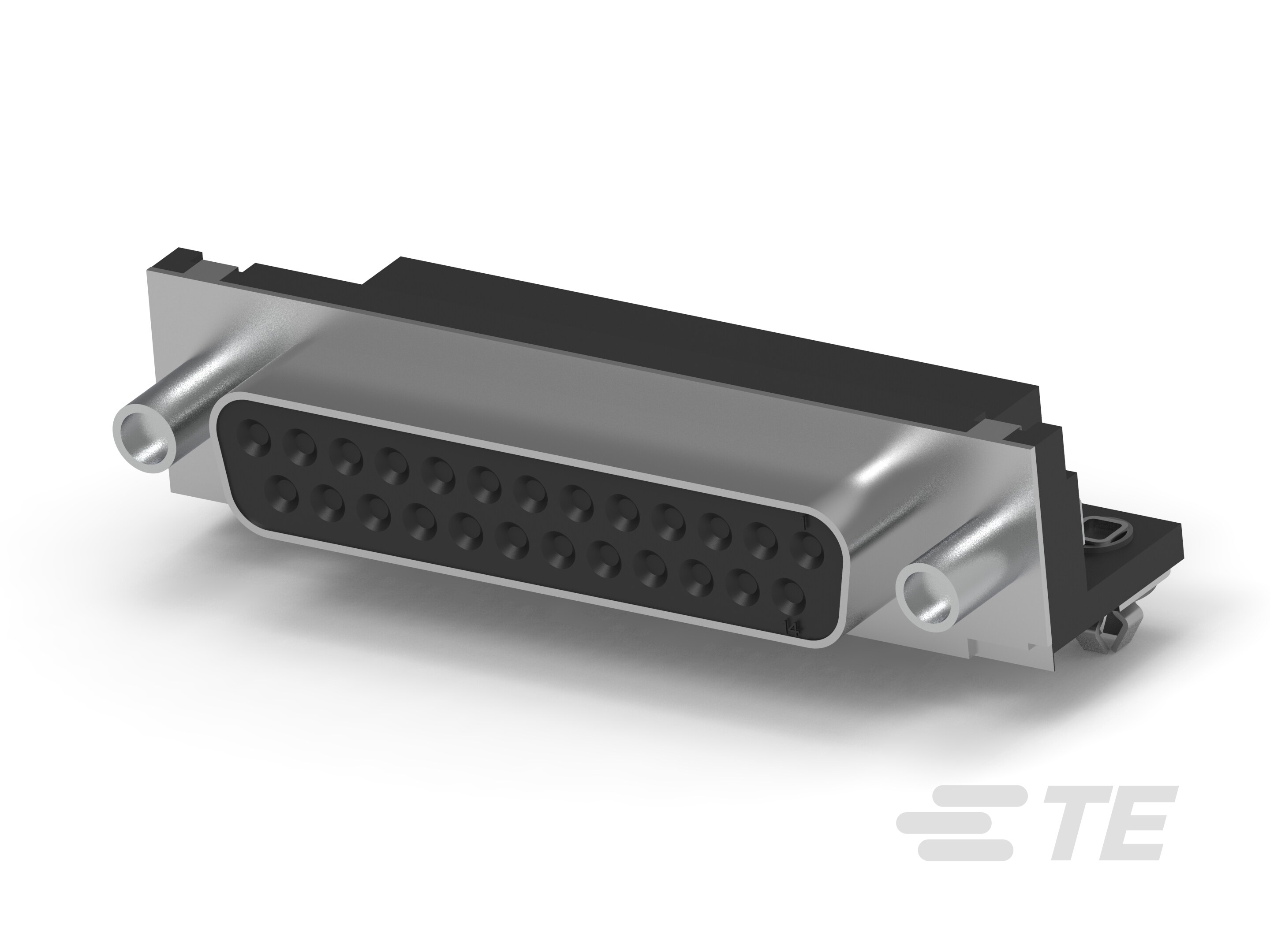

• Shell Material Configuration : Front Metal Shell

• Ground Feature Type : Grounding Straps

• Connector & Housing Type : Receptacle

• Connector System : Board-to-Board

• Connector Shell Size : 3

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Rows : 2

• PCB Mount Orientation : Right Angle

• Number of Positions : 25

• Connector Profile : Standard

• Primary Product Color : Black

• Mating Feature Plating Material : Clear Chromate

• Mating Feature Material : Zinc

• Shell Plating Material : Tin

• Insert Material : Zinc

• Assembly Process Feature Material : Copper Alloy

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Plating Material : Gold Flash

• Contact Shape & Form : Round

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): 6

• Contact Options : Installed

• Termination Post & Tail Length : 3.18 mm [ .125 in ]

• Termination Method to PCB : Through Hole - Solder

• Termination Post & Tail Diameter : .63 mm [ .025 in ]

• Assembly Process Feature Plating Material : Tin

• PCB Mount Alignment : With

• Mating Alignment : With

• PCB Mount Retention Type : Boardlock

• Mating Retention : With

• Mounting Hole Diameter (mm): 3.18

• Mounting Feature Material : Brass

• Mounting Feature Plating Material : Tin

• PCB Mount Retention : With

• Mating Retention Type : Female Screwlocks, Fixed

• Connector Mounting Type : Board Mount

• Shell Material : Steel

• Housing Material : Thermoplastic

• Centerline (Pitch) : 2.74 mm [ .108 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Row-to-Row Spacing : 2.84 mm [ .112 in ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
