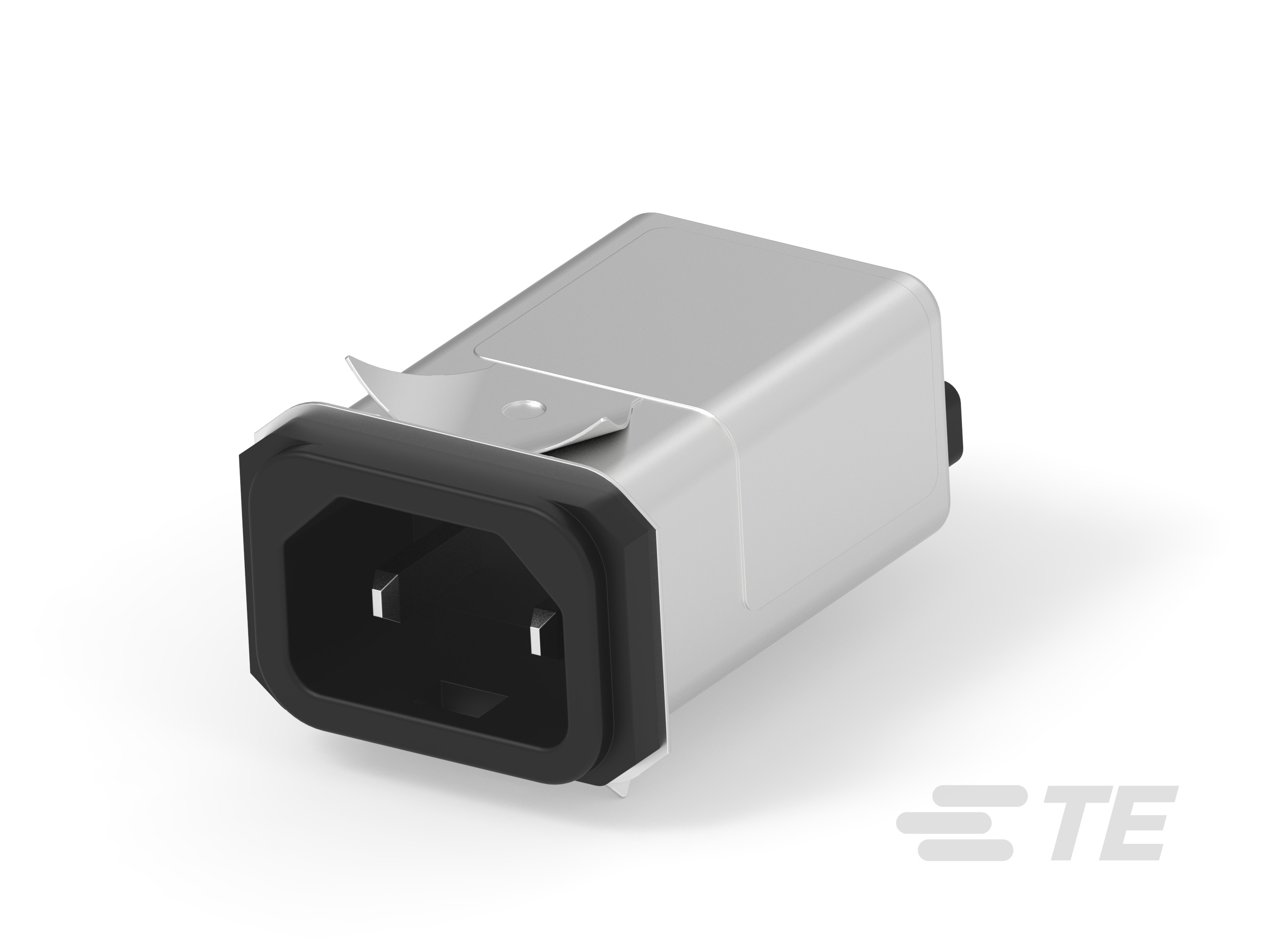

3IHS1
Medical, Complete Shield, Locking Socket & Shrouded Output, 2 MOPP, 3A Current Rating, .187" FASTON Output, Corcom IH, Multi-Function Inlet Filters
3IHS1
Medical, Complete Shield, Locking Socket & Shrouded Output, 2 MOPP, 3A Current Rating, .187" FASTON Output, Corcom IH, Multi-Function Inlet Filters
-
- Corcom
- Corcom IH
- TE Internal #: 6-1609157-2
- TE Internal Description: 3IHS1=F8459
- All IEC Filtered Inlets, Corcom IH Series (2)
-
Operating Temperature Range (°C): -10 – 40
-
Leakage Current (Max) (120VAC, 60Hz) (µA): 3
-
Filter Connector Type : IEC 60320-1 C-18
-
Filter Mode of Operation : 2 MOPP
-
Ground Choke Option : No
Documents
Product Drawings
- IH SERIES MEDICAL INLET ENG_CD_P-1609003-0_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_6-1609157-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_6-1609157-2_A.2d_dxf.zip English
- ENG_CVM_CVM_6-1609157-2_A.3d_igs.zip English
- ENG_CVM_CVM_6-1609157-2_A.3d_stp.zip English
