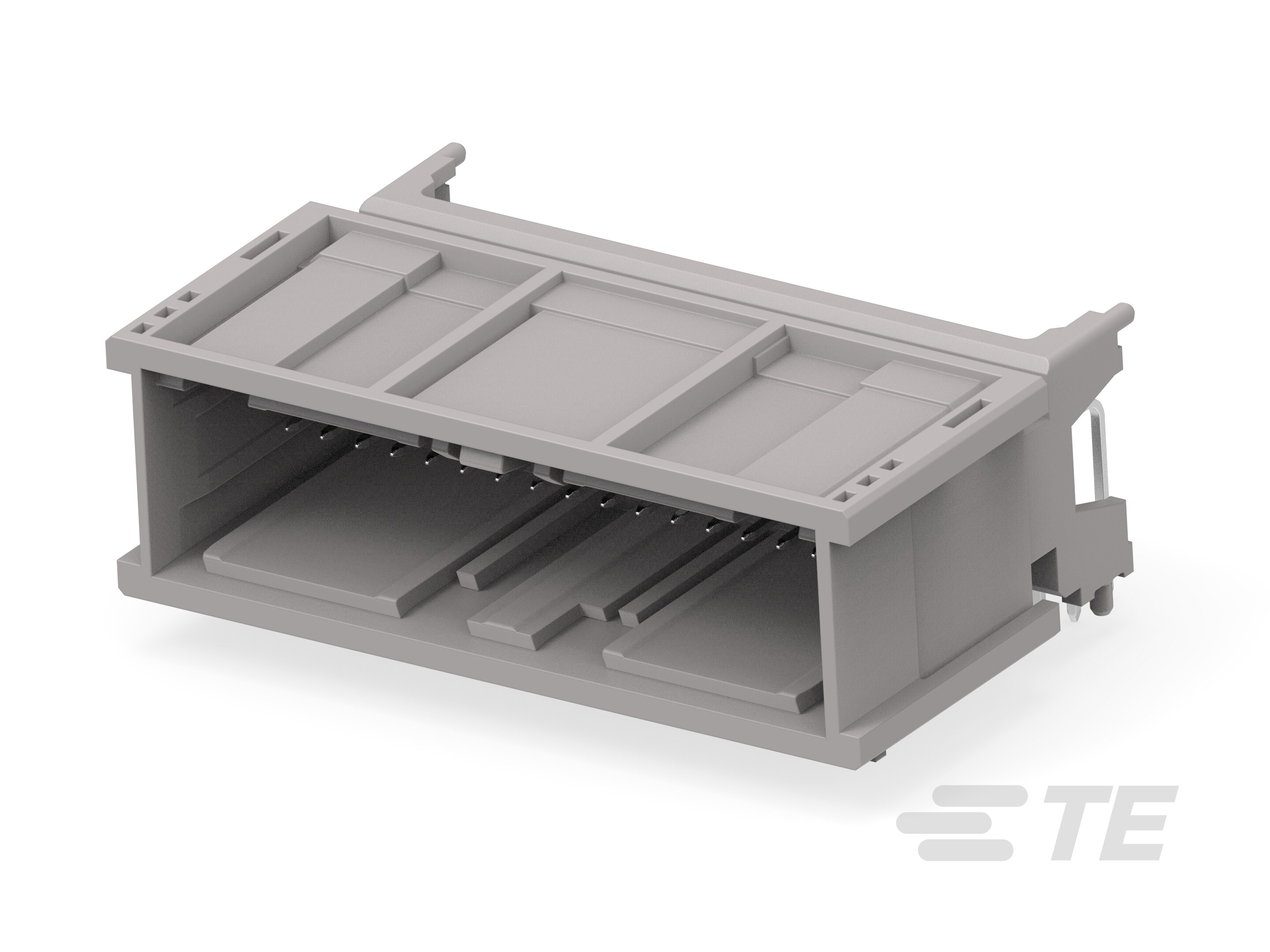

• Connector & Contact Terminates To : Printed Circuit Board

• Sealable : No

• PCB Connector Assembly Type : PCB Mount Header

• Header Type : Fully Shrouded

• Mixed & Hybrid Header : No

• Connector Shape : Rectangular

• Connector System : Wire-to-Board

• Number of Rows : 2

• Number of Sections : 1

• Number of Positions : 32

• Number of Signal Positions : 32

• PCB Mount Orientation : Horizontal

• Operating Voltage (VDC): 12

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Gray

• Connector & Keying Code : C

• Mating Tab Thickness : .4 mm [ .016 in ]

• Contact Type : Tab

• Mating Tab Width : .5 mm [ .02 in ]

• Contact Mating Area Plating Material : Tin

• Contact Size : .5mm

• PCB Mount Alignment : With

• Mounting Holes : Without

• PCB Mount Retention : Without

• Mating Alignment : With

• Panel Mount Feature : Without

• Mating Retention : With

• Mating Retention Type : Locking Interface

• Centerline (Pitch) : 1.8 mm [ .071 in ]

• PCB Thickness (Recommended) : .8 mm [ .031 in ]

• Profile Height from PCB : 22.95 mm [ .904 in ]

• Connector Length : 38.05 mm [ 1.49 in ]

• Connector Width : 25.3 mm [ .996 in ]

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Operating Temperature (Max) (°C): 65, 70, 75, 80, 85, 90, 100, 105

• Operating Temperature (Max) (°F): 149, 158, 167, 176, 185, 194, 212, 221, 230, 248

• Shielded : No

• Circuit Application : Signal

• Solder Process : Reflow Solder

• UL Flammability Rating : UL 94V-0

• Packaging Method : Tape & Reel

• Packaging Quantity : 1
