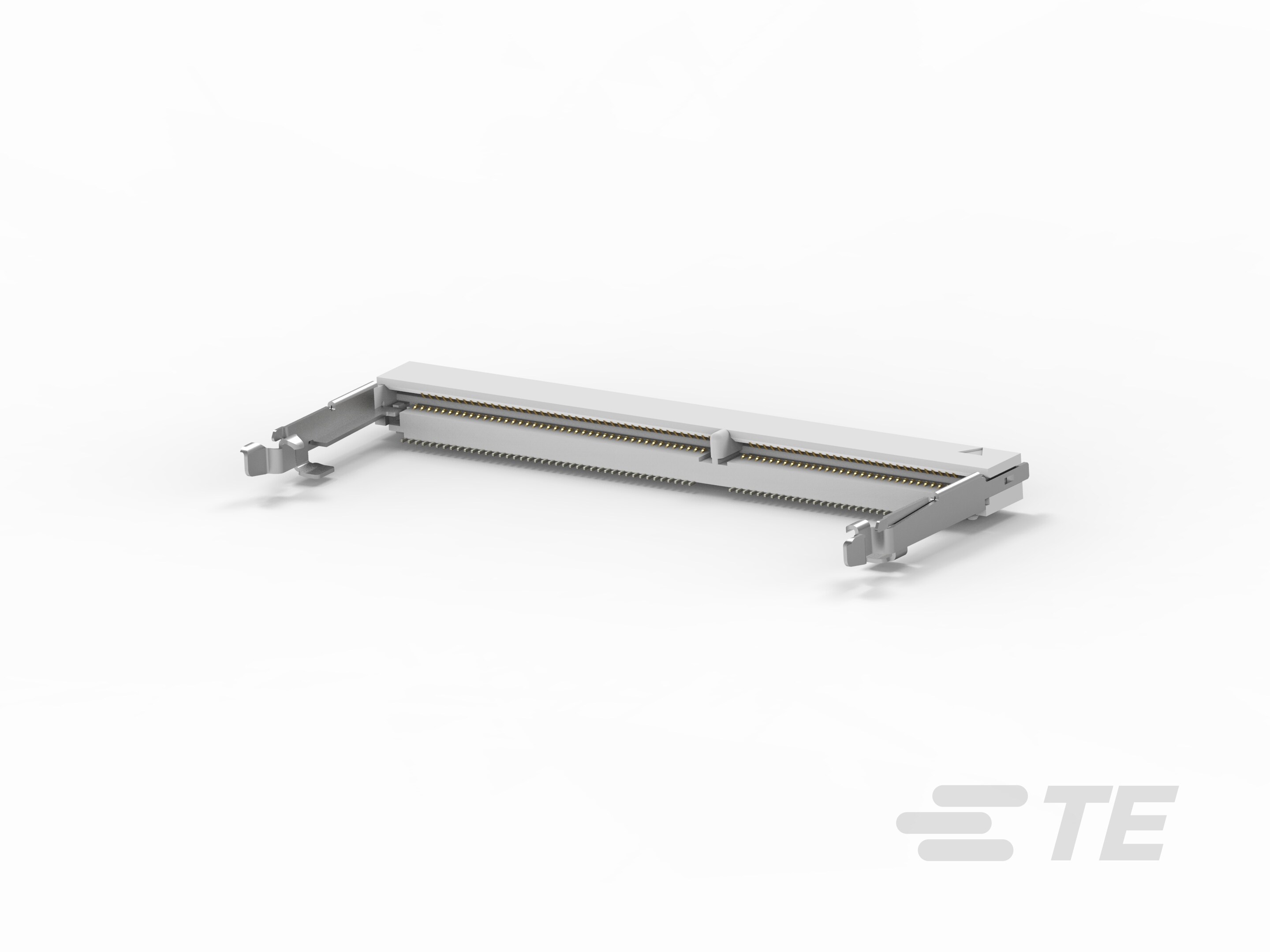

Small Outline (SO), Stack Height 5.2 mm [.205 in], Right Angle Module Orientation, 144 Position, AMP-METRIMATE, SO DIMM Sockets
6-390376-1
Small Outline (SO), Stack Height 5.2 mm [.205 in], Right Angle Module Orientation, 144 Position, AMP-METRIMATE, SO DIMM Sockets
-
- AMP-METRIMATE
- TE Internal #: 6-390376-1
- TE Internal Description: SKT,SODIMM,144P,SDRAM3.3V,STD,T&R
- All DDR3 SO DIMM Sockets (12)
-
DRAM Type : Small Outline (SO)
-
Stack Height : 5.2 mm [ .205 in ]
-
Module Orientation : Right Angle
-
Number of Positions : 144
-
Centerline (Pitch) : .8 mm [ .031 in ]
