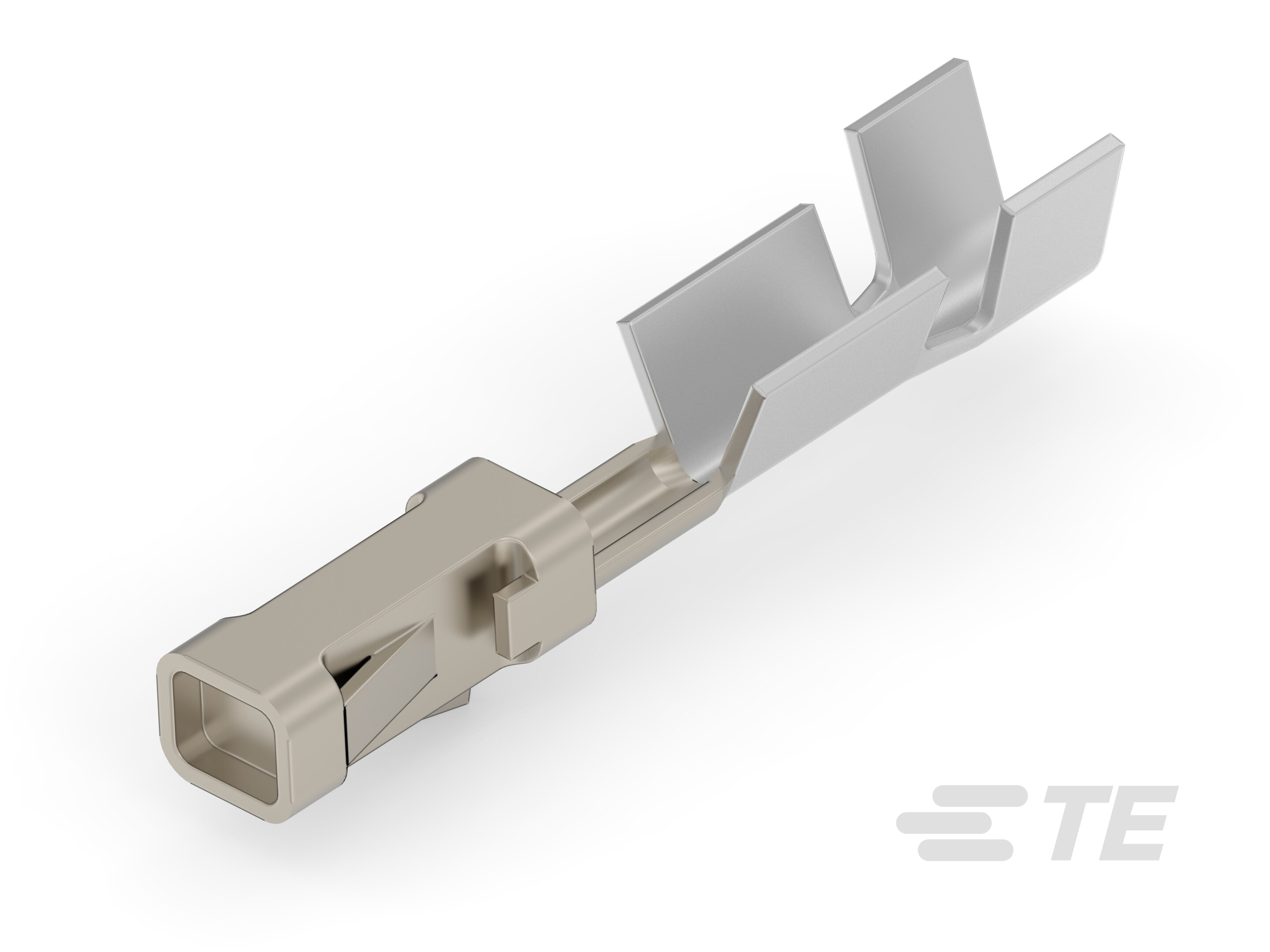

• Barrel Type : Open

• Wire Contact Termination Area Plating Thickness : 2.54 – 5.08 µm [ 100 – 200 µin ]

• Contact Length : 11.3 mm [ .445 in ]

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Wire Contact Termination Area Plating Material Finish : Matte

• Contact Mating Area Plating Material Thickness : .38 µm [ 15 µin ]

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Orientation : Straight

• Contact Underplating Material : Nickel

• Contact Type : Socket

• Contact Mating Area Plating Material : Gold

• Wire Contact Termination Area Plating Material : Tin

• Contact Retention Within Housing : With

• Contact Size : .64mm

• Contact Base Material : Copper Tin Phosphor Bronze

• Contact Current Rating (Max) (A): 3

• Dielectric Withstanding Voltage (Max) (V): 750

• Insulation Resistance (MΩ): 5000

• Termination Resistance (mΩ): 12

• Operating Voltage (VAC): 250

• Wire Insulation Support : With

• Contact Retention Type Within Housing : Locking Lance

• Compatible Insulation Diameter Range : 1.55 mm [ .061 in ]

• Wire Size (AWG): 26 – 22

• Wire Size (mm²): .12 – .4

• Wire Size (CMA): 236.823 – 789.41

• Packaging Method : Reel

• Packaging Quantity : 12500

• Applied Pressure : Standard

• Discrete Wire Type : Stranded

• Compatible With Approved Standards Products : UL E28476, CSA LR7189

• Compatible With Wire & Cable Type : Discrete Wire

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire & Cable

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Circuit Application : Power & Signal
