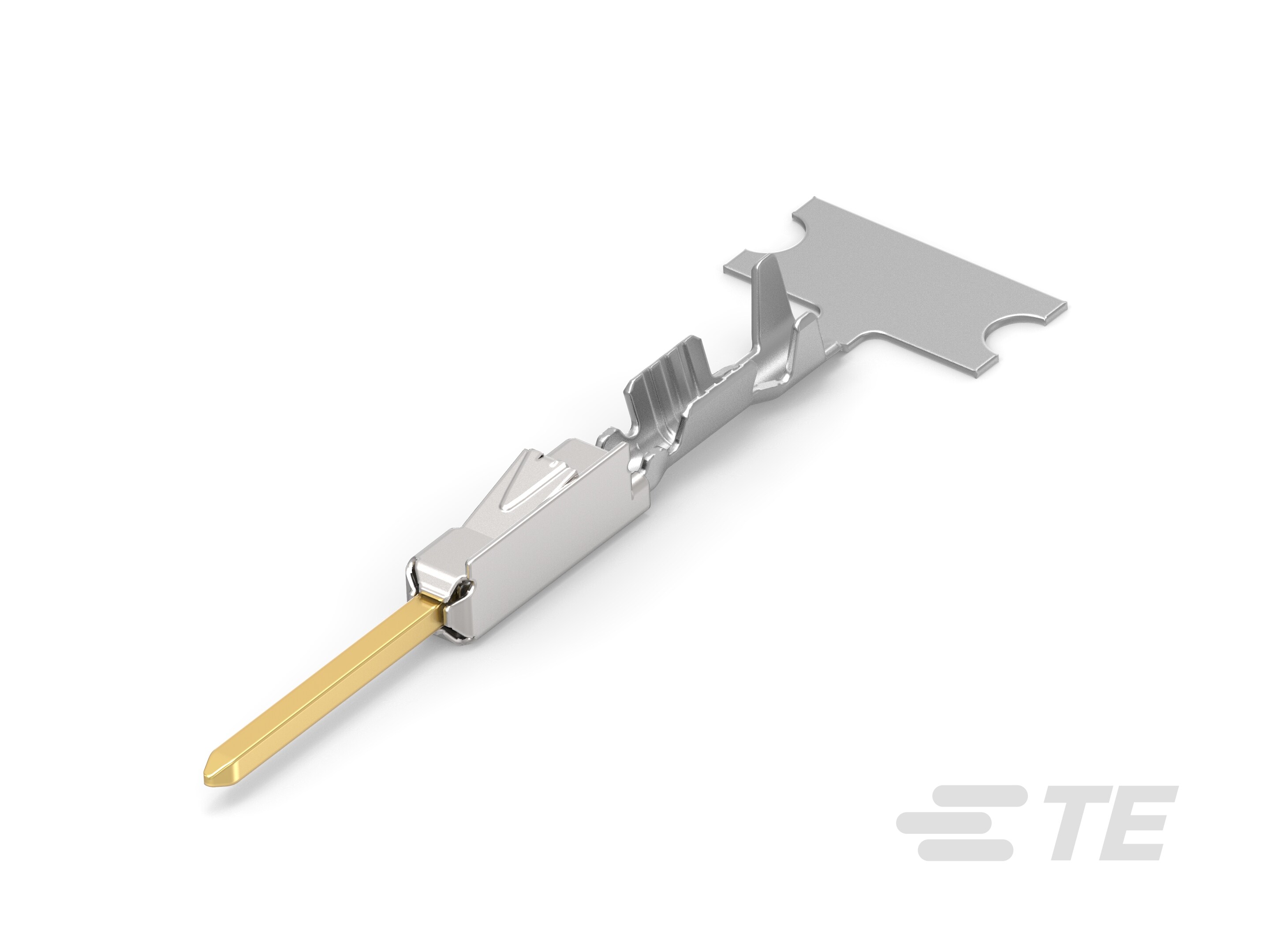

• Primary Locking Feature : Locking Lance

• Sealable : No

• Receptacle Style : 180°

• Interface Plating : Gold (Au)

• Mating Tab Thickness : .63 mm [ .025 in ]

• Terminal Type : Tab

• Mating Tab Width : .63 mm [ .025 in ]

• Contact Fabrication : Stamped & Formed

• Typical Current Rating (A): 7.5

• Wire Contact Termination Area Plating Material : Gold

• Contact Size : .63mm

• Crimp Type : F-Crimp

• Product Terminates To : Wire

• Termination Method to Wire & Cable : Crimp

• Wire Size (AWG): 24 – 22

• Wire Size Search (mm²): .2, .25, .3

• Compatible Insulation Diameter Range : 1.1 – 1.6 mm [ .043 – .063 in ]

• Wire Size (mm²): .2 – .35

• Wire Size Search (AWG): 22, 23, 24

• Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

• Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120

• Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248

• Insulation Option : Uninsulated

• Conforms to KOMAX Automatic Component Insertion Guideline : Yes, per Version 5.0 (March 2018)

• Compatible With Wire Base Material : Copper

• Compatible With Agency/Standards Products : LV214

• Packaging Method : Reel

• Packaging Quantity : 13000
