60234-2

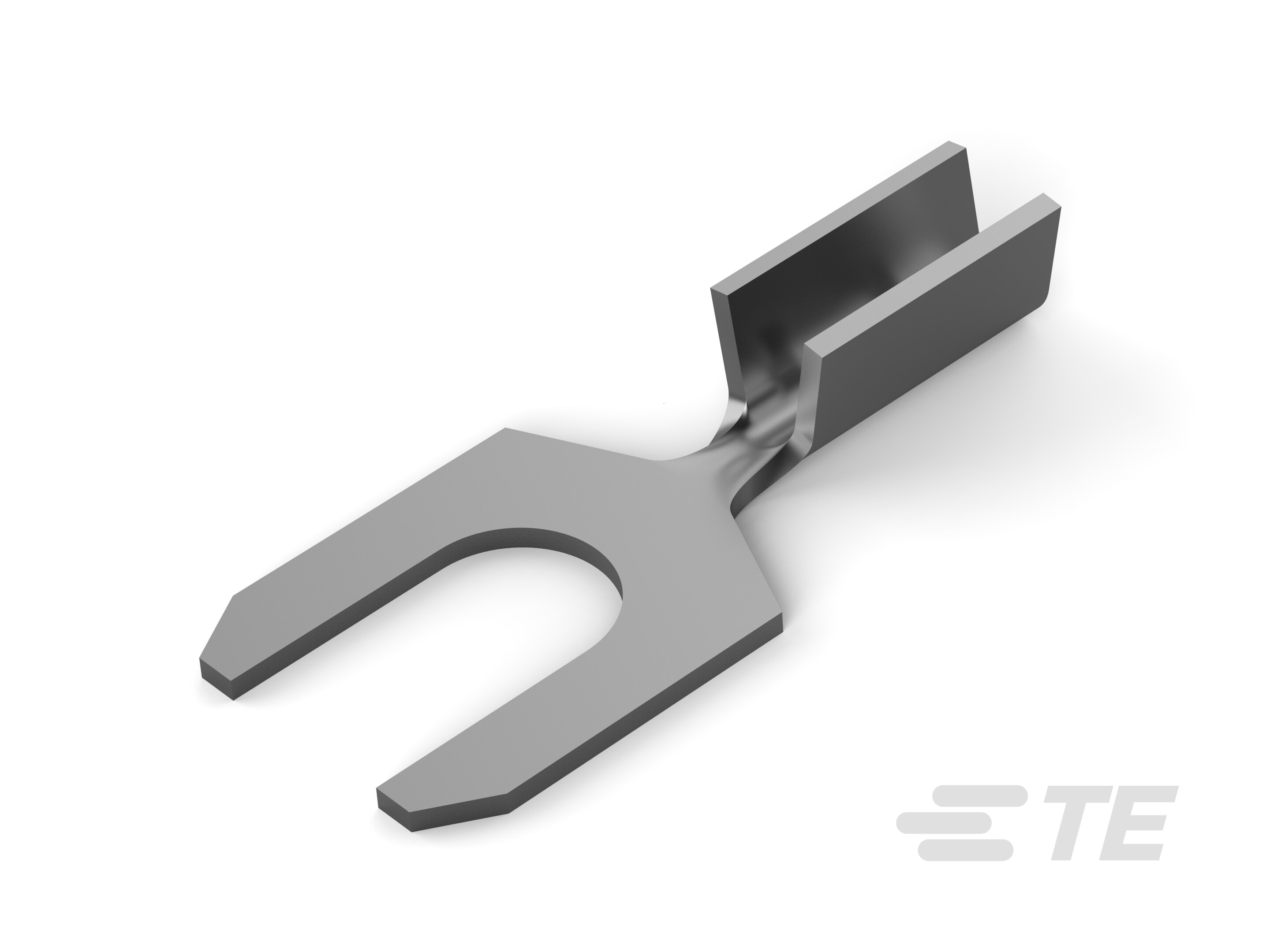

Spade Tongue Terminal, 26 – 22 AWG, #5 / M3 Stud Size, 3.18 mm [.125 in] Stud Diameter, Open Barrel, Straight, Tin, Uninsulated
60234-2
Spade Tongue Terminal, 26 – 22 AWG, #5 / M3 Stud Size, 3.18 mm [.125 in] Stud Diameter, Open Barrel, Straight, Tin, Uninsulated
- TE Internal #: 60234-2
- TE Internal Description: SPADE 26-22 AWG TPBR
-
Packaging Method : Strip/Reel
-
Operating Temperature Range : 110 °C [ 230 °F ]
-
Wire Size (AWG): 26 – 22
-
Tongue Thickness : .41 mm [ .016 in ]
-
Stud Diameter : 3.18 mm [ .125 in ]
Documents
Product Drawings
- SPADE,INSULATION PIERCING English
- SPADE,INSULATION PIERCING ENG_CD_60234_P.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_60234-2_Z_c-60234-2-z-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_60234-2_Z_c-60234-2-z.2d_dxf.zip English
- ENG_CVM_CVM_60234-2_Z_c-60234-2-z.3d_igs.zip English
- ENG_CVM_CVM_60234-2_Z_c-60234-2-z.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2084_F5.pdf English
- Engineering Report ENG_SS_502-1285_A.pdf English
- Product Specification ENG_SS_108-16000_C.pdf English
- ENG_SS_108-16001_A.pdf English
