• Shape Description : Circular/Oval

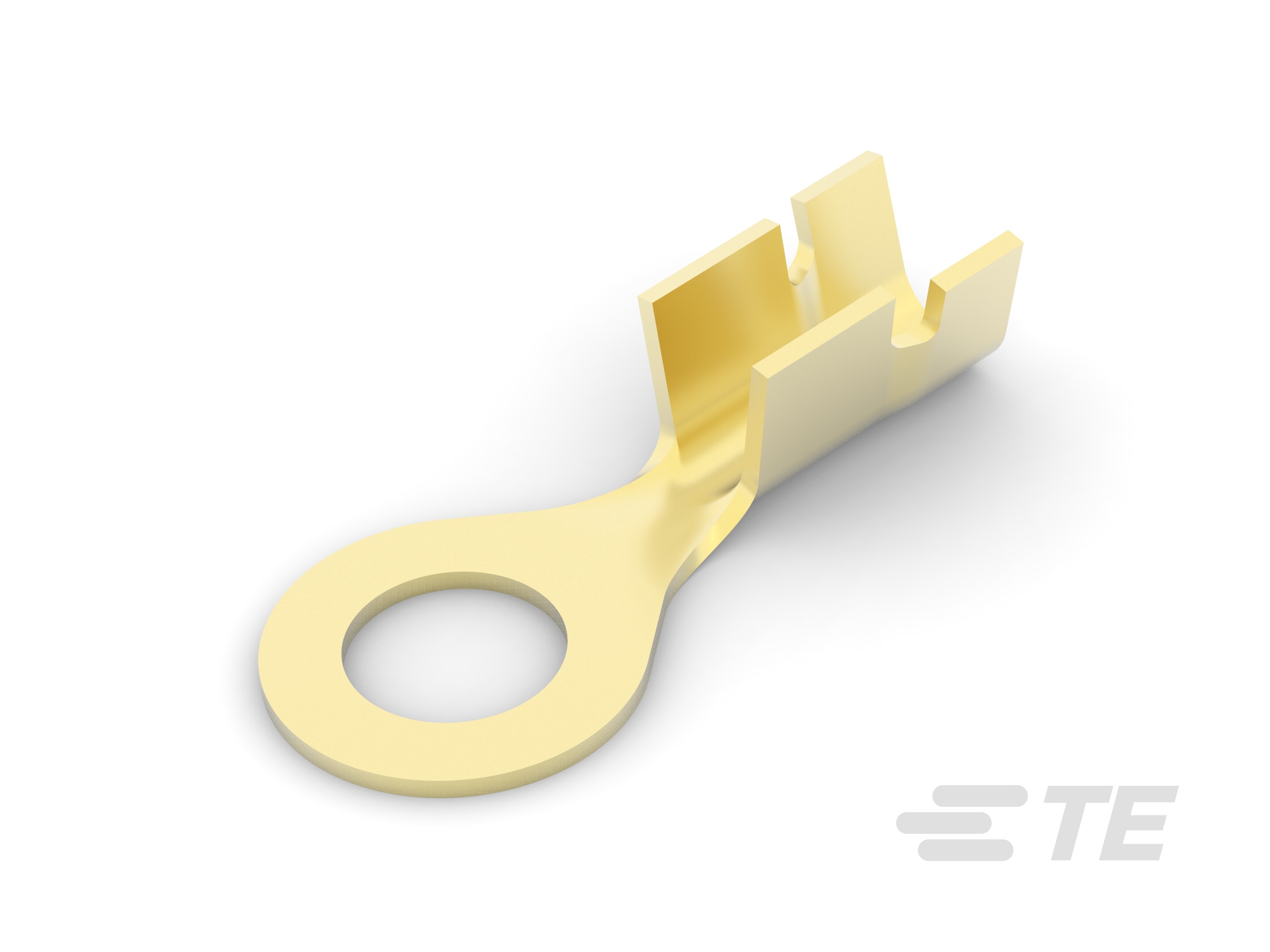

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : 10

• Sealable : No

• Compatible With Discrete Wire Type : Stranded

• Wire Insulation Support Retention Type : Insulation Support

• Number of Holes : 1

• Contact Base Material : Brass

• Barrel Type : Open

• Terminal Orientation : Straight

• Terminal Plating Material : Unplated

• Contact Underplating Material : None

• Wire Insulation Support : With

• Compatible Insulation Diameter (Min) (in): .1

• Wire Size (AWG): 18 – 14

• Wire Size (mm²): .823 – 2.08

• Wire Size (CMA): 1624 – 4106

• Stud Diameter (mm): 4.82

• Stud Diameter (in): .189, .19

• Tongue Thickness : .51 mm [ .02 in ]

• Product Length : 21.84 mm [ .86 in ]

• Barrel Inside Diameter (mm): 2.03, 2.92

• Barrel Inside Diameter (in): .09, .115

• Compatible Insulation Diameter (Max) : 3.56 mm [ .14 in ]

• Compatible Insulation Diameter Range : 2.54 – 3.56 mm [ .1 – .14 in ]

• Insulation Option : Uninsulated

• Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]

• Compatible With Wire Base Material : Copper

• Government Qualified Terminal : No
