Please Note: Use the Product Drawing for all design activity.

• Shape Description : Circular/Oval

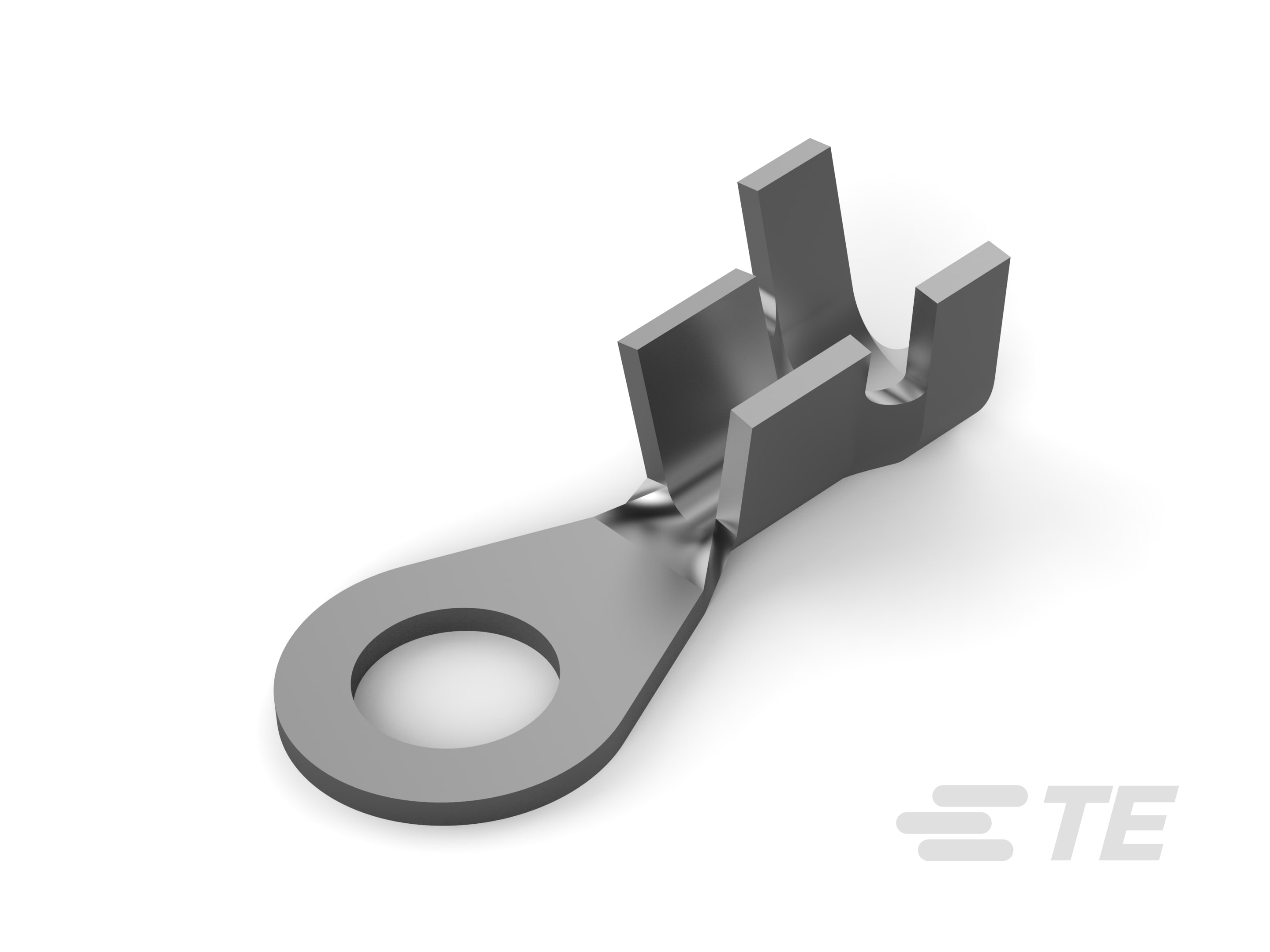

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : 10

• Sealable : No

• Compatible With Discrete Wire Type : Stranded

• Wire Insulation Support Retention Type : Insulation Support

• Compatible Insulation Diameter (Min) (in): .14

• Wire Size (AWG): 18 – 14

• Wire Size (mm²): .8 – 2.08

• Wire Size (CMA): 1624 – 4106

• Stud Diameter (mm): 5

• Stud Diameter (in): .19, .197

• Tongue Thickness : .76 mm [ .03 in ]

• Product Length : 19.81 mm [ .78 in ]

• Barrel Inside Diameter (mm): 1.77, 4.31

• Barrel Inside Diameter (in): .17, .07

• Compatible Insulation Diameter (Max) : 4.83 mm [ .19 in ]

• Compatible Insulation Diameter Range : 3.56 – 4.83 mm [ .14 – .19 in ]

• Contact Base Material : Brass

• Barrel Type : Open

• Terminal Orientation : Straight

• Terminal Plating Material : Tin

• Contact Underplating Material : Nickel

• Packaging Quantity : 8000

• Packaging Method : Strip/Reel

• Government Qualified Terminal : No

• Wire Insulation Support : With

• Number of Holes : 1

• Insulation Option : Uninsulated

• Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]

• Compatible With Wire Base Material : Copper
