62262-1

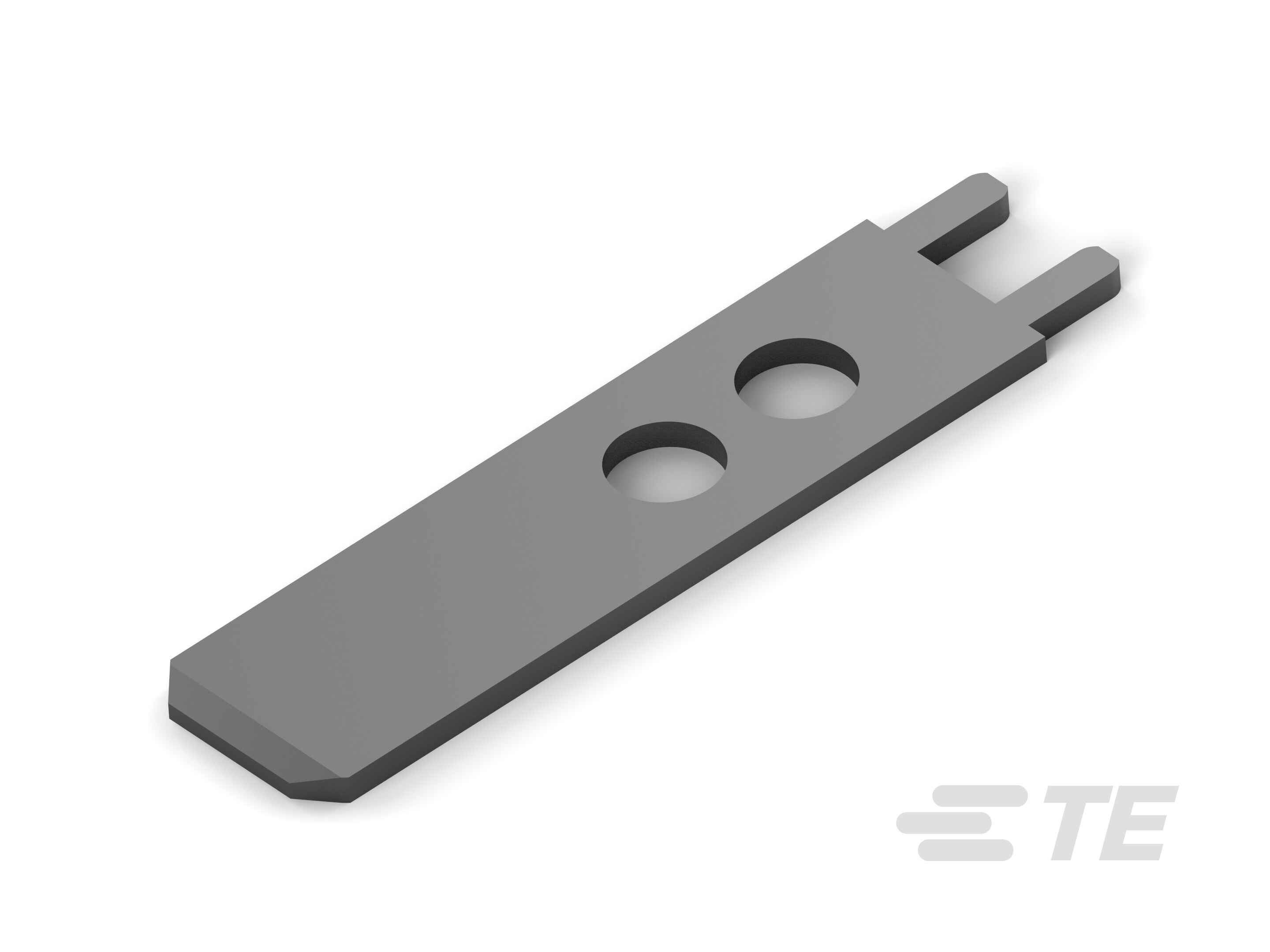

Tab, 6.35 mm [.25 in] Tab Width, Through Hole - Solder, Tin Plating, Bag, Terminates To Printed Circuit Board, Straight, FASTON 250, PCB Terminals
62262-1
Tab, 6.35 mm [.25 in] Tab Width, Through Hole - Solder, Tin Plating, Bag, Terminates To Printed Circuit Board, Straight, FASTON 250, PCB Terminals
-
- FASTON
- FASTON 250
- TE Internal #: 62262-1
- TE Internal Description: 250 FASTON TAB TPBR
-
PCB Terminal Type : Tab
-
PCB Thickness (Recommended) : 1.57 – 2.39 mm [ .062 – .094 in ]
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
-
Profile Height from PCB : 23.7 mm [ .937 in ]
Documents
Product Drawings
- TAB, FASTON, .250 SERIES ENG_CD_62262_F_baseFilename.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_62262-1_H_c-62262-1-h-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_62262-1_H_c-62262-1-h.2d_dxf.zip English
- ENG_CVM_CVM_62262-1_H_c-62262-1-h.3d_igs.zip English
- ENG_CVM_CVM_62262-1_H_c-62262-1-h.3d_stp.zip English
