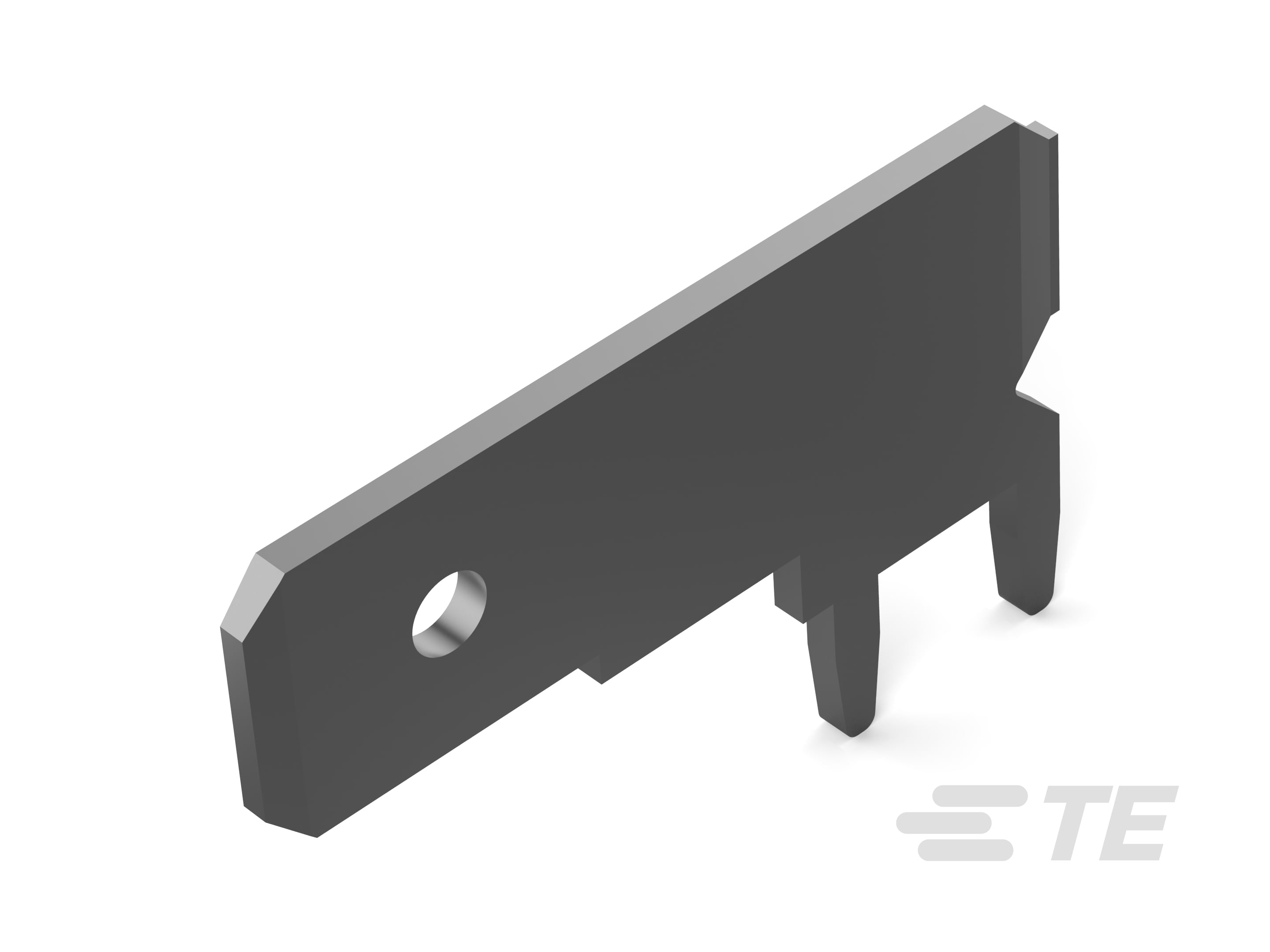

63951-1
Tab, 6.35 mm [.25 in] Tab Width, 1.4 mm [.055 in] PCB Hole, Through Hole - Solder, Tin Plating, Box, FASTON 250, PCB Terminals
63951-1
Tab, 6.35 mm [.25 in] Tab Width, 1.4 mm [.055 in] PCB Hole, Through Hole - Solder, Tin Plating, Box, FASTON 250, PCB Terminals
-
- FASTON
- FASTON 250
- TE Internal #: 63951-1
- TE Internal Description: 250 FASTON TAB TPBR
-
PCB Terminal Type : Tab
-
PCB Thickness (Recommended) : 1.57 mm [ .062 in ]
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .8 mm [ .031 in ]
-
PCB Hole Diameter : 1.4 mm [ .055 in ]
Documents
Product Drawings
- TAB, FASTON, 6.35 [.250] SERIES ENG_CD_63951_L2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_63951-1_S.pdf 3D
- Customer View Model ENG_CVM_CVM_63951-1_S.2d_dxf.zip English
- ENG_CVM_CVM_63951-1_S.3d_igs.zip English
- ENG_CVM_CVM_63951-1_S.3d_stp.zip English
Datasheets & Catalog Pages
- FASTON PCB Tabs and Receptacles ENG_CS_82004_FASTON_PCB_Tabs_Receptacles_0914.pdf English
- ENG_CS_82159_PCB_TERMINALS_AND_DISCONNECTS_1207.pdf English
Product Specifications
- Application Specification ENG_SS_114-2115_F3.pdf English
- Product Specification ENG_SS_108-106496_A1.pdf English
Agency Approvals
- CSA Certificate ENG_AAD_CSA_164196_6227_1080983_A.pdf English
- ENG_AAD_CSA_CERT_1080983_B.pdf English
