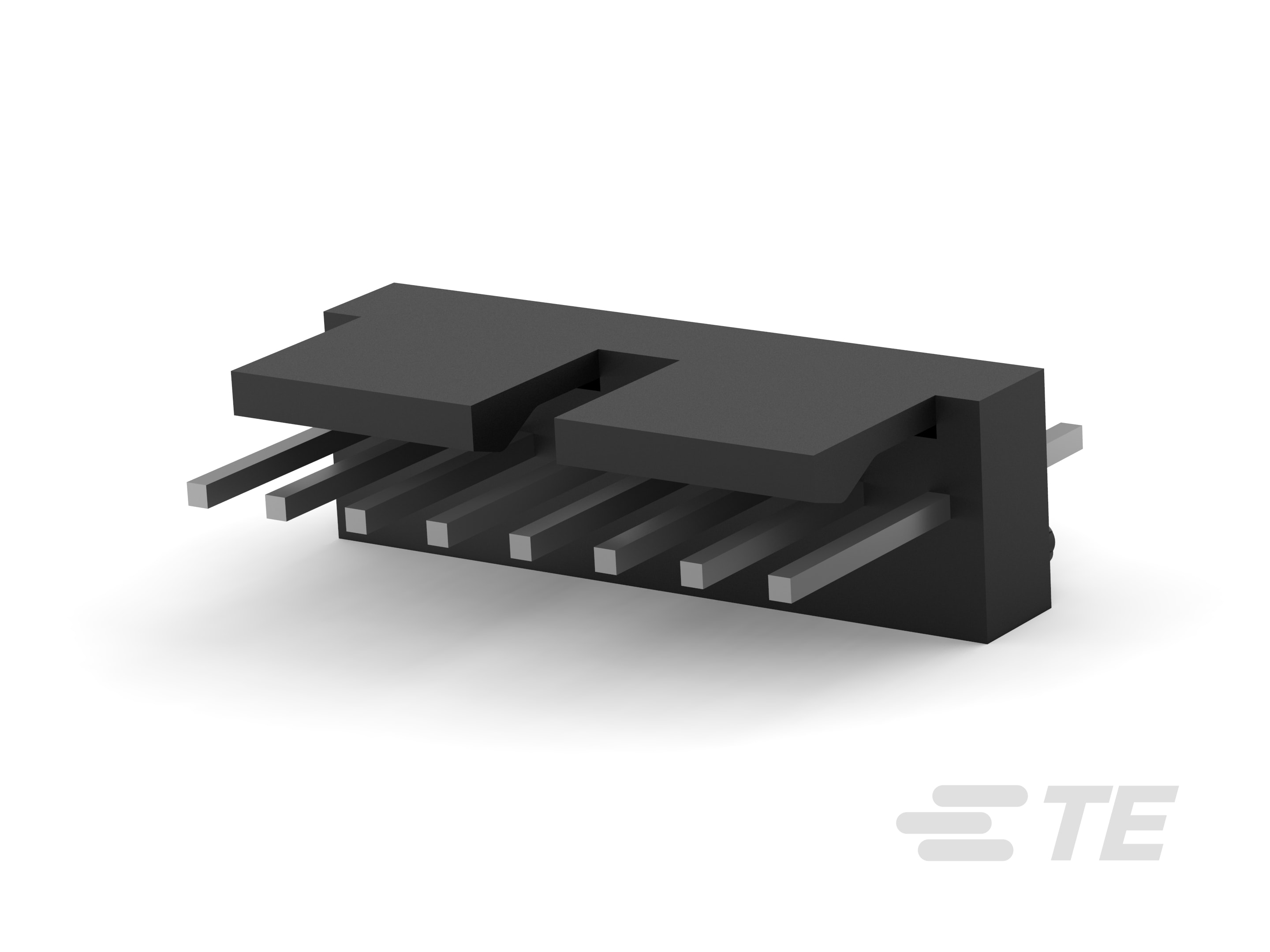

• Housing Material : Polyester - GF

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Contact Mating Area Plating Material Finish : Matte

• PCB Contact Termination Area Plating Material : Tin-Lead

• Contact Base Material : Copper Alloy

• Contact Mating Area Length : 7.37 mm [ .29 in ]

• Contact Layout : Inline

• Contact Shape & Form : Square

• PCB Contact Termination Area Plating Material Thickness : 3.81 – 6.3 µm [ 150 – 250 µin ]

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Mating Area Plating Material Thickness : 3.81 – 6.3 µm [ 150 – 250 µin ]

• PCB Contact Termination Area Plating Material Finish : Bright

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Tin-Lead

• Contact Type : Pin

• Contact Current Rating (Max) (A): 5

• Square Termination Post & Tail Dimension : .64 mm [ .025 in ]

• Termination Post & Tail Length : 3.43 mm [ .135 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Alignment Type : Peg

• PCB Mount Retention Type : Tab

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mating Retention Type : Friction Lock

• Panel Mount Feature : Without

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Compatible With Approved Standards Products : UL E28476, CSA LR7189

• Compatible With Agency/Standards Products : UL, CSA

• UL Flammability Rating : UL 94V-0

• Packaging Quantity : 250

• Packaging Method : Box, Bag

• Connector Height : 8.81 mm [ .34 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Operating Voltage (VAC): 250

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Partially Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Mount Orientation : Vertical

• Number of Positions : 8

• Number of Rows : 1

• Primary Product Color : Black

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Signal
