66505-4

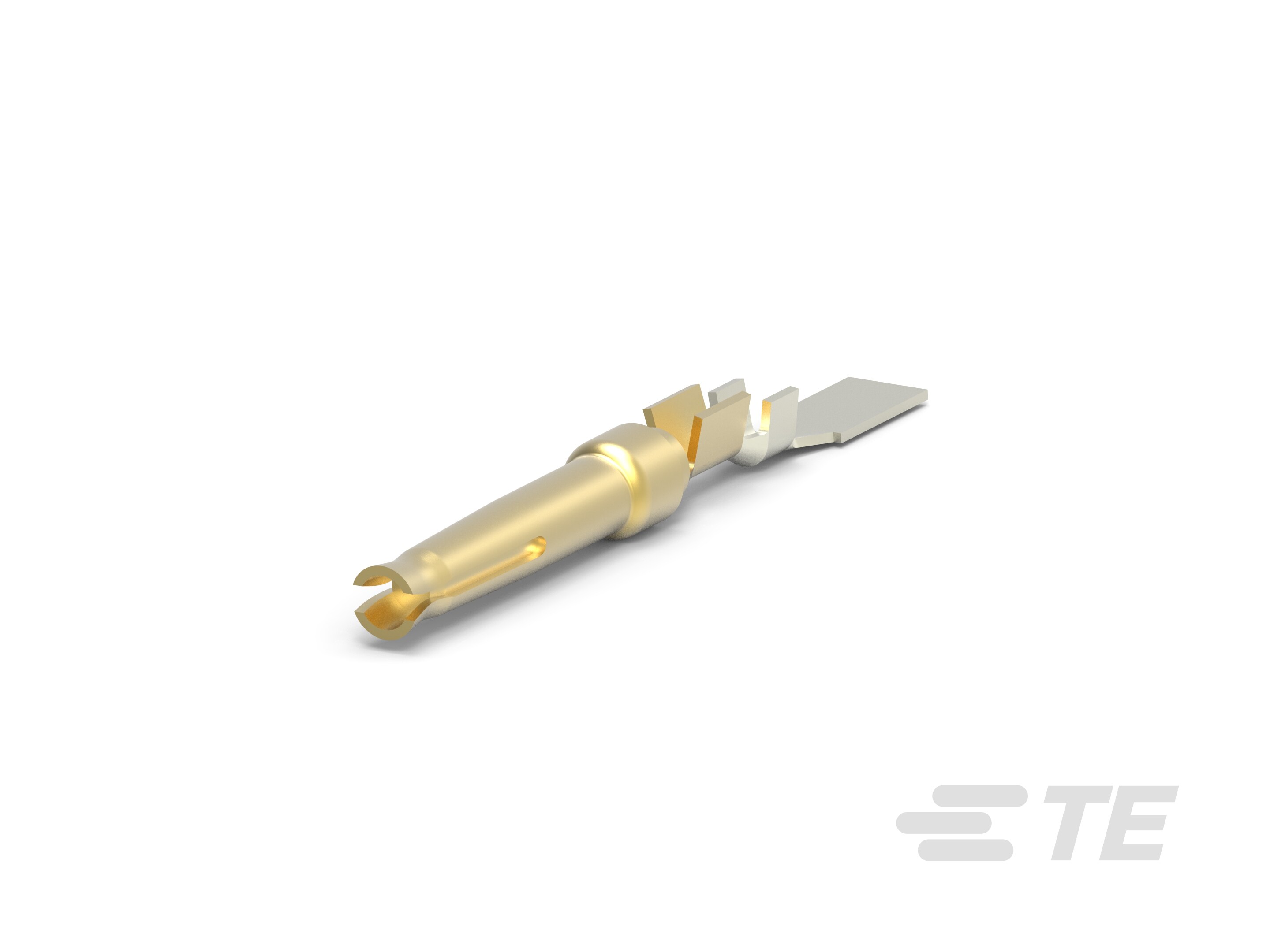

Socket Contact, Gold Flash, Snap-In Contact Retention, Size 20 Contact Size, 28 – 24 AWG Wire Size, .08 – .2 mm² Wire Size, Crimp, Phosphor Bronze
66505-4
Socket Contact, Gold Flash, Snap-In Contact Retention, Size 20 Contact Size, 28 – 24 AWG Wire Size, .08 – .2 mm² Wire Size, Crimp, Phosphor Bronze
-
- AMPLIMITE
- TE Internal #: 66505-4
- TE Internal Description: HD 20 DF SOCKET PLTD
- Alias #: 4-16211-7544
- All D-Sub Conn Contacts: Socket, Phosphor Bronze, Signal, Size 20 (51)
-
Packaging Method : Reel
-
Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
-
Wire Size (AWG): 28 – 24
-
Wire Insulation Support : With
-
Product Terminates To : Wire & Cable
Documents
Product Drawings
- SOCKET CONTACT, SIZE 20 DF, 24-28 AWG, W/ .030-.040 DIA INSULATION SUPPORT, ENG_CD_66505_AT1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_66505-4_CP_c-66505-4-cp-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_66505-4_CP_c-66505-4-cp.2d_dxf.zip English
- ENG_CVM_CVM_66505-4_CP_c-66505-4-cp.3d_igs.zip English
- ENG_CVM_CVM_66505-4_CP_c-66505-4-cp.3d_stp.zip English
Datasheets & Catalog Pages
- Signal Contacts ENG_CS_65910_Signal_Contacts_0707.pdf English
- ENG_CS_82068_AMPLIMITE_Cable_Connectors_0412.pdf English
- AMPLIMITE Cable Connectors and Shielding Hardware Kits QRG ENG_DS_1-1773963-5_AMPLIMITE_Cable_Conn_QRG_1018.pdf English
Product Specifications
- Application Specification ENG_SS_114-10000_V.pdf English
- ENG_SS_114-40030_D.pdf English
- Qualification Test Report ENG_SS_501-99_C.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-7514_E.pdf English
