Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Barrel Outside Diameter : 60 mm [ 2.36 in ]

• Barrel Inside Diameter : 37.5 mm [ 1.47 in ]

• Compatible Conductor Range (AWG/kcmil): 1578 – 1578

• Compatible Conductor Cross-Section Range (mm²): 800

• Compatible With Approved Standards Products : IEC 61238-1 Class A, Designed to Meet NFC 63-061 Class A Requirements

• Product Availability : China, Europe, Middle East & Africa, Americas

• Installation Technology : Crimp

• Voltage Class (kV): ≤ 42

• Compatible Conductor Material : Aluminum

• Primary Product Material : Copper, Aluminum

• Palm Terminal Material : Copper

• Crimp Type : Deep Step Indentation

• Power Component Application Type : Outdoor, Indoor

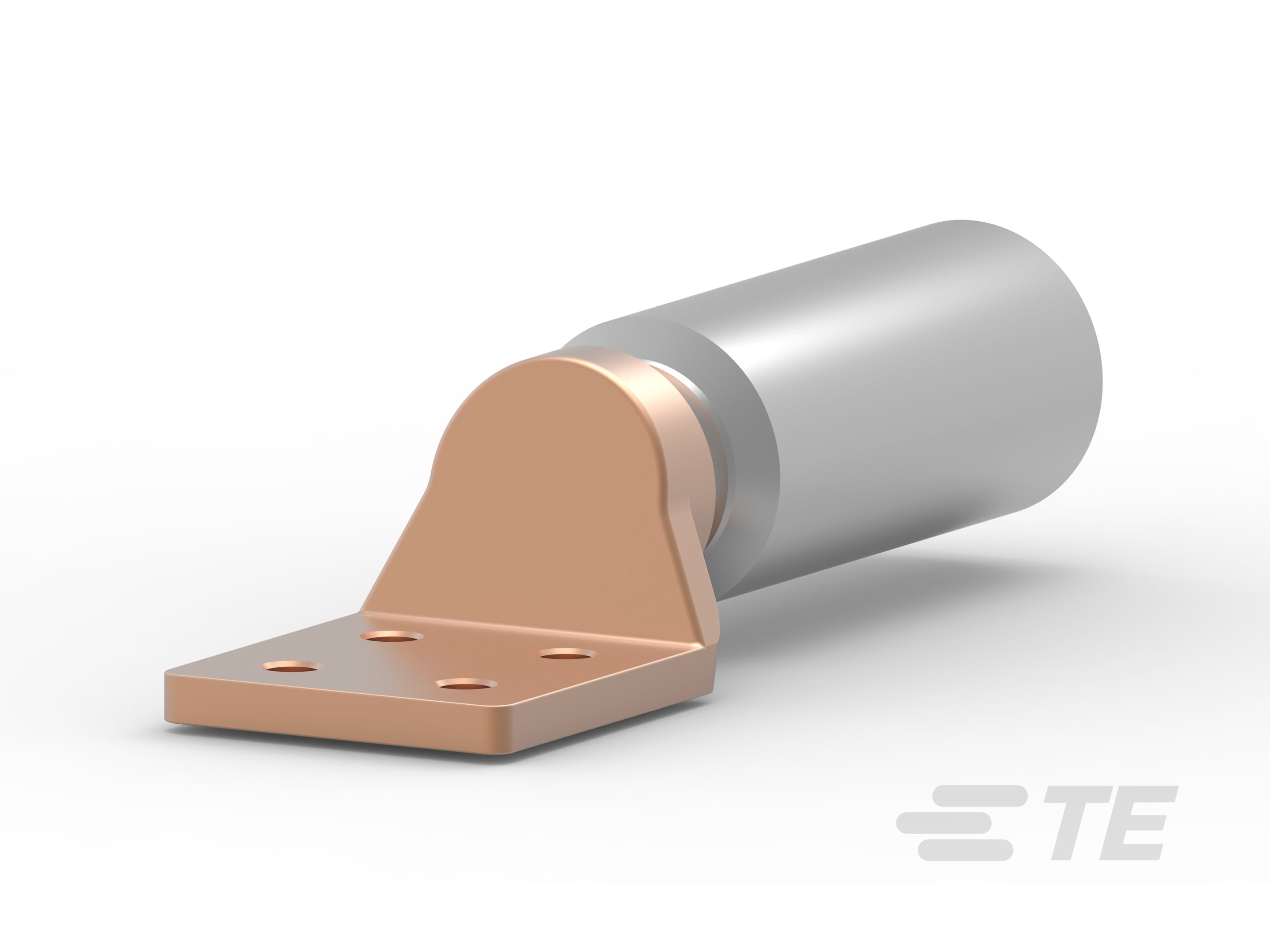

• Compression Connector Product Type : Terminal Lug
