735410

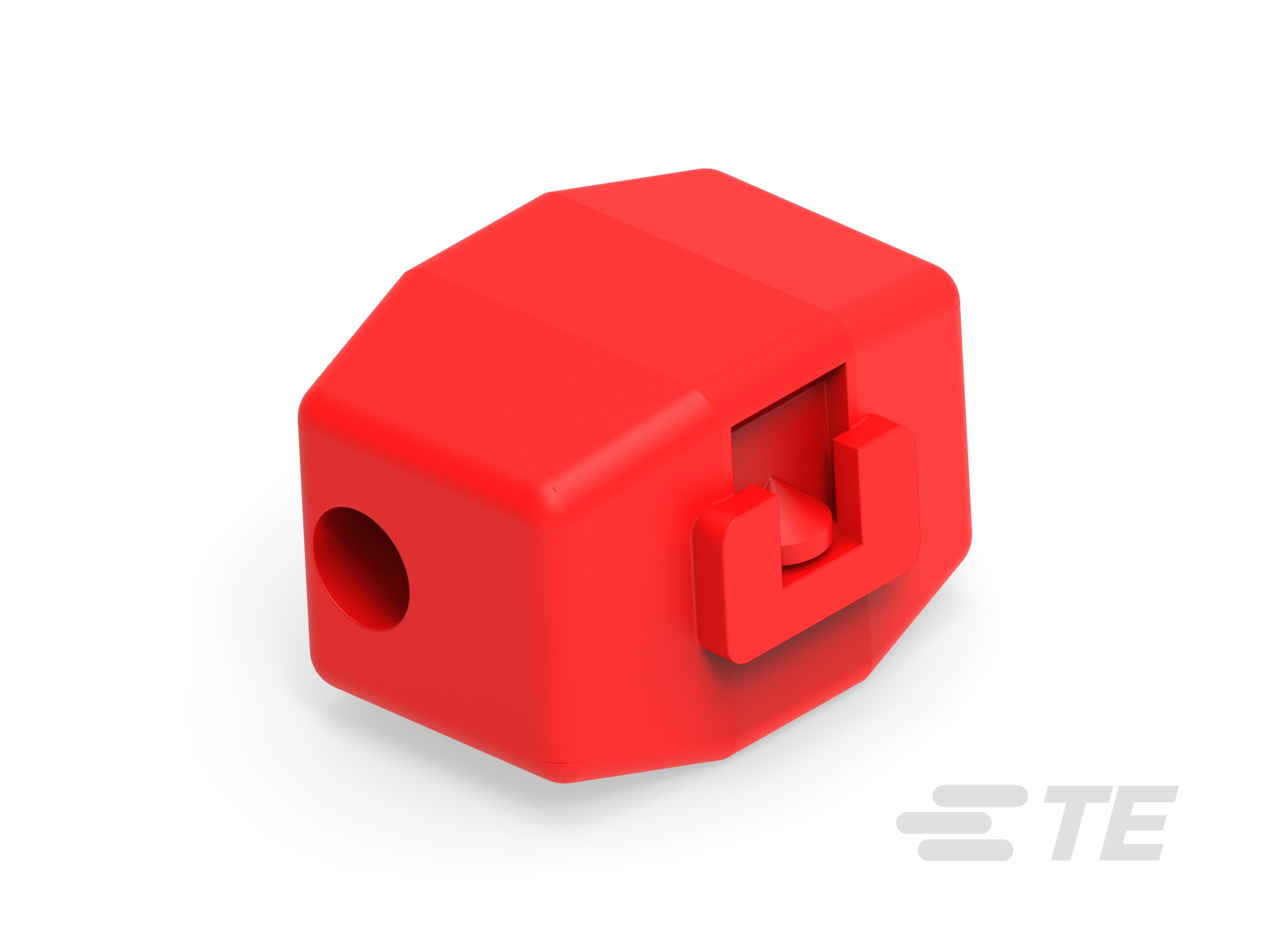

Tap Splice, 20 – 18 AWG, .5 – .75 mm² Wire, 642 – 1624 CMA, Brass, Red, 34.9 mm [1.374 in] Length, Bag, Stranded Wire, Discrete Wire, ELECTRO-TAP
735410
Tap Splice, 20 – 18 AWG, .5 – .75 mm² Wire, 642 – 1624 CMA, Brass, Red, 34.9 mm [1.374 in] Length, Bag, Stranded Wire, Discrete Wire, ELECTRO-TAP
-
- ELECTRO-TAP
- TE Internal #: 735410
- TE Internal Description: ELECTRO TAP ASSY
- Alias #: F42254-000 AMPS-0-0735410-0
-
Splice Type : Tap Splice
-
Wire Size (AWG): 20 – 18
-
Wire Size (mm²): .5 – .75
-
Sealable : No
-
Compatible Insulation Diameter Range : 4 mm [ .157 in ]
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_735410_C2.pdf English
- 3D_CVM_CVM_735410_E.pdf 3D
- Customer View Model ENG_CVM_CVM_735410_E.2d_dxf.zip English
- ENG_CVM_CVM_735410_E.3d_igs.zip English
- ENG_CVM_CVM_735410_E.3d_stp.zip English
- ENG_CVM_735410_C2.3d_igs.zip English
- ENG_CVM_735410_C2.3d_stp.zip English
- ENG_CVM_735410_C2.2d_dxf.zip English
Datasheets & Catalog Pages
- ELECTRO-TAP CABLE CONNECTOR/SPLICE ENG_DS_1-1773978-8_1910.pdf English
