Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

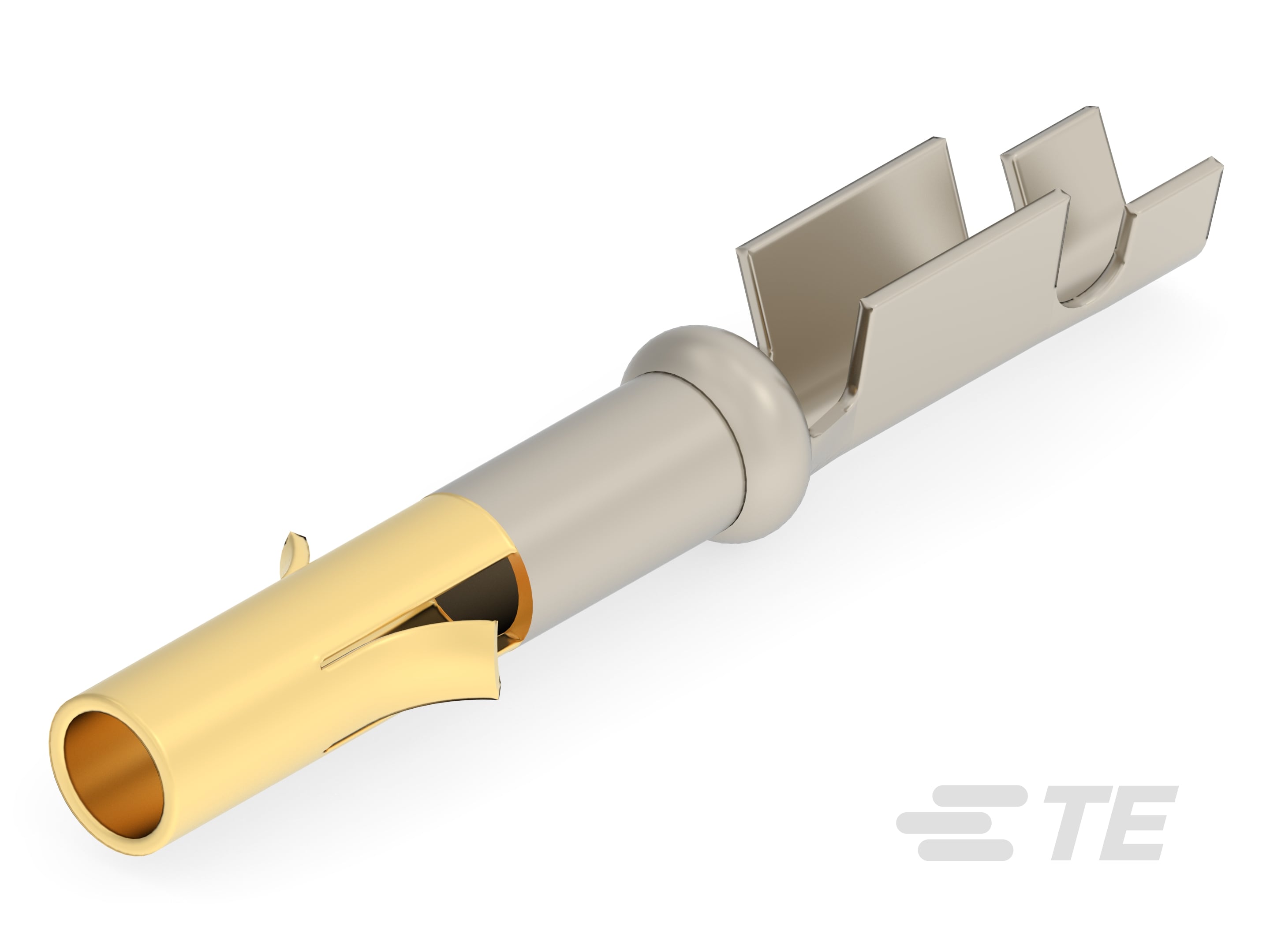

• Barrel Type : Closed

• Wire Contact Termination Area Plating Thickness : 1.27 µm [ 50 µin ]

• Wire Contact Termination Area Plating Material Finish : Matte

• Contact Mating Area Plating Material Thickness : .76 µm [ 30 µin ]

• Contact Fabrication : Stamped & Formed

• Contact Underplating Material Thickness : 1.27 µm [ 1.27 µin ]

• Mating Pin Diameter : 1.98 mm [ .077 in ]

• Contact Orientation : Straight

• Contact Underplating Material : Nickel

• Contact Type : Socket

• Contact Mating Area Plating Material : Gold

• Wire Contact Termination Area Plating Material : Gold Flash

• Contact Retention Within Housing : With

• Contact Base Material : Phosphor Bronze

• Contact Current Rating (Max) (A): 9

• Compatible Insulation Diameter Range : .64 – 1.27 mm [ .025 – .05 in ]

• Wire Size (AWG): 26 – 24

• Wire Size (mm²): .12 – .2

• Wire Size (CMA): 236.823 – 394.705

• Packaging Method : Bag & Box

• Packaging Quantity : 1000

• Wire Insulation Support : With

• Operating Voltage (VAC): 250

• Operating Voltage (VDC): 250

• Sealable : No

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire & Cable

• Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]

• Circuit Application : Power & Signal
