794617-6

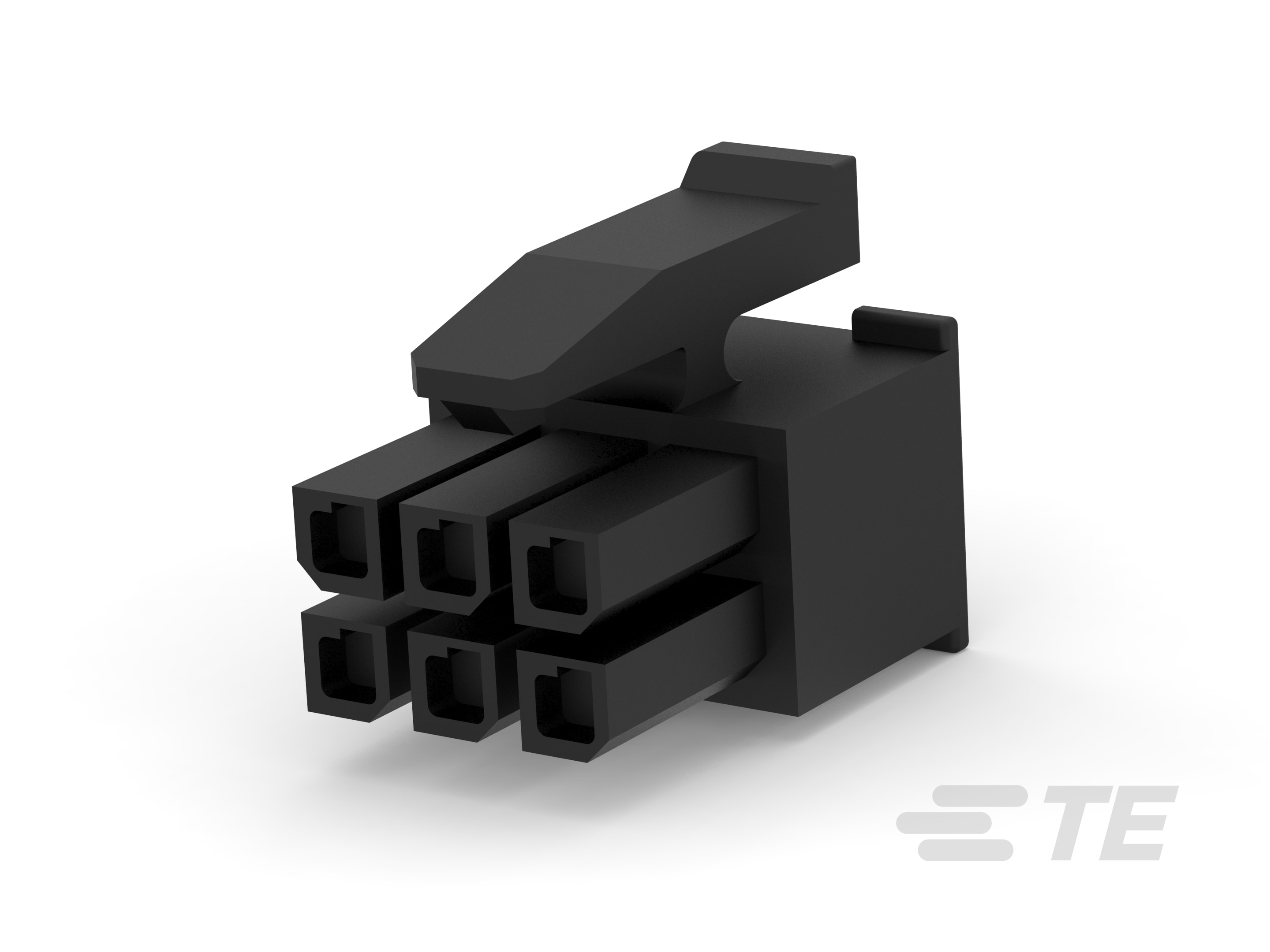

Housing, Receptacle, Crimp, Wire-to-Board / Wire-to-Wire, UL 94V-0, 6 Position, Micro MATE-N-LOK, Rectangular Wire & Cable Connectors & Housings
794617-6
Housing, Receptacle, Crimp, Wire-to-Board / Wire-to-Wire, UL 94V-0, 6 Position, Micro MATE-N-LOK, Rectangular Wire & Cable Connectors & Housings
-
- MATE-N-LOK
- Micro MATE-N-LOK
- TE Internal #: 794617-6
- TE Internal Description: 6POS,MICRO MNL,RCPT HSG
-
Connector Product Type : Housing
-
Connector & Housing Type : Receptacle
-
Termination Method to Wire & Cable : Crimp
-
Connector System : Wire-to-Board, Wire-to-Wire
-
Contact Retention Within Housing : Without
Documents
Product Drawings
- RECEPTACLE HOUSING, 2 TO 24 POSITION,DUAL ROW, MICRO MATE-N-LOK ENG_CD_794617_F6.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_794617-6_J1.pdf 3D
- Customer View Model ENG_CVM_CVM_794617-6_J1.2d_dxf.zip English
- ENG_CVM_CVM_794617-6_J1.3d_igs.zip English
- ENG_CVM_CVM_794617-6_J1.3d_stp.zip English
Datasheets & Catalog Pages
- SOFT_SHELL_PIN_AND_SOCKET_CONNECTORS_CATALOG ENG_CS_82181_SOFTSHELL_HIGH_DENSITY_0508.pdf English
- MICRO MATE-N-LOK CONNECTOR SYSTEM ENG_DS_micro-mate-n-lok-connector-qrg_0721.pdf English
Product Specifications
- Application Specification ENG_SS_114-13000_H.pdf English
- Product Specification ENG_SS_108-1836_E.pdf English
- Qualification Test Report ENG_SS_501-526_B.pdf English
Agency Approvals
- VDE Certificate ENG_AAD_VDE_5001217_1431_0002_A.pdf English
- UL Report ENG_AAD_UL_CERT_E28476_20010627_C1_C-6.pdf English
