8-2384723-5

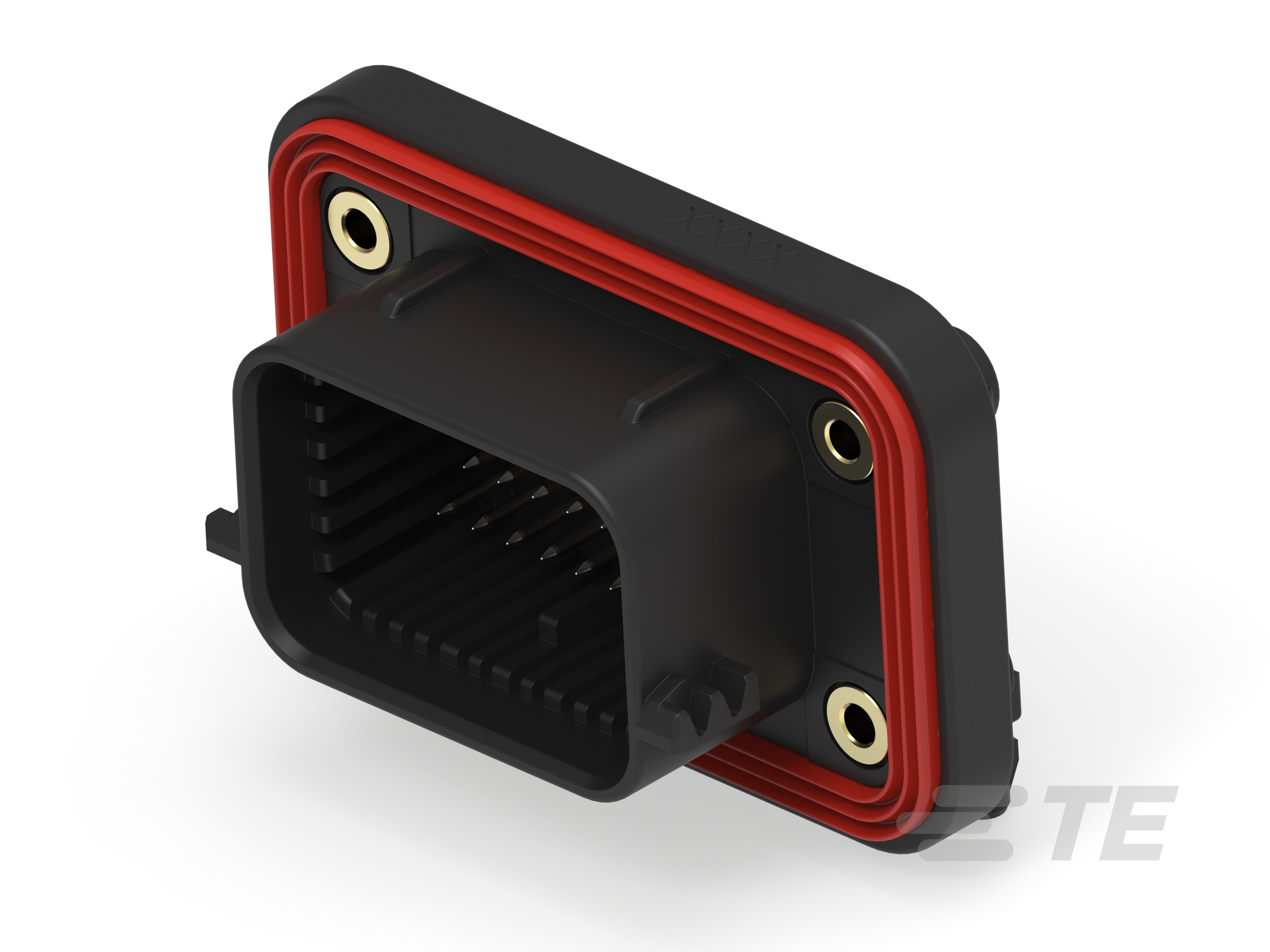

PCB Mount Header, Right Angle, Cable-to-Board, 34 Position, 3 mm [.118 in] Centerline, Silver (Ag), Through Hole - Solder, Sealable, SUPERSEAL 1.0mm
8-2384723-5
PCB Mount Header, Right Angle, Cable-to-Board, 34 Position, 3 mm [.118 in] Centerline, Silver (Ag), Through Hole - Solder, Sealable, SUPERSEAL 1.0mm
-
- SUPERSEAL 1.0mm
- TE Internal #: 8-2384723-5
- TE Internal Description: 34POS,PIN DIA 1.0,HDR ASSY,90DEG
- All SUPERSEAL Connector Headers: 1.0 mm (35)
-
PCB Connector Assembly Type : PCB Mount Header
-
PCB Mount Orientation : Right Angle
-
Connector System : Cable-to-Board
-
Number of Positions : 34
-
Number of Rows : 4
Documents
Product Drawings
- SUPERSEAL 34P RIGHT ANGLE ENG_CD_C-2467892_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_8-2384723-5_A.pdf 3D
- Customer View Model ENG_CVM_CVM_8-2384723-5_A.3d_igs.zip English
- ENG_CVM_CVM_8-2384723-5_A.3d_stp.zip English
- ENG_CVM_CVM_8-2384723-5_A.2d_dxf.zip English
Product Specifications
- Application Specification ENG_SS_114-160483_B.pdf English
- Product Specification ENG_SS_108-160647_A.pdf English
