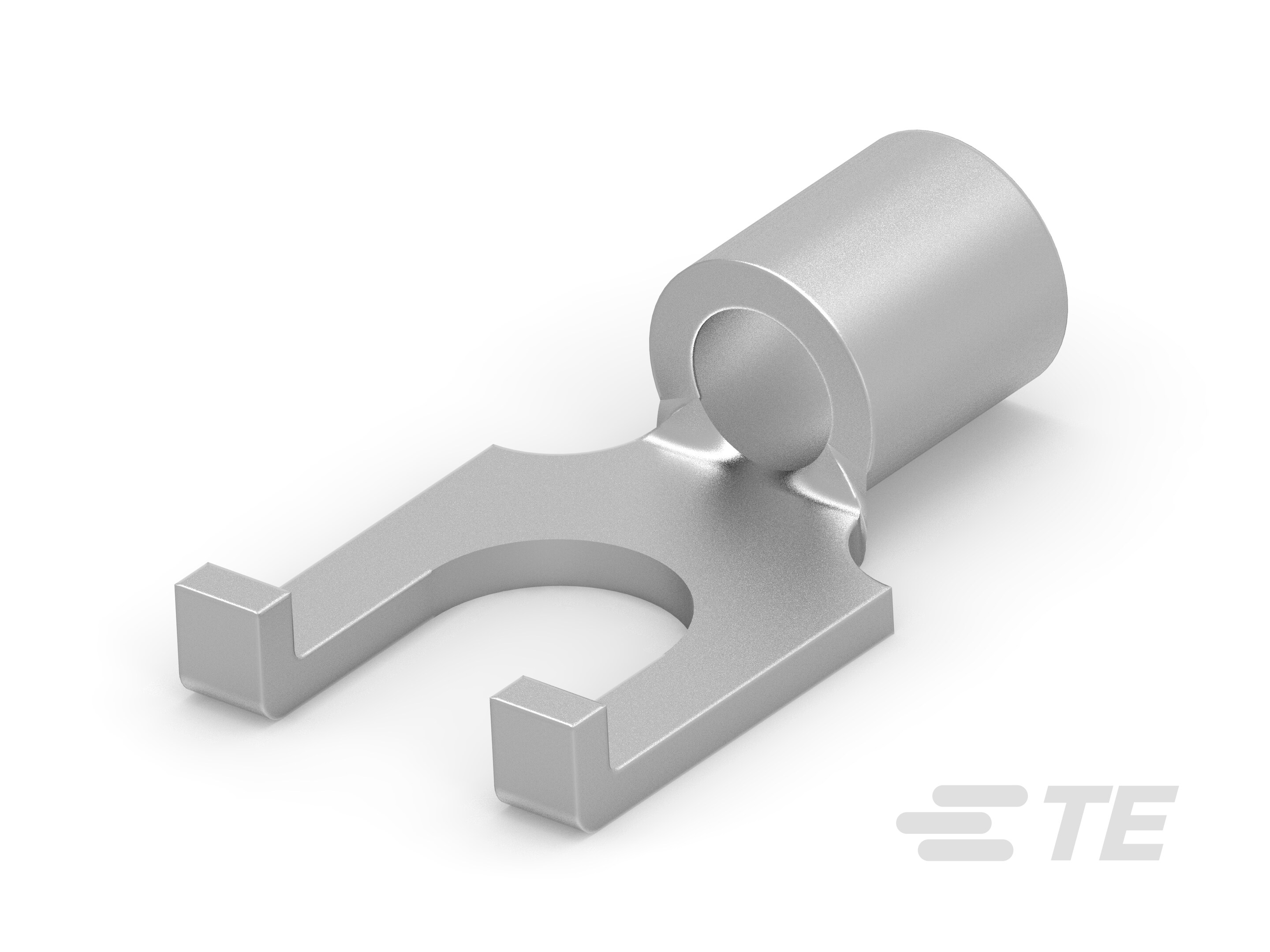

Spade Tongue Terminal, 16 – 14 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Flanged, Tin Plating, Uninsulated
8-320856-1
Spade Tongue Terminal, 16 – 14 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Flanged, Tin Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 8-320856-1
- TE Internal Description: TERMINAL,SOLIS SPD FLG 16-14 8
-
Spade Terminal Type : Spade Tongue Terminal
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.04 – 2.62
-
Wire Size (CMA): 2050 – 5180
-
Stud Size : 8, M4
