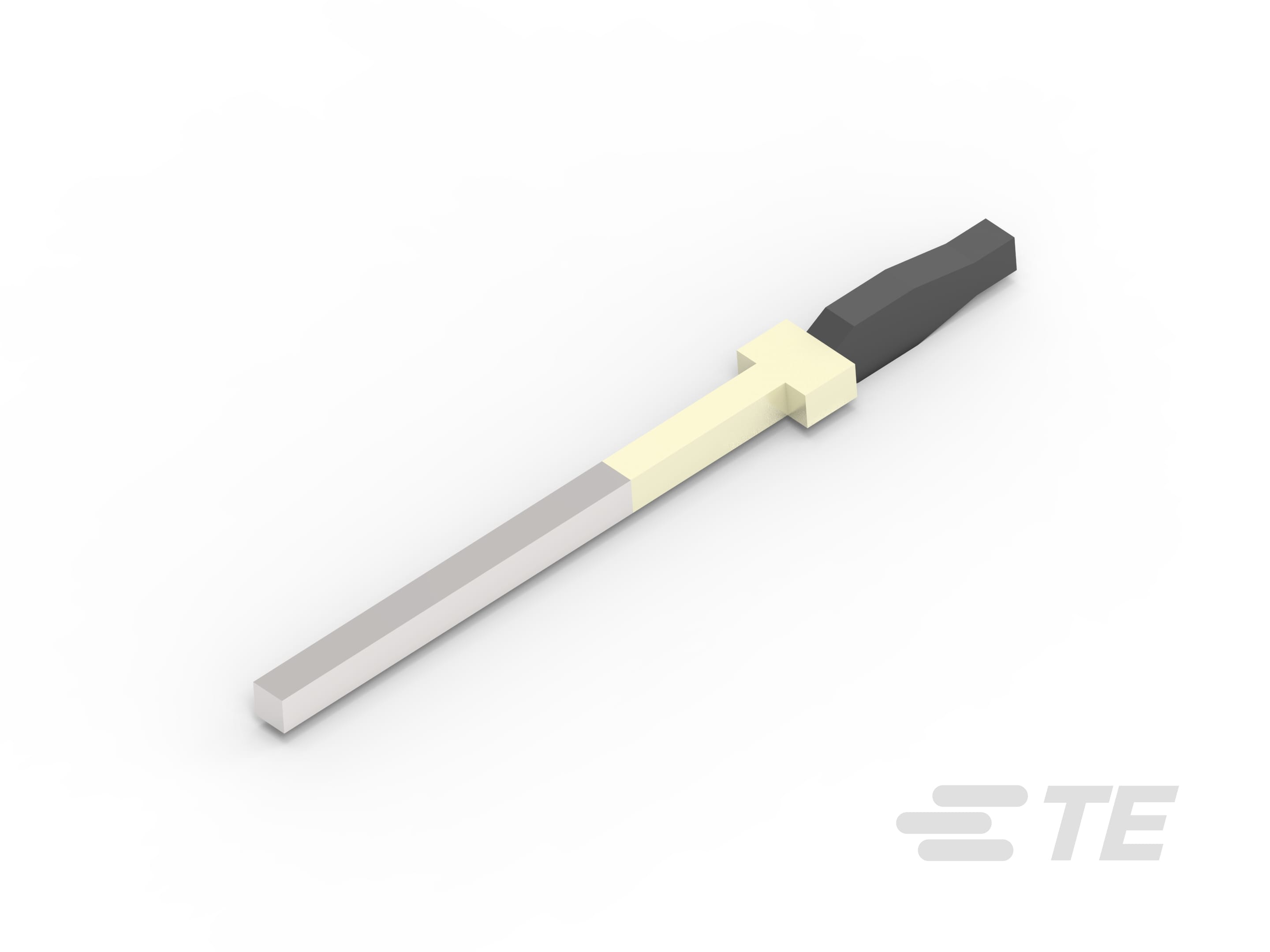

8-963964-8
Tab Terminal, Mating Tab Width .64 mm [.025 in], Tab Thickness .64 mm [.025 in], Silver (Ag) Interface Plating, Press Fit Pin
8-963964-8
Tab Terminal, Mating Tab Width .64 mm [.025 in], Tab Thickness .64 mm [.025 in], Silver (Ag) Interface Plating, Press Fit Pin
-
- MQS
- Press Fit Pin
- TE Internal #: 8-963964-8
- TE Internal Description: MQS STIFTE MAGZ
- All PRESS FIT PIN TERMINALS (64)
-
Terminal Type : Tab
-
Mating Tab Width : .64 mm [ .025 in ]
-
Mating Tab Thickness : .64 mm [ .025 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
-
Interface Plating : Silver (Ag)
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_8-963964-8_A.pdf 3D
- Customer View Model ENG_CVM_CVM_8-963964-8_A.2d_dxf.zip English
- ENG_CVM_CVM_8-963964-8_A.3d_igs.zip English
- ENG_CVM_CVM_8-963964-8_A.3d_stp.zip English
Datasheets & Catalog Pages
- Press-Fit Connections for the Automotive Industry ENG_CS_1654403-1_0616.pdf English
Product Specifications
- Product Specification ENG_SS_108-18643_A2.tif English
- ENG_SS_108-18643_A2.pdf English
