FN3451-75-115-E2FAJRX

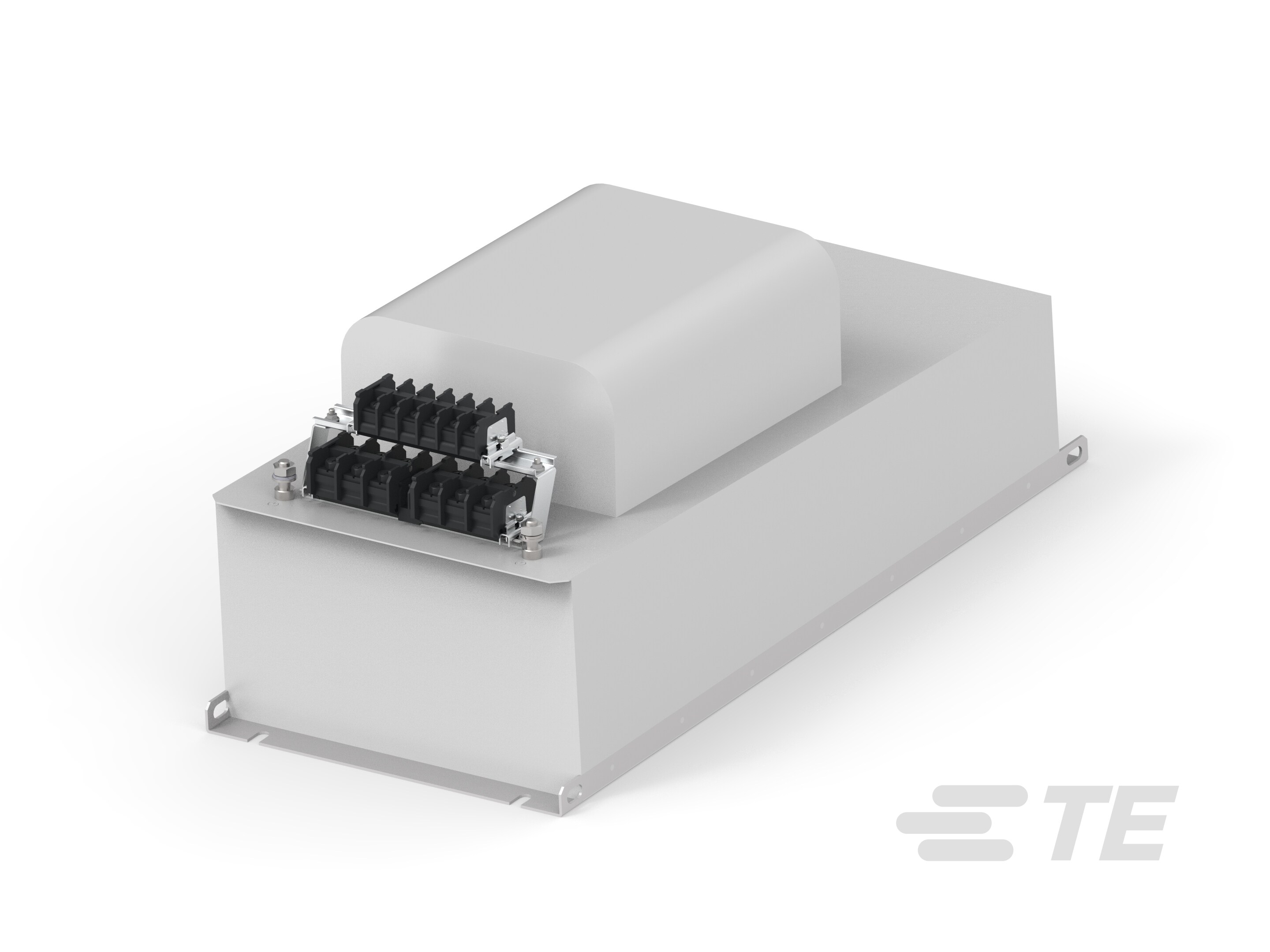

500 VAC, 97 A Motor Drive Input, 75 kW Rated Load, PD3 Pollution Degree, Ring Terminal, UL 94V-2, Schaffner Ecosine Evo, Passive Harmonic Filters
FN3451-75-115-E2FAJRX
500 VAC, 97 A Motor Drive Input, 75 kW Rated Load, PD3 Pollution Degree, Ring Terminal, UL 94V-2, Schaffner Ecosine Evo, Passive Harmonic Filters
-
- Schaffner
- Schaffner Ecosine Evo
- TE Internal #: 816036-SF
- TE Internal Description: FN3451-75-115-E2FAJRX
- All FN3451 (41)
-
Operating Voltage (Max) (VAC): 500
-
Motor Drive Input Current (A): 97
-
Rated Load Power (kW): 75
-
Pollution Degree : PD3
-
Input Termination Type : Ring Terminal
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_816036-SF_T.pdf 3D
- Customer View Model ENG_CVM_CVM_816036-SF_T.2d_dxf.zip English
- ENG_CVM_CVM_816036-SF_T.3d_igs.zip English
- ENG_CVM_CVM_816036-SF_T.3d_stp.zip English
Datasheets & Catalog Pages
- Ecosine Evo FN3451 ENG_DS_FN3451_A.pdf English
Agency Approvals
- UKCA_PHF-Gen2 ENG_AAD_1070468_UKCA_PHF-Gen2_C.pdf English
- CE Declaration of Conformity ENG_AAD_1070447_CE_PHF-Gen2_C.pdf English
