Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

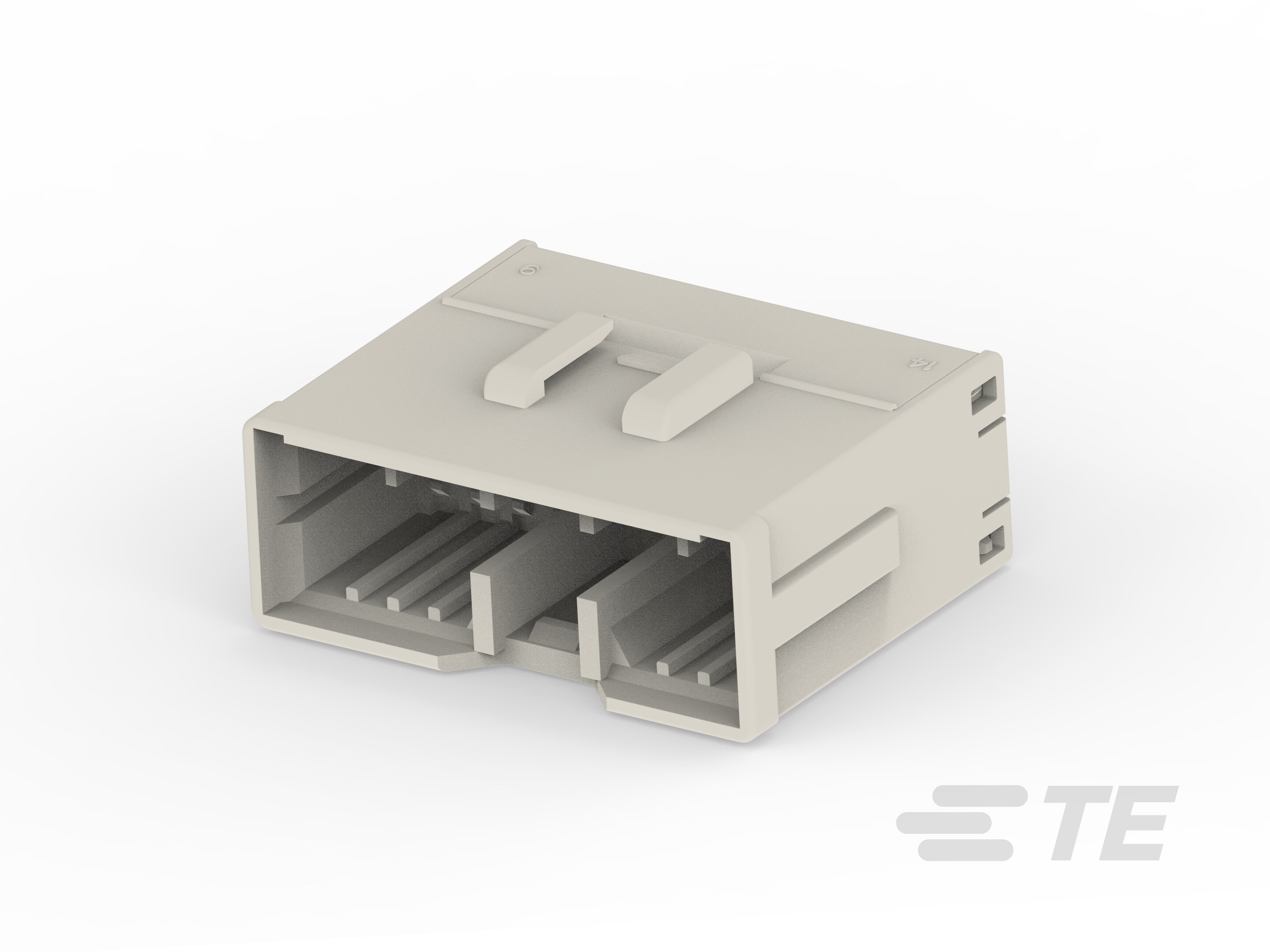

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : Yes

• Connector & Housing Type : Housing for Male Terminals

• Connector System : Wire-to-Wire

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 1.8mm, 6.3mm

• Mating Tab Width (mm): 6.3, 1.8

• Mating Tab Width (in): .25, .071

• Housing Material : PBT

• Centerline (Pitch) (mm): 8.5, 3.5

• Centerline (Pitch) (in): .13, .33

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Bag

• Packaging Quantity : 50

• Connector Height : 16.6 mm [ .65 in ]

• Product Length : 43.1 mm [ 1.69 in ]

• Product Width : 35.5 mm [ 1.39 in ]

• Row-to-Row Spacing : 5.2 mm [ .2 in ]

• Operating Voltage (VDC): 12

• Number of Positions : 13

• Number of Rows : 2

• Primary Product Color : White

• Circuit Application : Power & Signal
